Sony DSRM-E1 - Cb-64;64 P (Front Micon;Edit Micom)

4-18
FRONT MICOM/EDIT MICOM
CB-64/CB-64P
4-19 4-20
DSRM-E1/E1P

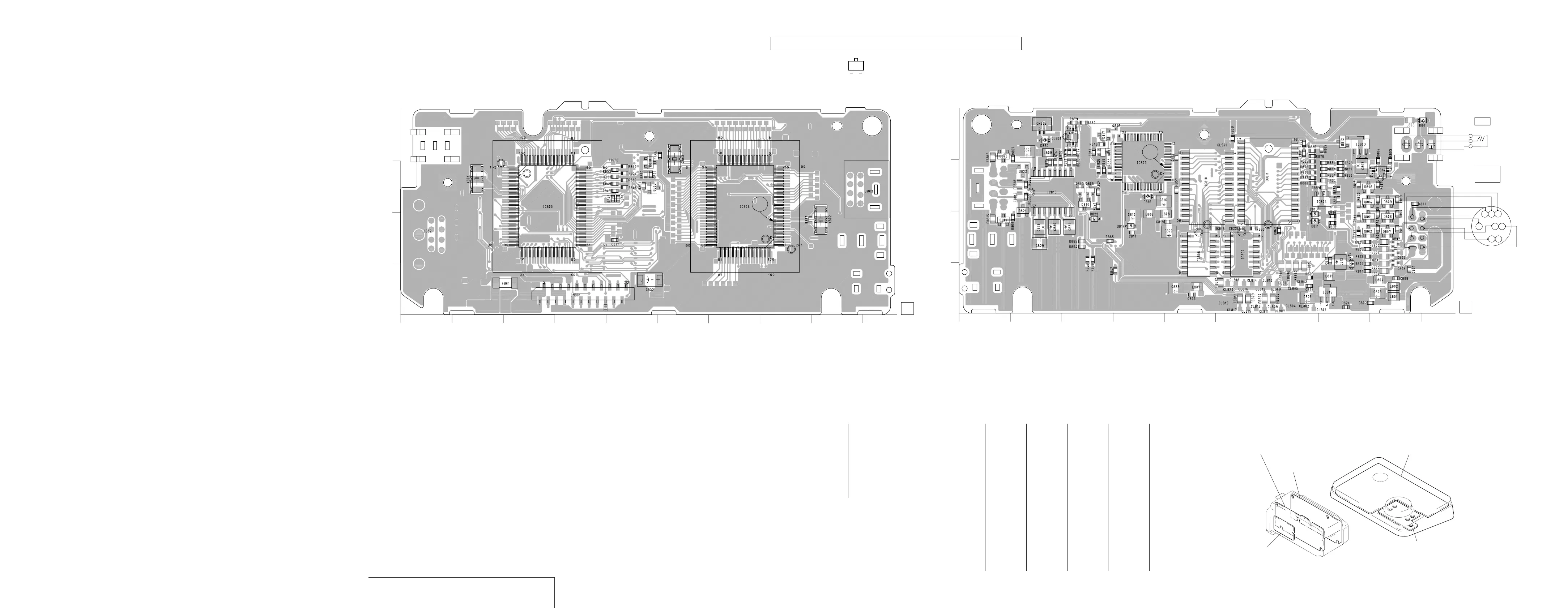

CB-64 (DSRM-E1)/CB-64P (DSRM-E1P) (FRONT MICOM/EDIT MICOM) PRINTED WIRING BOARD
— Ref. No.: 1,000 Series —
• For printed wiring board.
• Chip transistor
C
BE
There are few cases that the part printed on this diagram isn't mounted in this model.
CB-64/64P BOARD (SIDE A)
C817 C-5
C832 D-5
CN801 D-4
F801 D-3
IC805 B-3
IC806 B-7
Q808 B-5
R837 C-8
R844 B-5
CB-64/64P BOARD (SIDE B)
C801 D-9
C802 D-9
C803 D-9
C807 B-8
C808 D-9
C809 B-8
C810 C-4
C811 C-4
C812 D-8
C813 D-8
C814 B-3
C815 B-5
C816 B-4
C818 C-5
C819 C-5
C820 C-5
C821 C-2
C822 C-6
C823 D-5
C824 D-8
C825 D-7
C826 D-7
C833 D-5
CN802 A-2
D801 A-10
D802 C-9
D803 C-9
D805 D-9
D806 C-9
D807 C-9
D808 B-8
D809 B-9
D810 C-3
D811 C-8
D812 A-8
D813 C-8
D814 C-4
D815 C-8
D816 B-4
D817 A-3
D818 C-1
D823 C-3
D824 A-2
FB801 C-9
FB802 C-9
FB803 C-9
FB804 D-9
FB805 D-9
FB806 D-7
FB807 D-6
FB808 D-7
FB809 D-6
FB810 D-7
FB811 D-6
FB812 D-6
FB813 D-7
FB814 D-7
IC803 A-8
IC804 B-8
IC807 C-6
IC808 C-5
IC809 B-4
IC810 B-5
IC811 B-7
IC814 B-9
J801 A-10
J802 C-10
L801 D-9
L802 D-9
L803 A-9
L804 D-9
L805 D-8
L806 C-4
L807 D-5
L808 C-4
Q801 C-8
Q802 C-8
Q803 B-3
Q804 B-8
Q805 B-3
Q806 A-3
Q807 A-3
R801 B-9
R802 A-7
R803 A-9
R804 A-9
R805 C-8
R806 C-9
R807 D-8
R808 C-9
R809 C-9
R810 C-9
R811 C-8
R812 C-8
R813 C-8
R814 D-8
R815 B-9
R817 B-9
R818 B-8
R819 B-9
R821 C-3
R823 B-8
R824 B-3
R825 C-8
R826 B-3
R827 B-8
R828 A-8
R829 B-8
R830 B-8
R831 A-7
R832 B-7
R833 C-8
R834 B-7
R835 B-8
R836 C-8
R838 C-3
R839 C-3
R842 D-4
R843 B-7
R846 A-3
R850 A-6
R855 B-3
R856 B-3
R857 B-5
R862 C-7
R863 C-6
R864 B-7
R865 C-3
R881 A-7
R883 B-7
R885 C-3
R886 A-7
R887 A-7
R888 D-7
R889 B-8
CB-64 (DSRM-E1)
CB-64P (DSRM-E1P)
(FRONT MICOM/EDIT MICOM)
AV-40 (DSRM-E1)
AV-40P (DSRM-E1P)
IN/OUT, AUDIO/VIDEO, OSD/FONT ROM,
Y/CHROMA SEP
CM-58
(CONTROLLER/LED DRIVE)
LI-66
(BACK UP LITHIUM)
JG-36
(JOG SHUTTLE)
(
)
A
B
C
D
1
2
3
4
5
6
7
8
9
10
CB-64/64P BOARD(SIDE A)
12
05
1
C804
1-670-616-
A
B
C
D
1
2
3
4
5
6
7
8
9
10
CB-64/64P BOARD(SIDE B)
12
05
4
7
6
8
35
21
J801
CONTROL
UNIT
LANC
2
1-670-616-
J802
R845 B-5
R847 B-5
R848 B-5
R849 B-5
R851 B-5
R852 B-5
R853 B-5
R854 B-5
R859 A-5
R860 B-5
R861 B-5
X801 B-2
X802 B-9
