Sony DSRM-E1 - CONTROLLER;LED DRIVE) Printed Wiring Board

4-30 4-31 4-32
CONTROLLER/LED DRIVE
CM-58
DSRM-E1/E1P
CM-58 (CONTROLLER/LED DRIVE) PRINTED WIRING BOARD
– Ref. No.: 2,000 series –
• For printed wiring board.
• Chip transistor
C
BE
D108 B-1
D109 C-2
D110 C-3
D111 A-5
D112 A-6
S101 B-7
S102 C-2
S103 B-5
S104 C-3
S105 B-5
S106 B-1
S107 D-2
S108 B-6
S109 B-3
S110 D-3
S111 A-5
S112 A-6
S113 B-2
BZ101 C-4
C101 B-5
C102 C-5
C103 B-5
C104 A-5
C105 B-5
C106 A-6
C107 B-5
C1O8 A-5
C109 A-5
C110 B-4
C111 B-4
C112 A-4
CN101 A-6
CN102 D-4
D101 B-5
D102 B-5
D103 A-5
D104 A-5
D105 B-5
D106 B-6
D107 A-5
FB101 A-6
FB102 A-6
FB103 A-6
FB104 A-6
FB105 A-6
FB106 A-6
IC101 B-5
IC102 B-5
IC103 A-5
IC104 B-4
IC106 A-4
JS103 B-7
JS104 B-6
L101 A-5
Q101 C-4
Q102 B-5
Q103 C-5
Q104 C-5
Q105 C-5
Q106 C-4
Q107 C-4
R101 C-4
R102 C-5
R103 A-5
R104 B-5
R105 B-5
R106 A-5
R107 B-5
R108 B-5
R109 B-5
R110 A-5
R111 B-5
R112 B-5
R113 B-5
R114 A-5
R115 D-4
R116 D-4
R117 D-4
R118 D-4
R119 C-5
R120 B-5
R121 B-4
R122 B-4
R123 B-4
R124 B-4
R125 A-4
R126 A-4
R127 A-3
R128 B-6
R129 A-3
R130 C-6
R131 A-4
R132 A-3
R133 C-5
R134 A-3
R135 A-3
R136 A-3

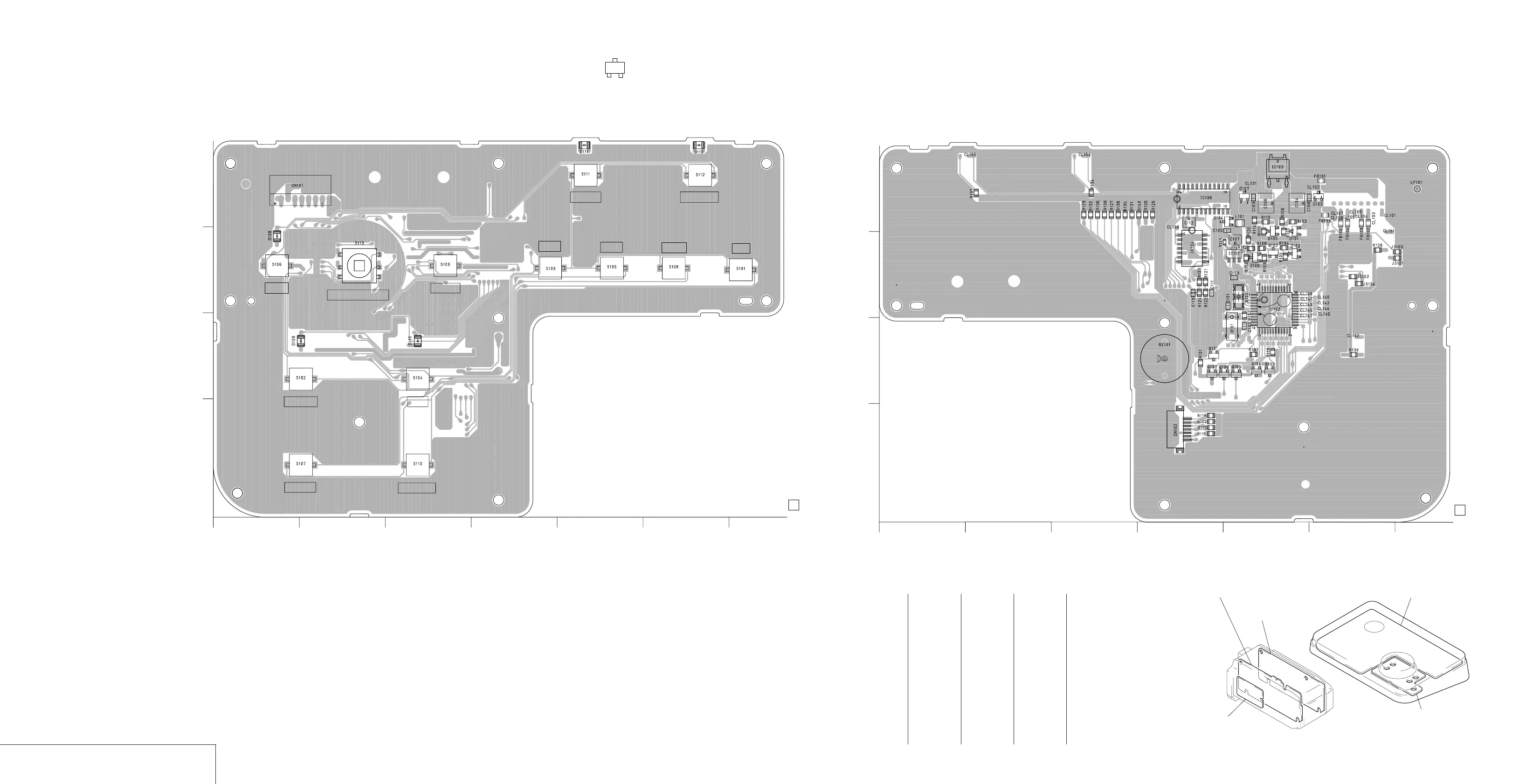

CM-58 BOARD (SIDE A) CM-58 BOARD (SIDE B)
CB-64 (DSRM-E1)
CB-64P (DSRM-E1P)
(FRONT MICOM/EDIT MICOM)
AV-40 (DSRM-E1)
AV-40P (DSRM-E1P)
IN/OUT, AUDIO/VIDEO, OSD/FONT ROM,
Y/CHROMA SEP
CM-58
(CONTROLLER/LED DRIVE)
LI-66
(BACK UP LITHIUM)
JG-36
(JOG SHUTTLE)
(
)
A
B
C
D
1
2
3
4
5
6
7
CM-58 BOARD(SIDE A)
11
MENU
PREVIEW
MARK IN
MARK OUT
EDIT
SEL/PUSH EXECUTE
PLAYER
STOP
PLAY
PAUSE
RECORDER
REC
05
CANCEL
1-670-613-
A
B
C
D
1
2
3
4
5
6
7
CM-58 BOARD(SIDE B)
11
05
1
2
1-670-613-
R137 A-2
R138 A-3
R139 A-3
R140 A-4
R141 B-4
X101 C-5
X102 B-5
