Sony DSRM-E1 - Page 21

4-11 4-12
DSRM-E1/E1P
AUDIO/VIDEO
AV-40 (2/4)/AV-40P (2/4)

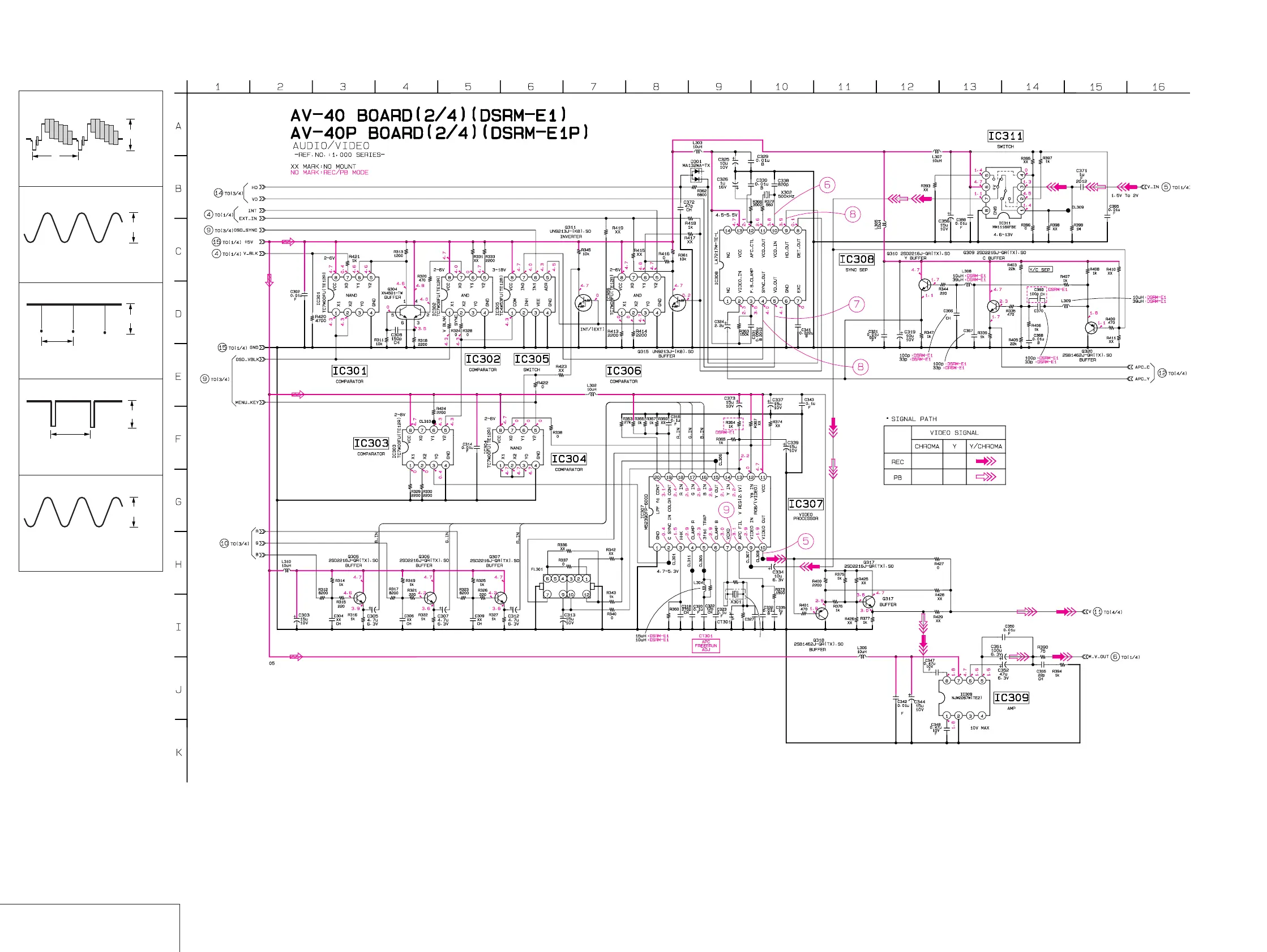

AV-40 (DSRM-E1)/AV-40P (DSRM-E1P) (AUDIO/VIDEO) SCHEMATIC DIAGRAM • See page 4-5 for AV-40/AV-40P BOARD printed wiring board.
AV-40/40P BOARD (2/4)
5
6
IC307 !º
IC308 !º
7
IC308 5
8
IC308 4, 9
9
IC307 7
H
0.7 Vp-p
500 kHz
0.6 Vp-p
60 Hz: DSRM-E1
50 Hz: DSRM-E1P
3.5 Vp-p
15.734 kHz: DSRM-E1
15.625 kHz: DSRM-E1P
3.9 Vp-p
3.58 MHz: DSRM-E1
4.43 MHz: DSRM-E1P
5.0 Vp-p
10V
25V
R432
0
R430
680
XX
10p
R431 0
82k
3.58MHz
4.43MHz
P
P
P
P
P
P
P
:DSRM-E1
:DSRM-E1P
