SERVICE NOTE

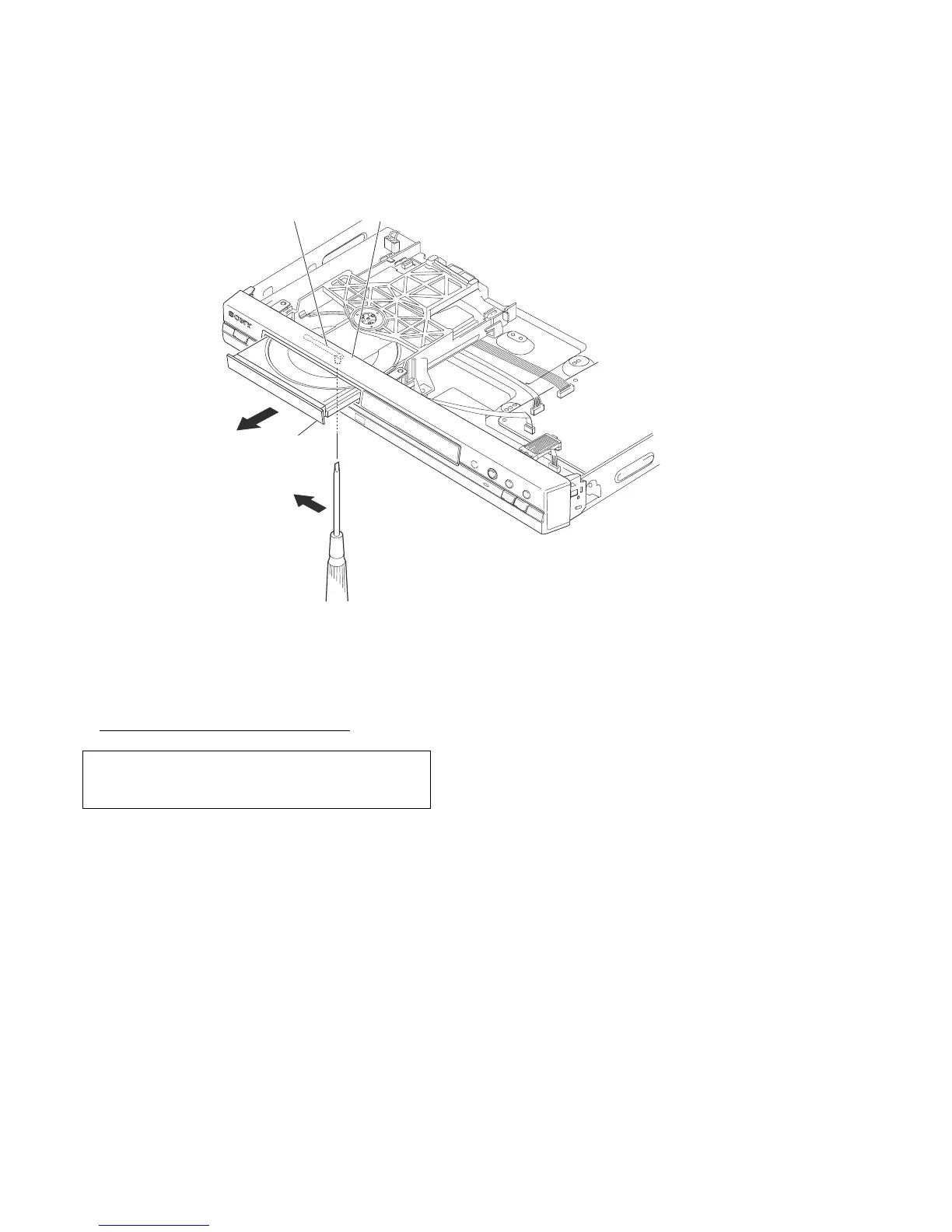

1. DISC REMOVAL PROCEDURE (at POWER OFF)
1) Open dust cover to access to a hole insert a tapering driver into the aperture of the unit bottom, and move the lever of chuck can in the
direction of the arrow A. (See Fig. 1)
2) Draw out the tray in the direction of the arrow B, and remove a disc. (See Fig. 1)
The lever of a zipper cam
Hold
Tray
B
A
Fig. 1.
CAUTION
When handling IF-112 PWB avoid contact with the sharp metal
edge on the top side of Vacuum Fluorescent Display (ND401).
2. Caution Point on the PWB IF-112
To Next Page
