DVP-NS15/NS51P/NS43P/NS53P/K56P

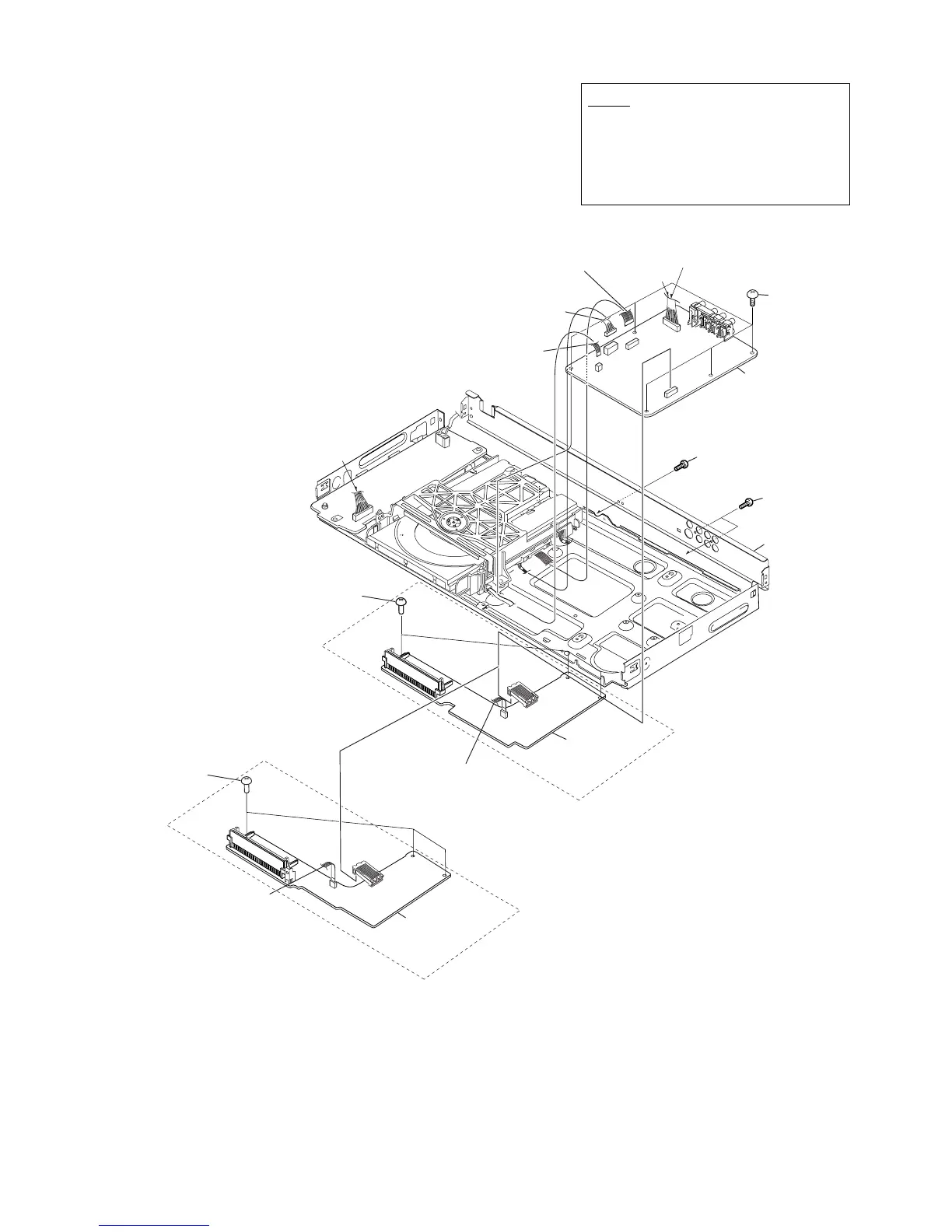

2-5. REAR PANEL, MV BOARD and IF BOARD
a). (NS43P/NS53P/NS51P)
4 FMS-010 Flat Flexible Cable
(CN202, 5P)
6 FMO-009 Flat Flexible Cable
(CN101, 24P)
9 MV-47 Board
5 MD-111 Harness
(CN201, 6P)
7 PM-127 Harness
(CN501, 10P)
8 Five Screws
+BV3 (3-CR)
2 Three Screws
+BV3 (3-CR)
3 Rear Panel
1 Tapping Screw
a
a
o
l
DVP-NS51P
qs IF-144 Board
DVP-NS43P/NS53P
qa FSW-001 Flat Flexible Cable
(CN403, 7P)
q; Three Screws
+BV3 (3-CR)
q; Three Screws
+BV3 (3-CR)
qs IF-145 Board
qa FSW-002 Flat Flexible Cable
(CN403, 9P)
Note:
Caution Point on the
PWB IF-143/IF-144 and IF-145
When handling IF-143/IF-144 and IF-145 PWB
avoid contact with the sharp metal edge on the
top side of Vacuum Fluorescent Display (ND401).
To Next Page
