Sony DVP-NS51P User Manual

DVP-NS15/NS51P/NS43P/NS53P/K56P
4-52

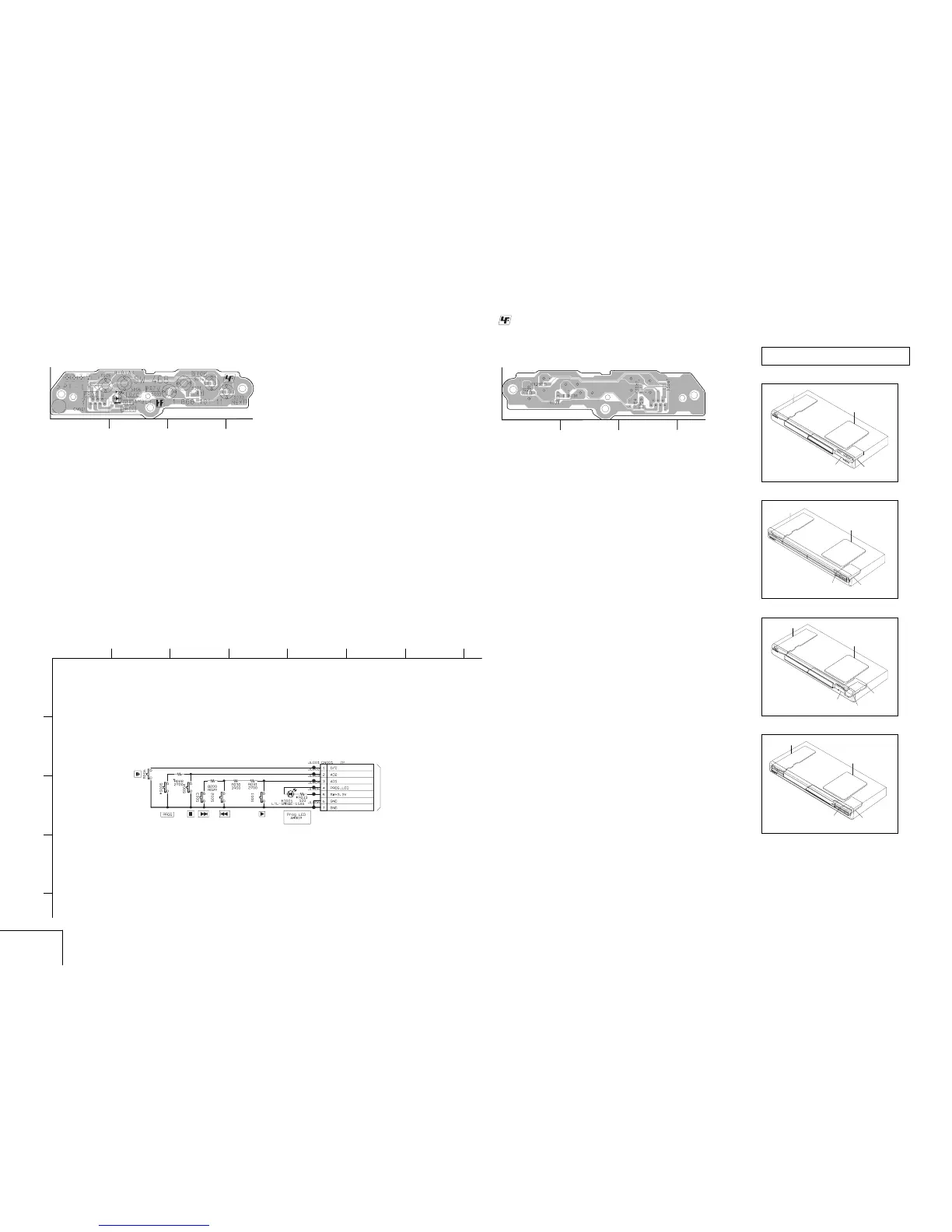

SW-468 (SWITCH) PRINTED WIRING BOARD
• : Uses unleaded solder.
4-51
SWITCH
SW-468
1
A
B
C
D
2
765
43
For Schematic Diagram
• Refer to page 4-51 for printed wiring board of SW-468 board.
SW-468 BOARD
(DVP-NS43P/NS53P ONL Y)
SWITCH
-REF.NO.:1000 SERIES-
XX MARK:NO MOUNT
NO MARK:REC/PB MODE
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
For printed wiring board
(DVP-NS43P/NS53P)
IF-144 Board
(EXCEPT DVP-NS51P)
(
INTERFACE
)
SW-468 Board
(EXCEPT DVP-NS51P)
(SWITCH)
MV-47 Board
(CPU, Servo-DSP, AVDEC,
DRIVE, VIDEO, AUDIO, POWER)
Power Board
(DVP-NS15)
IF-143 Board
(INTERFACE)
SW-467 Board
(SWITCH PWB)
MV-48 Board
(CPU, Servo-DSP, AVDEC, DRIVE,
VIDEO D-EURO, AUDIO_EURO (D), POWER)
Power Board
SW-468 BOARD (DVP-NS43P/NS53P/56P ONL Y) SIDE A SW -468 BO ARD (D VP-NS43P/NS53P ONLY)SIDE B
A
1
2
3
A
1
2
3
TO CN403
IF144 BOARD (DVP-NS43P/NS53P)
(
SEE PAGE 4-13 TO 4-14
)
(DVP-K56P)
IF-144 Board
(INTERFACE)
MC-161 Board
(MIC-ECHO)
SW-469 Board
(SWITCH BOARD)
MV-47 Board
(CPU, Servo-DSP, AVDEC,
DRIVE, VIDEO, AUDIO, POWER)
Power Board
(DVP-NS51P)
IF-145 Board
(DVP-NS51P ONLY)
(
INTERFACE
)
SW-475 Board
(DVP-NS51P ONLY)
(SWITCH)
MV-47 Board
(CPU, Servo-DSP, AVDEC,
DRIVE, VIDEO, AUDIO, POWER)
Power Board
