Sony DWT-B01 - Page 42

42
Specifications
MIC: –22 dBu (with 0 dB
attenuator)
LINE: +24 dBu
Audio attenuator adjustment range (pad)
0 to 48 dB (3dB steps, MIC input
mode only)
Microphone input connector
Sony 4-pin (SMC9-4S) (female)
Input impedance
4.7 kohms or more
Frequency response
20 Hz to 22 kHz
T.H.D 0.03% or less
Dynamic range
106 dB or more
0 dBu = 0.775 V
General
Operating voltage
3 V DC, with two LR6 (AA)
alkaline batteries
Battery life
Continuous operating time
3.5 hours (at 25 °C (77 °F), 10-mW
output using Sony LR6 (AA)-
size alkaline batteries with the
wireless remote control
function off and the display set
to AUTO OFF)
Operating temperature
0 to 50 °C (32 to 122 °F)
Storage temperature
–20 to +60 °C (–4 to +140 °F)
Wireless remote control
2.4-GHz 1EEE802.15.4 compliant

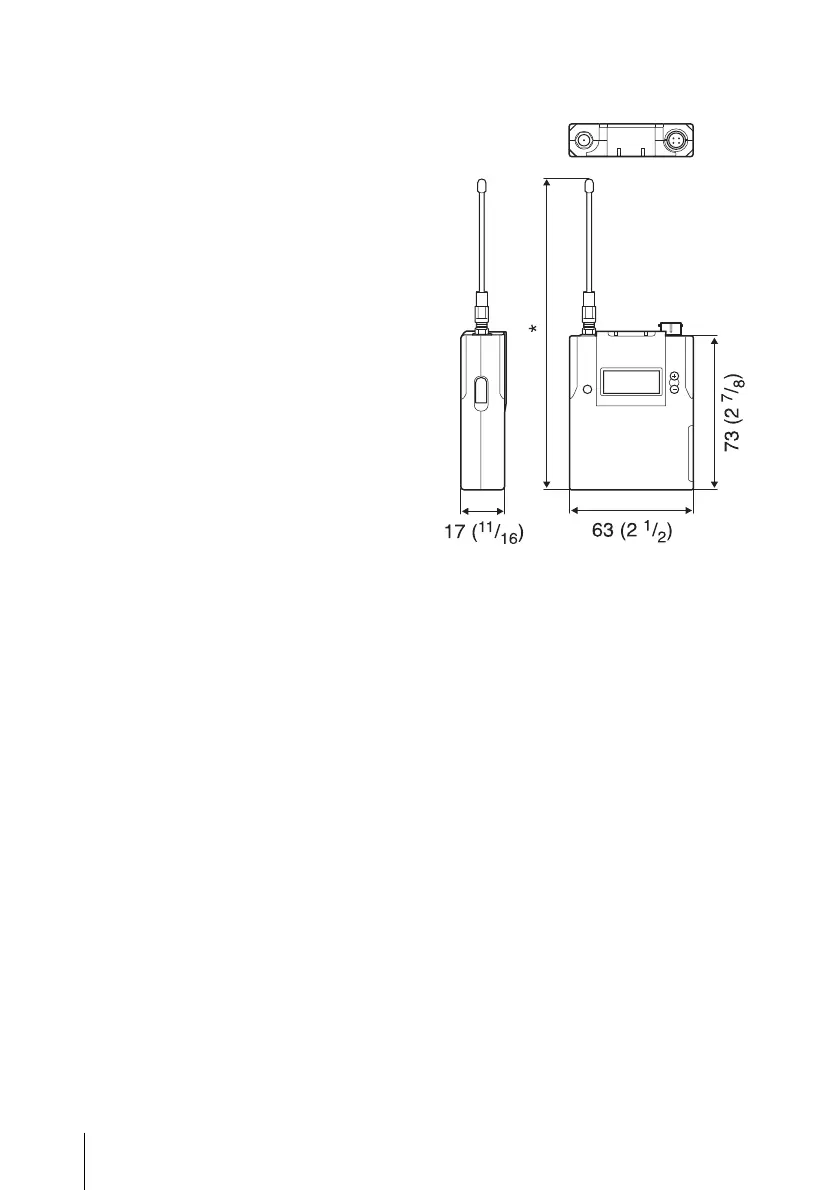

Dimensions (unit: mm (inches))
Mass Approx. 125 g (4 oz) including
batteries
Supplied accessories
Spare battery case (1)
Soft case (1)
Microphone cable (4-pin to XLR-
type 3-pin) (1)
USB adapter cable (1)
USB cable (1)
Carrying case (1)
Scribble sheet (1)
Operating Instructions (1)
CD-ROM (1)
Optional accessories
ECM-77BC/9X lavalier
microphones
Design and specifications are subject to
change without notice.
* CE6267 model: 169 (6
3
/
4
)
3040U model: 206 (8
1
/
8
)
4250U model: 188 (7
1
/
2
)
