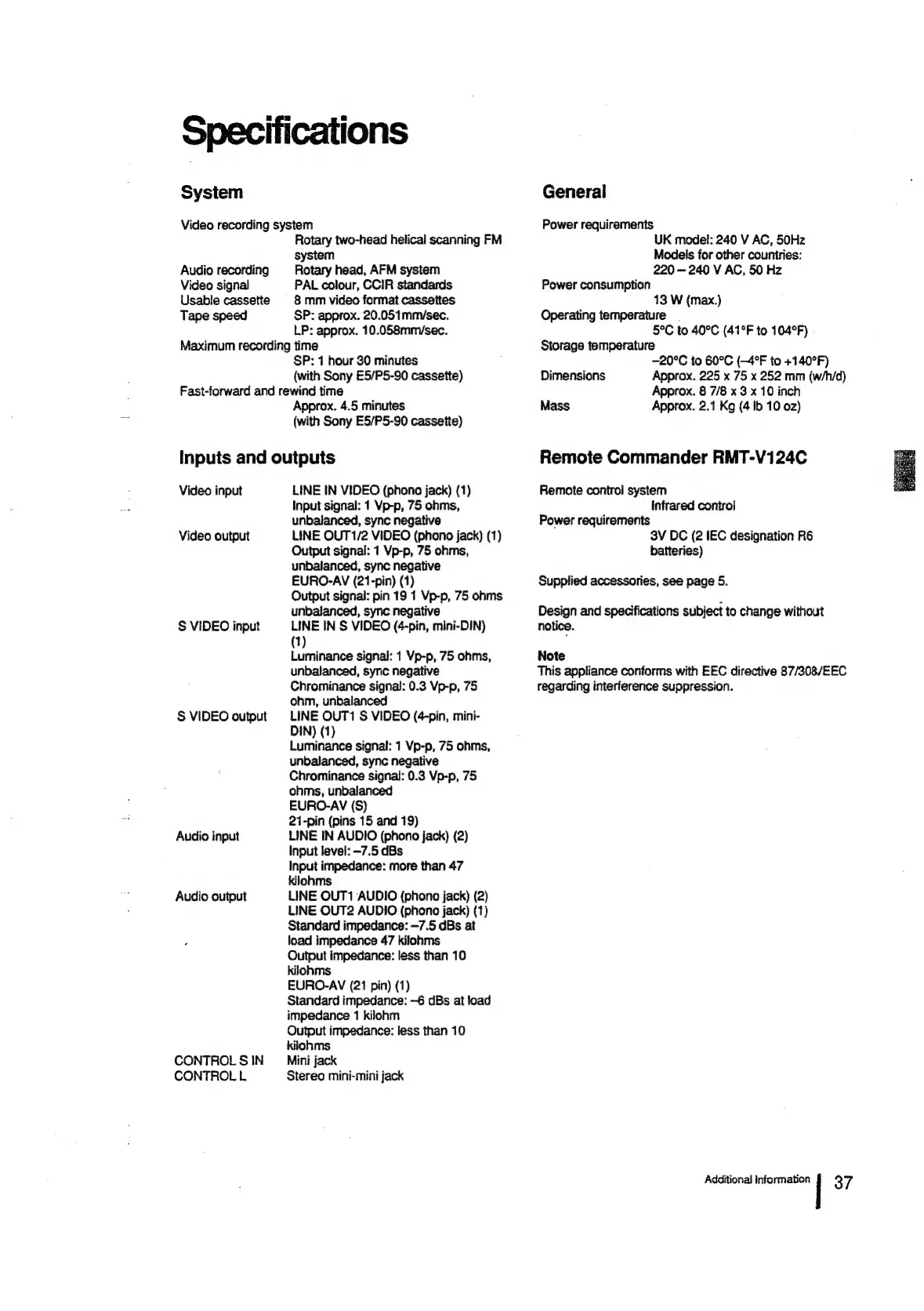

Specifications
System
Video recording system
Rotary two-head helical scanning FM
system
Audio recording Rotary head, AFM system
Video signal PAL colour, CCIR standards
Usable cassette § 8 mm video format cassettes
Tape speed SP: approx. 20.051 mm/sec.
LP: approx. 10.058mm/sec.
Maximum recording time
SP: 1 hour 30 minutes
(with Sony E5/P5-90 cassette)
Fast-forward and rewind time
Approx. 4.5 minutes
(with Sony E5/P5-90 cassette)
Inputs and outputs
LINE IN VIDEO (phono jack) (1)
Input signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
LINE OUT 1/2 VIDEO (phono jack) (1)
Output signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
EURO-AV (21-pin) (1)
Output signal: pin 19 1 Vp-p, 75 ohms
unbalanced, sync negative
LINE IN S VIDEO (4-pin, mini-DIN)
(1)
Luminance signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
Chrominance signal: 0.3 Vp-p, 75
ohm, unbalanced
LINE OUT1 S VIDEO (4-pin, mini-
DIN) (1)
Luminance signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
Chrominance signal: 0.3 Vp-p, 75
ohms, unbalanced
EURO-AV (S)
21-pin (pins 15 and 79)
LINE IN AUDIO (phono jack) (2)
Input level: -7.5 dBs
Input impedance: more than 47
kilohms
LINE OUT1 AUDIO (phono jack) (2)
LINE OUT2 AUDIO (phono jack) (1)
Standard impedance: -7.5 dBs at
load impedance 47 kilohms
Output impedance: less than 10
kilohms
EURO-AV (21 pin) (1)
Standard impedance: ~6 dBs at load
impedance 1 kilohm
Output impedance: less than 10
kilohms
Mini jack
Stereo mini-mini jack
Video input
Video output
§ VIDEO input
S VIDEO output
Audio input
Audio output
CONTROL S IN
CONTROL L
General
Power requirements
UK model: 240 V AC, 50Hz
Modeis for other countries:
220 — 240 V AC, 50 Hz
Power consumption
13 W (max.)
Operating temperature
5°C to 40°C (41°F to 104°F)
Storage temperature
20°C to 60°C (~4°F to +140°F)
Dimensions Approx. 225 x 75 x 252 mm (w/h/d)
Approx. 8 7/8 x 3 x 10 inch
Mass Approx. 2.1 Kg (4 Ib 10 oz)
Remote Commander RMT-V124C
Remote control system
Infrared control
Power requirements
3V DC (2 IEC designation R6é
batteries)
Supplied accessories, see page 5.
Design and specifications subject to change without
notice.
Note
This appliance conforms with EEC directive 87/308/EEC
regarding interference suppression.
Additional information | 37
