88 Specifications

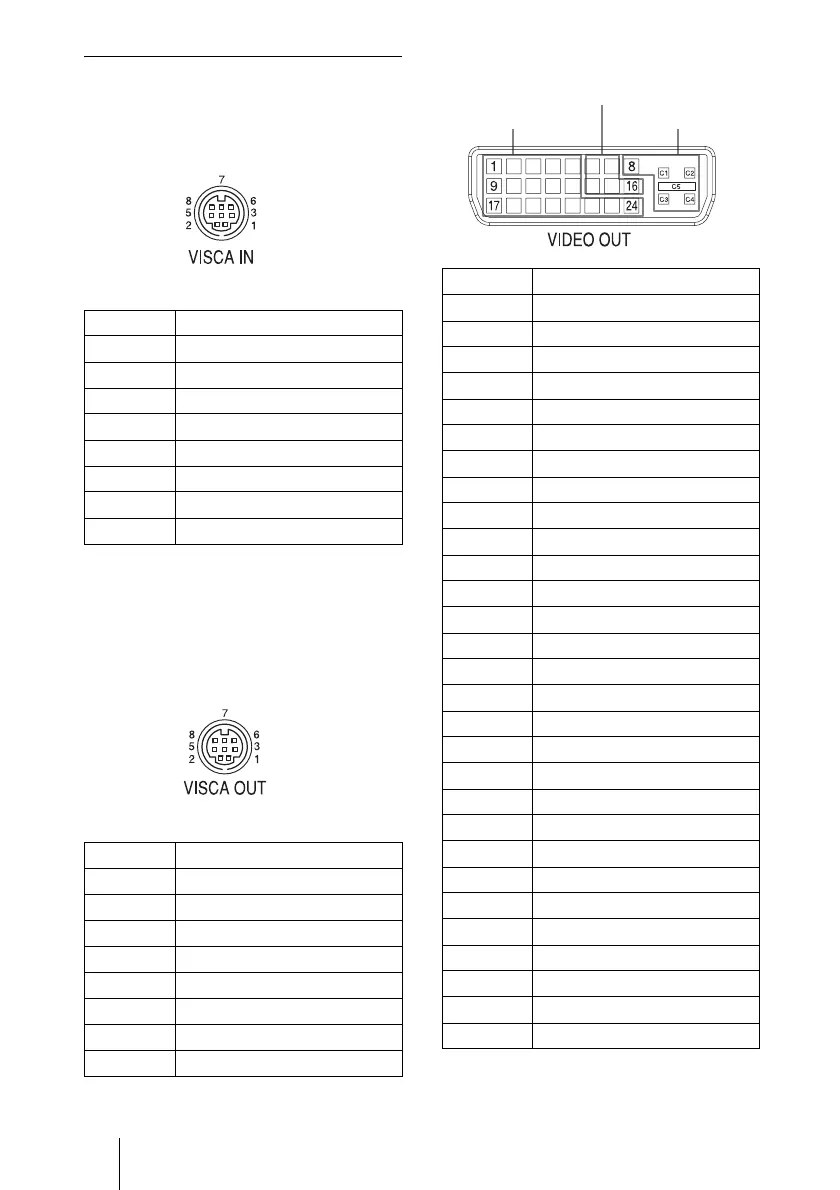

Pin assignments
VISCA IN connector (mini-DIN 8-pin,
female)
* The IR OUT function of pins 7 and 8 is
selectable with the BOTTOM switch on
the bottom of the camera.
VISCA OUT connector (mini DIN 8-
pin, female)
VIDEO OUT connector (DVI 29-pin)
* The signals for pins C1, C2, and C3 can be
changed with the COLOR SYSTEM
setting (page 66).
Pin No. Function
1DTR IN
2DSR IN
3 TXD IN
4 GND
5 RXD IN
6 GND
7 IR OUT (R)*
8 IR OUT (L)*
Pin No. Function
1 DTR OUT
2 DSR OUT
3 TXD OUT
4 GND
5 RXD OUT
6 GND
7 No connection
8 No connection
Pin No. Function
1 Data_2
–
2 Data_2+
3 Shield (2, 4)
4 No connection
5 No connection
6 No connection
7 No connection
8 Analog Vertical Sync
9 Data_1
–
10 Data_1+
11 Shield (1, 3)
12 No connection
13 No connection
14 Power_+5 V
15 GND
16 Hot Plug
17 Data_0
–
18 Data_0+
19 Shield (0, 5)
20 No connection
21 No connection
22 Shield Clock
23 Clock+
24 Clock
–
C1 Analog Red/Pr*
C2 Analog Green/Y*
C3 Analog Blue/Pb*
C4 Analog Horizontal Sync
C5 Analog GND
TMDS ANALOG
PLUG & PLAY
