Sony FD Trinitron KV-28LS35E - Chassis Exploded View

SECTION 6
EXPLODED VIEWS
NOTE :
Items with no part number and no description are not
stocked because they are seldom required for routine
service.
The construction parts of an assembled part are indicated
with a collation number in the remarks column.
Items marked “*” are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.

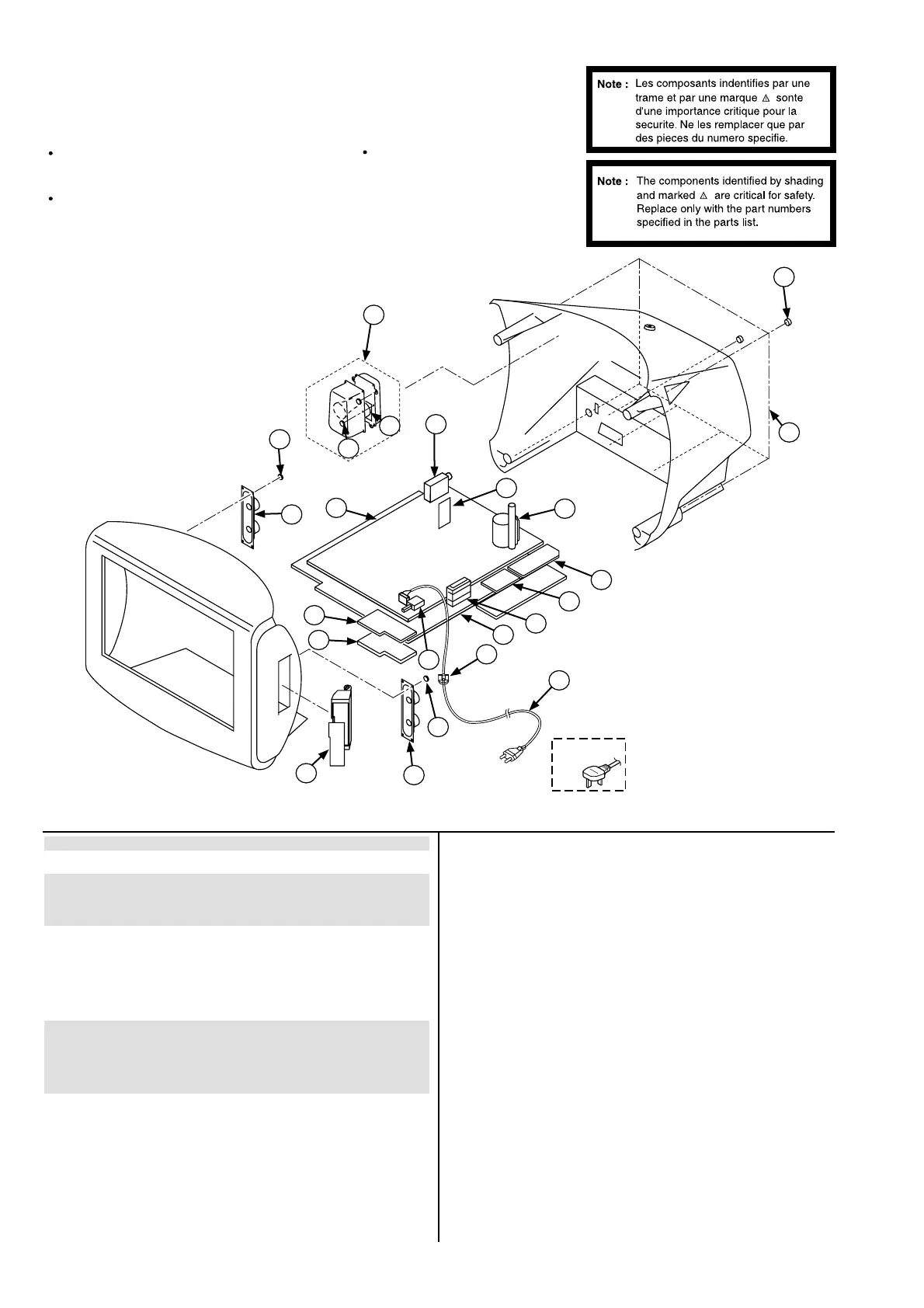

6-1. CHASSIS
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
48
UK Models
only
11 *A-1632-945-A A BOARD, COMPLETE (KV-28LS35B)
*A-1632-946-A A BOARD, COMPLETE (KV-28LS35E)
*A-1632-934-A A BOARD, COMPLETE (KV-28LS35U)
*A-1632-939-A A BOARD, COMPLETE (KV-32LS35B)
*A-1632-940-A A BOARD, COMPLETE (KV-32LS35E)
*A-1632-931-A A BOARD, COMPLETE (KV-32LS35U)
12 *A-1624-099-A F2 BOARD, COMPLETE
13 *4-206-055-01 BRACKET, F2 (KV-28LS35)
*4-206-055-11 BRACKET, F2 (KV-32LS35)
14 4-206-089-01 COVER, REAR (KV-28LS35)
4-206-062-01 COVER, REAR (KV-32LS35)
15 7-685-663-79 SCREW +BVTP 4x16 TYPE 2 IT-3 (KV-28LS35)
4-039-358-01 SCREW (4x16), (+) BV TAPPING (KV-32LS35)
16 *A-1678-212-A WOOFER COMPLETE ASSY (KV-28LS35) 17,18
*A-1678-205-B WOOFER COMPLETE ASSY (KV-32LS35) 17,18
17 1-529-417-11 SPEAKER (8CM)
18 7-685-663-71 SCREW +BVTP 4x16 TYPE 2 IT-3 (KV-28LS35)
4-039-358-01 SCREW (4x16), (+) BV TAPPING (KV-32LS35)
19 1-529-408-11 SPEAKER (4.2x24CM)
20 4-058-870-01 SCREW, (4x16) W (+) P TAPPING (KV-28LS35)
4-039-358-01 SCREW (4x16), (+) BV TAPPING (KV-32LS35)
21 *A-1646-242-A H2 BOARD, COMPLETE
12
13
1
2
3
19
20
21
4
5
8
10
14
11
15
16
18
17
19
20
6
7
9
1 £ 1-571-433-21 SWITCH, PUSH (AC POWER)
2 *4-202-531-01 AC CORD LOCK (SC)
3 £ 1-765-286-11 CORD, POWER (KV-28LS35B/28LS35E/
KV-32LS35B/32LS35E)
£ 1-776-204-12 CORD, POWER (FILTER) (KV-28LS35U/32LS35U)
4 *4-206-048-01 BRACKET, MAIN (KV-28LS35)
*4-206-048-11 BRACKET, MAIN (KV-32LS35)
5 1-424-733-11 COIL, PFC CHOKE 65MMH
6 *A-1640-431-A D3 BOARD, COMPLETE
7 *A-1624-100-A F3 BOARD, COMPLETE
8 £ 1-453-308-41 TRANSFORMER ASSY, FLYBACK (NX4521//Z2B4)
(KV-28LS35)
£ 1-453-308-31 TRANSFORMER ASSY, FLYBACK (NX4521//Z2B4)
(KV-32LS35)
9 *A-1642-285-A D2 BOARD, COMPLETE (KV-28LS35)
*A-1642-281-A D2 BOARD, COMPLETE (KV-32LS35)
10 8-598-535-10 FRONTEND (BTF-EF411) (KV-28LS35B)
8-598-533-00 FRONTEND (BTF-EC411) (KV-28LS35E)
8-598-529-00 FRONTEND (BTF-EU611) (KV-28LS35U)
1-693-555-11 TUNER STEREO (KV-32LS35B)
1-693-556-11 TUNER STEREO (KV-32LS35E)
1-693-557-11 TUNER STEREO (KV-32LS35U)
