Sony FD Trinitron KV-28LS35E - Picture Tube Assembly Diagram

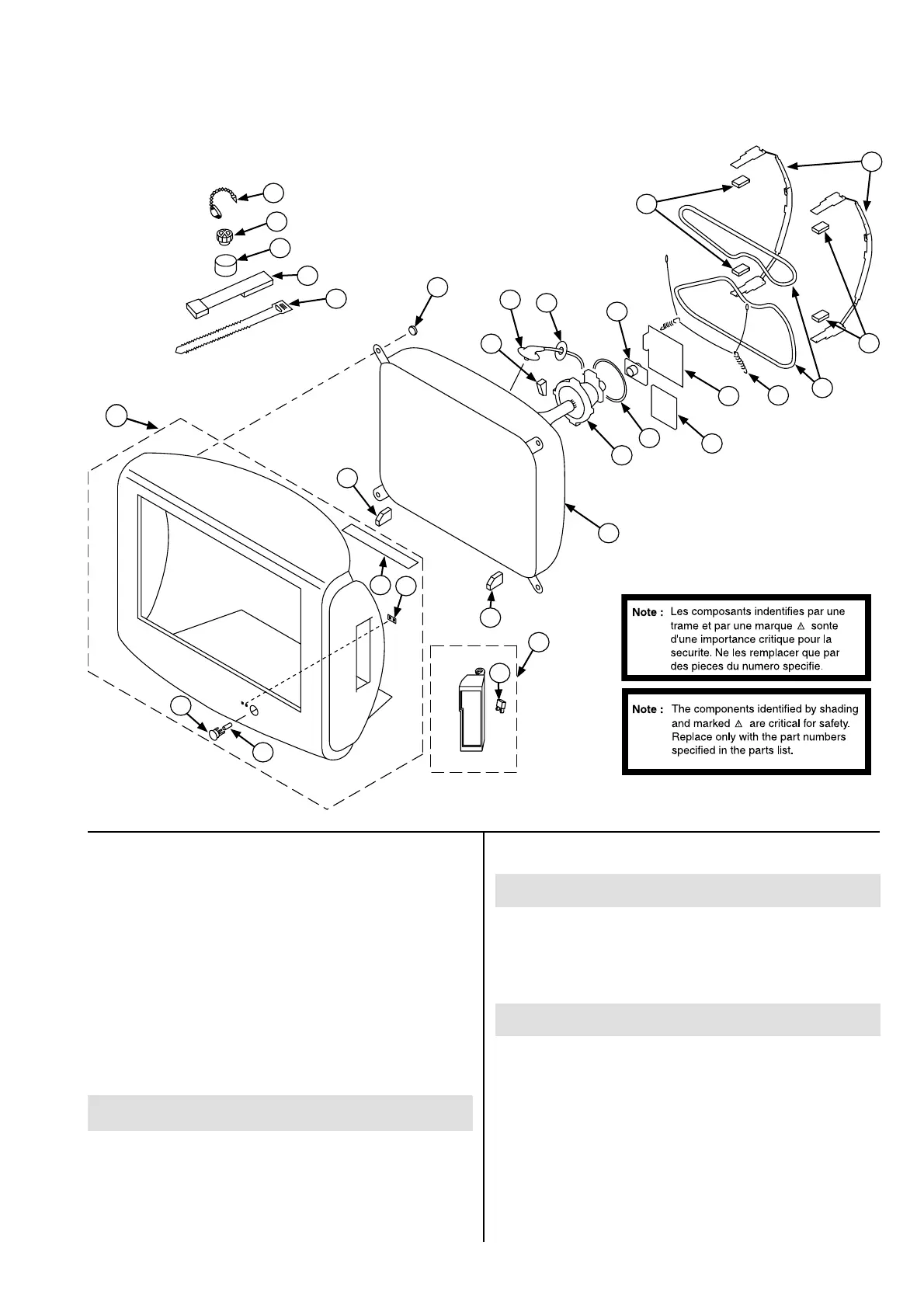

6-2. PICTURE TUBE
REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK
49
51 X-4200-736-1 BEZNET ASSY (KV-28LS35) 52-55
X-4200-724-1 BEZNET ASSY (KV-32LS35) 52-55
52 4-205-948-01 POWER BUTTON (KV-28LS35)
4-205-948-11 POWER BUTTON (KV-32LS35)
53 4-204-426-01 SPRING (KV-28LS35)
4-202-964-11 SPRING (KV-32LS35)
54 4-205-375-01 GUIDE, LIGHT (KV-28LS35)
4-205-375-11 GUIDE, LIGHT (KV-32LS35)
55 4-204-865-01 SHEET, BLOTTING (KV-28LS35)
4-204-058-41 SHEET, BLOTTING (KV-32LS35)
56 X-4200-712-1 DOOR ASSY (KV-28LS35) 57
X-4200-712-2 DOOR ASSY (KV-32LS35) 57
57 4-047-464-01 CATCHER, PUSH
58 4-203-098-01 SUPPORTER,CRT (KV-32LS35)
59 £ 8-737-786-05 PICTURE TUBE (W66LLX060X) (KV-28LS35)
£ 8-735-054-05 PICTURE TUBE (W76LLZ060X) (KV-32LS35)
60 8-451-521-11 DEFLECTION YOKE (Y28RVC3-B) (KV-28LS35)
1-451-520-11 DEFLECTION YOKE (Y32RVC3) (KV-32LS35)
61 1-452-896-11 COIL, NA ROTATION (RT-200)
62 *A-1645-050-A VM BOARD, COMPLETE (KV-28LS35)
*A-1645-049-A VM BOARD, COMPLETE (KV-32LS35)
63 *A-1638-156-A C BOARD, COMPLETE
64 4-369-318-21 SPRING, TENSION (KV-28LS35)
4-200-433-01 SPRING, EXTENSION (KV-32LS35)
65 £ 1-416-466-21 COIL, DEMAGNETIC (KV-28LS35)
£ 1-416-769-11 COIL, DEMAGNETIC (KV-32LS35)
66 *4-203-390-71 CUSHION, DGC
67 *4-202-745-01 HOLDER, DGC (KV-28LS35)
*4-059-569-01 HOLDER, DGC (KV-32LS35)
68 8-453-011-11 NECK ASSY, NA299-M
69 *4-202-693-01 HOLDER, HV CABLE (KV-32LS35)
70 £ 1-251-537-22 CAP ASSY, HIGH VOLTAGE (KV-28LS35)
£ 1-251-946-11 CAP ASSY, HIGH VOLTAGE (KV-32LS35)
71 3-704-495-01 SPACER, DY (KV-28LS35)
4-203-658-01 SPACER, DY (KV-32LS35)
72 4-046-765-12 SCREW, TAPPING 7 + CROWN WASHER
(KV-28LS35)
4-204-225-01 PT-SCREW (KV-32LS35)
73 4-308-870-00 CLIP, LEAD WIRE
74 1-452-094-00 MAGNET, ROTATABLE DISK; 15MM Ø
75 1-452-032-00 MAGNET, DISK; 10MM Ø
76 X-4387-214-1 PERMALLOY ASSY, CORRECTION
77 3-701-007-00 BAND, BINDING
51
52
53
54
56
58
55
59
75
57
77
76
73
74
60
61
62
63
64
65
66
67
72
71
70
68
66
69
58
