Sony FDL-3105 - Exploded Views; Cabinet Section

SECTION 5
EXPLODED VIEWS
NOTE:
0
- xx, - X mean standardized parts,
so they may have some differences
from the original one.
l Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE)... (RED)
t f
Parts color
Cabinet’s color

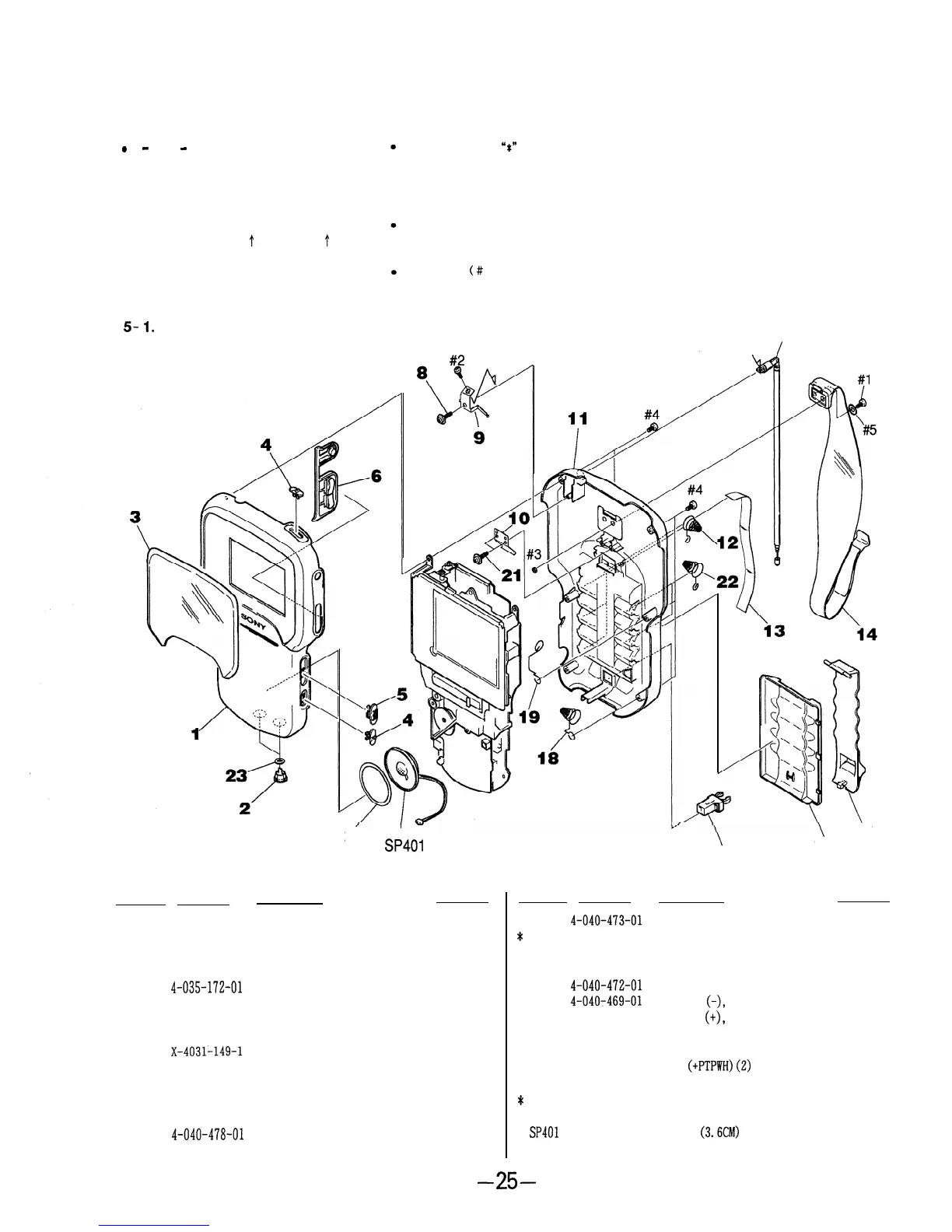

5- 1. CABINET SECTION
Items marked ‘2” are not stocked
since they are seldom required for
routine service. Some delay should
be anticipated when ordering these
items.
The mechanical parts with no reference
number in the exploded views are
not supplied.
Hardware (# mark) list is given in
the last of this parts list.
#2
ANT1 01
/
20
I
SP401
Part No. Ref. No.
Description Remarks
1
X-4031-296-1 CABINET (FRONT) SUB ASSY
2 3-338-877-01 K N OB (ADJ U S TMENT )
3 4-040-454-01
FILTER (A)
4 4-035-173-01 KNOB, BAND SELECTION
5 4-035-172-01 KNOB, POWER SW
6 4-040-464-01
BUTTON, CH
8 3-669-480-41 + PTPWH
2
9
X-4031l149-1 TERMINAL BOARD (ANT) ASSY
10 4-040-468-01 SPRING, CLICK
11 4-040-466-01 CABINET (REAR)
12 4-040-470-01 TERMINAL, BATTERY
13 4-040-478-01 RIBBON, BATTERY
--25-
17
\ 15
16
Ref. No. Part No.
Description
14 4-040-473-01 STRAP
* 15 4-040-471-01 STAND
16 4-040-455-01 LID, BATTERY CASE
17 4-040-472-01 LATCH, D.C.
18 4-040:469-01 TERMINAL (-), BATTERY
19 4-040-465-01 TERMINAL (+), BATTERY
20 4-040-467-01 SHEET, ADHESIVE
21 3-669-480-21 SCREW (+PTPWH)(Z)
22 4-041-411-01 TERMINAL(A), BATTERY
* 23 4-041-367-01 SHEET, LUMILER
ANT101 l-501-608-11 ANTENNA, TELESCOPIC
SP401 l-504-154-11 SPEAKER (3.6CM)
Remarks
