Sony GDM-C520 - Picture Tube

NOTE: The components identied by shading and
!
mark are critical for safety.
Replace only with part number specied.
NOTE: Les composants identies per un trame et une marque
!
sont critiques
pour la securite. Ne les remplacer que par une piece portant le numero specie.
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]

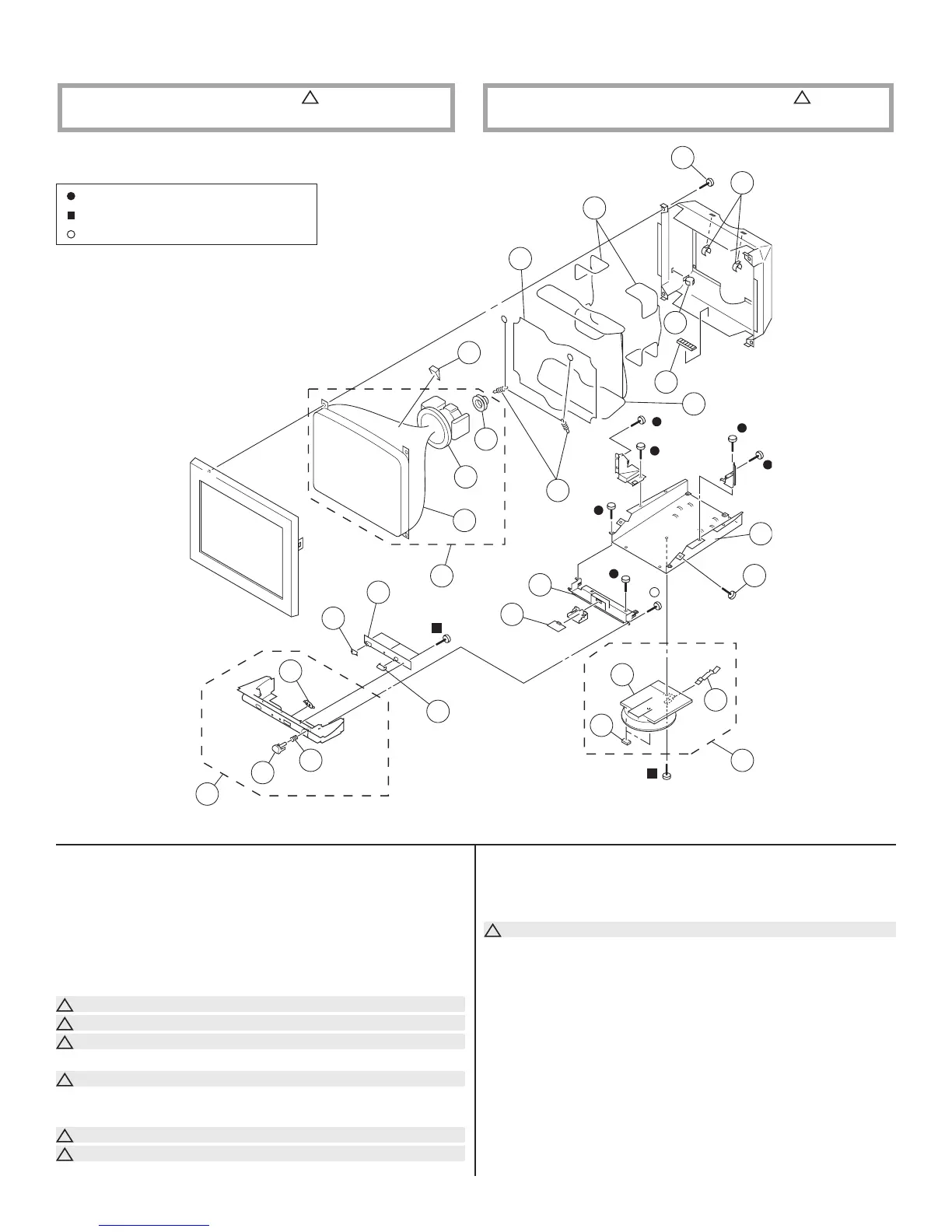

5-2. PICTURE TUBE
50 X-4039-711-1 PANEL ASSY, CONTROL (51-53)
51 4-086-246-01 BUTTON, POWER
52 4-042-593-11 SPRING, COMPRESSION
53 4-086-244-01 BUTTON, MULTI
54 4-086-239-01 SELECTOR INPUT
* 55 A-1400-173-A H2 BOARD, MOUNTED
56 4-086-238-01 BUTTON, MENU
!
57 8-734-046-06 ITC ASSY 21TKD-R2 (58-60)
!
58 8-738-848-05 CRT 21TKD (B COAT)
!
59 8-451-519-11 DY Y21TKN-M
!
60 1-452-923-51 NECK ASSEMBLY
61 2-162-100-31 SPACER, DY
62 4-061-573-11 SPRING, TENSION
!
63 1-419-130-21 COIL, LANDING CORRECTION
!
64 1-419-129-21 COIL, LANDING CORRECTION
65 4-365-808-01 SCREW (5), TAPPING
66 4-041-021-21 HOLDER, DEGAUSS COIL
67 4-071-175-01 HOLDER, DGC
68 4-062-670-01 SPACER, CRT
!
69 1-419-838-11 COIL, DEGAUSSING
70 X-4038-783-1 CHASSIS ASSY, BASE
71 4-389-025-01 SCREW (M4) (EXT TOOTH WASHER)
72 X-4039-710-1 BASE ASSY, STAND (73-75)
73 4-080-252-03 STOPPER
74 4-080-256-91 SLIDER
* 75 4-060-533-01 CUSHION
76 8-610-158-71 SENSOR, MAGNETIC MIU-221D
77 X-4039-712-1 SUPPORT ASSY, CRT SHIELD
7-685-881-09 SCREW +BVTT 4X8 (S)
7-685-647-79 SCREW +BVTP 3X10 TYPE2 TT(B)
7-685-663-71 SCREW +BVTP 4X16 TYPE2 IT-3
50
54
53
56
52
51
55
57
61
63
69
76
77
75
68
67
65
60
59
58
62
64
66
72
71
70
73
74

— 34 —
GDM-C520/C520K
