a) Disassembly of “COVER, TOP”
Take out from hook (2 location) *take out hook from “No.1” to “No.2”.
1
2
PULL
DIRECTION
Take out hook at No.1 area
Take out hook at No.2 area
PULL
DIRECTION
After detach No.1 hook, Detach No.2 hook.
: Hook location
KDL-50W800C, 805C, 807C, 809C/KDL-55W800C, 805C

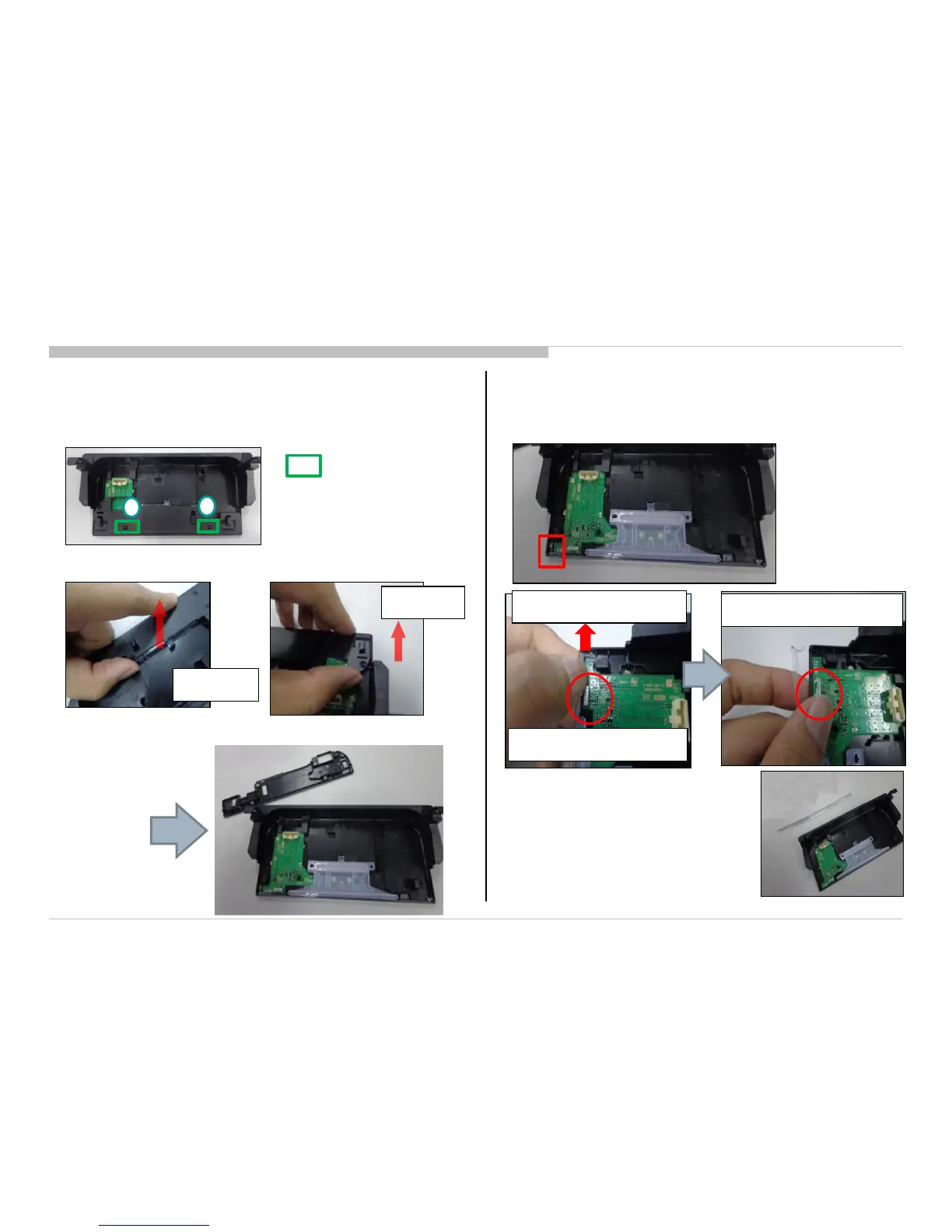

Detach “PANEL, ORNAMENT” as shown below
Hook location
Lift the hook (Y-Direction) to
release from rib.
Caution Point: Avoid touching board
components
Caution Point: Avoid touching board
components
b) Disassembly of “Panel, Ornament”
1-2-4. Light Case Disassembly
APPENDIX-1
To Next Page
