: Hook location

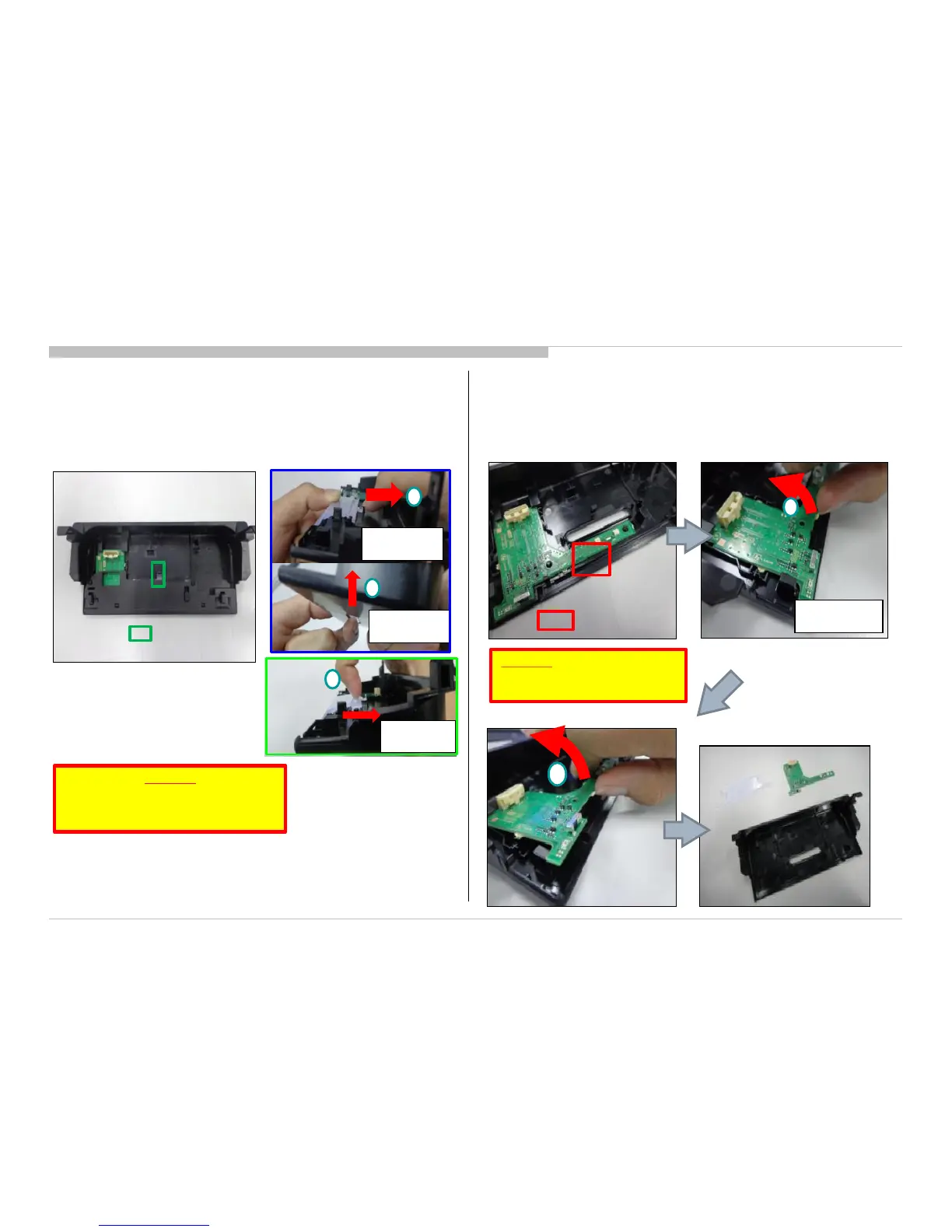

Step 3.2 : Pull the LIGHT, GUIDE
inwards to remove it
PULL
DIRECTION
PUSH
DIRECTION
1
1
PULL
DIRECTION
2
Remarks:
Step 2 is important to avoid hook
broken from Case, Bottom and Light,
Guide.
c) Disassembly of “Light, Guide”
KDL-50W800C, 805C, 807C, 809C/KDL-55W800C, 805C
: Location to pull
PULL
DIRECTION
1
2
Remarks:
Do not pull on any components
on HSC3_S M MOUNT!
Detach LIGHT, GUIDE from hook and push LIGHT, GUIDE from bottom
simultaneously
d) Disassembly of “HSC3_S M Mount ”
