HBD-DZ340M/DZ640M/DZ840K/DZ840M/DZ940K
13

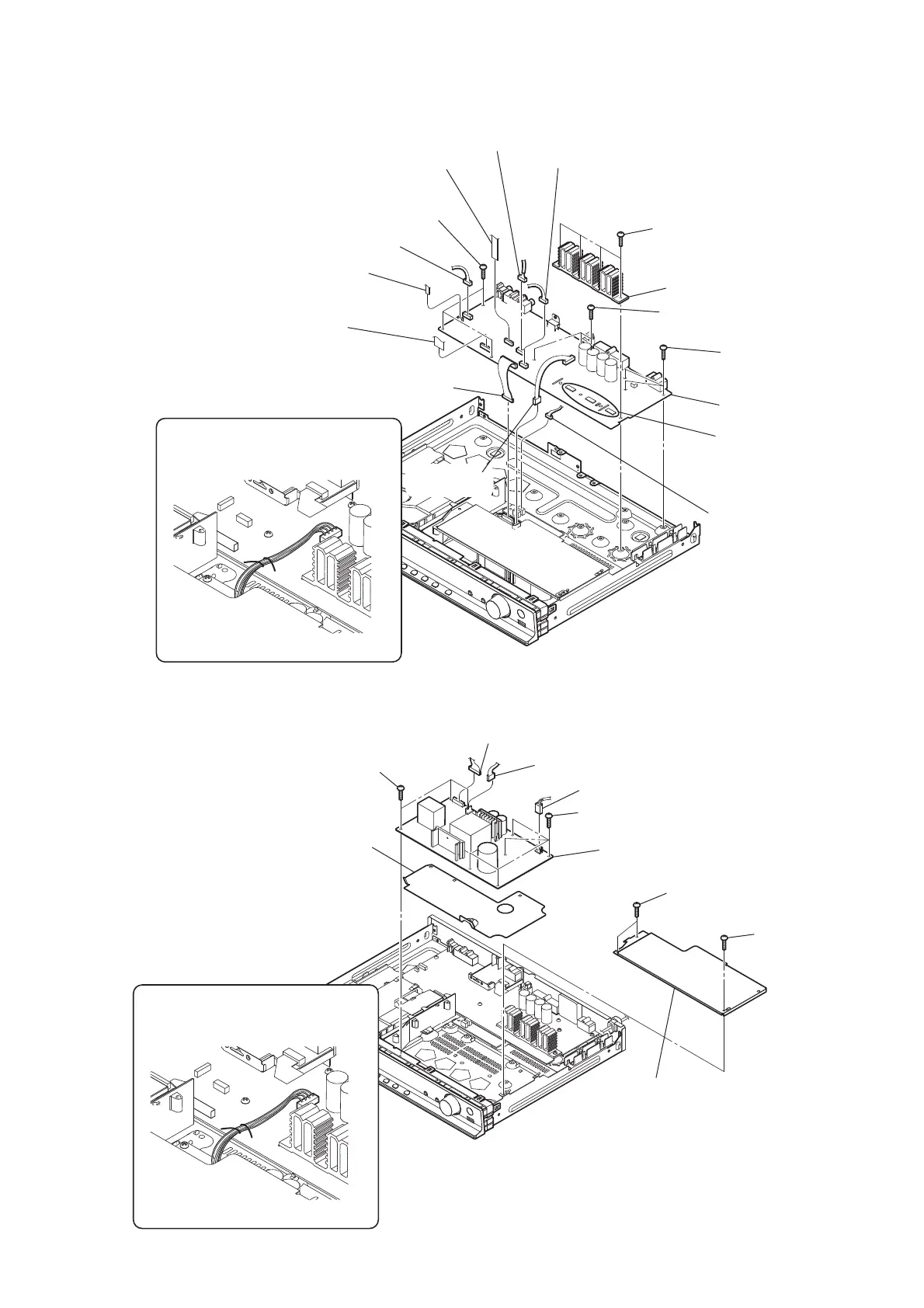

2-8. MAIN BOARD
2-9. POWER BOARD
qs three screws
(+BV3 (3-CR))
qf three screws
(+BV3 (3-CR))
qd three screws
(+BV3 (3-CR))
qa heat sink (AMP)
0 four screws
(+BV3 (3-CR))
9 wire (flat type) (15 core)
(CN5006)
8 wire (flat type) (5 core)
(CN1502)
6 wire (flat type) (24 core)
(CN1101)
qg MAIN board
3 CN905 (9P)
2 CN902 (5P)
4 CN3004 (4P)
(DZ340M/DZ640M/DZ840M)
CN3005 (5P)
(DZ840K/DZ940K)
5 CN1801 (5P)
7 CN1501 (6P)
When the heat sink
has been removed,
apply oil compound
(HG-1701) to it.
Note for assembling:
Tie wires in a bundle to avoid contact
with the heat sink or any part.
1 CN702 (5P)
(DZ340M/DZ640M
/DZ840M)
1 screw
(+BV3 (3-CR))
2 two screws
(+BV3 (3-CR))
7 five screws
(+BV3 (3-CR))
8 three screws
(+BV3 (3-CR))
3 insulate plate (upper DH)
9 insulate plate (lower DH)
0 POWER board
4 CN901 (3P)
5 CN902 (5P)
6 CN905 (9P)
Note for assembling:
Tie wires in a bundle to avoid contact
with the heat sink or any part.
