63
HBD-DZ340M/DZ640M/DZ840K/DZ840M/DZ940K
SECTION 6
EXPLODED VIEWS
1 4-267-101-11 CASE (DH)
2 3-363-099-22 SCREW (CASE 3 TP2)
3 3-077-331-01 +BV3 (3-CR)
4 4-267-083-01 KNOB (DH)
5 4-267-089-01 PANEL (DH), LOADING
6 4-159-522-02 SPRING (LOADING)
7 4-267-090-01 LOADING (DH), BASE
8 3-077-331-21 +BV3 (3-CR)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

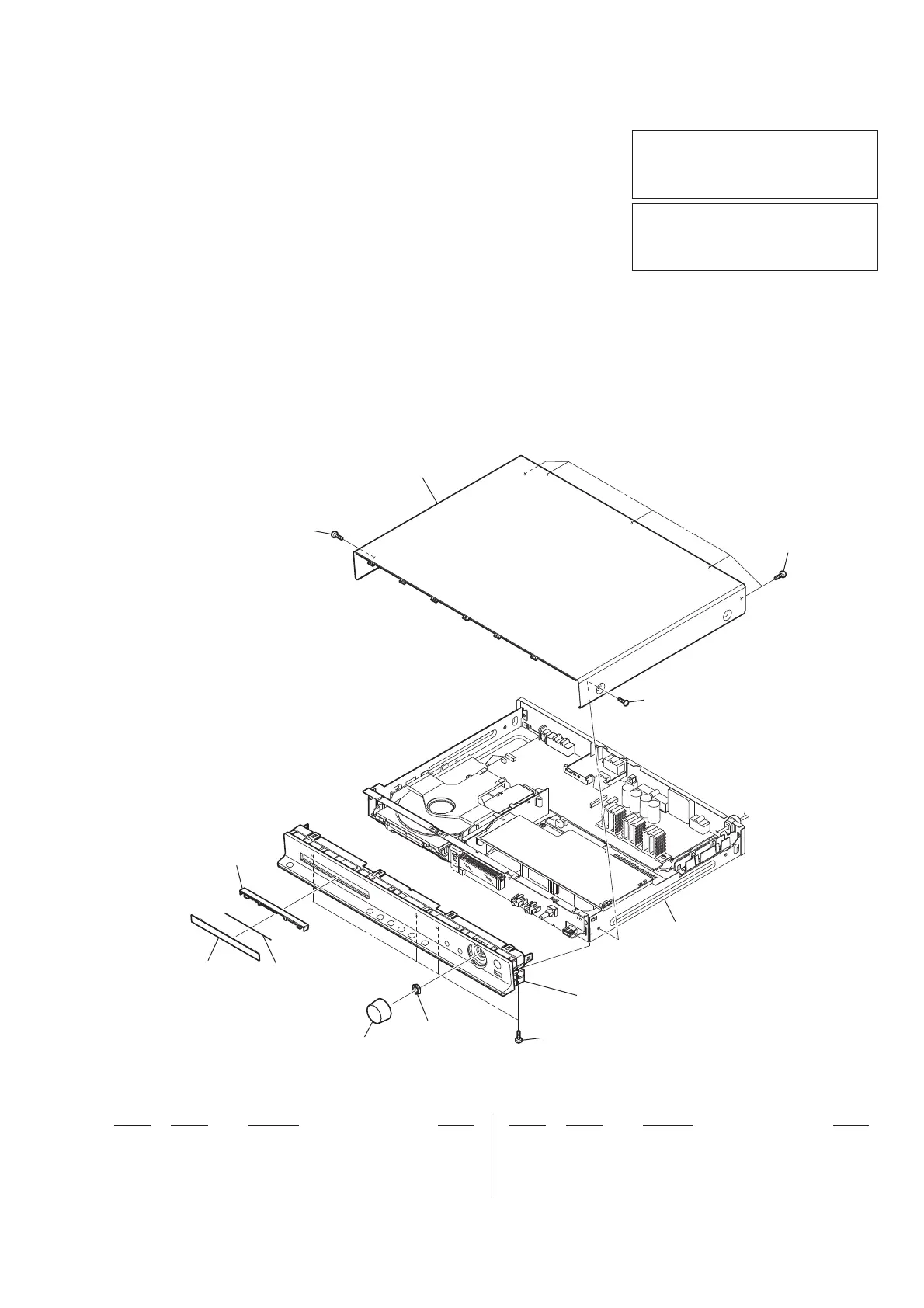

6-1. OVERALL SECTION
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “
*
” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
n n
Parts Color Cabinet’s Color
• Accessories are given in the last of the
electrical parts list.
• Abbreviation
E3 : 240V AC area in E model
E12 : 220 – 240V AC area in E model
E15 : Iranian model
EA : Saudi Arabia model
PH : Philippines model
RU : Russian model
SP : Singapore model
TH : Thai model
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
4
1
2
2
8
3
5
7
6
front panel section
front boards section
supplied with
S202
To Next Page
