HBD-DZ340M/DZ640M/DZ840K/DZ840M/DZ940K
9
Note:
Follow the disassembly procedure in the numerical order given.

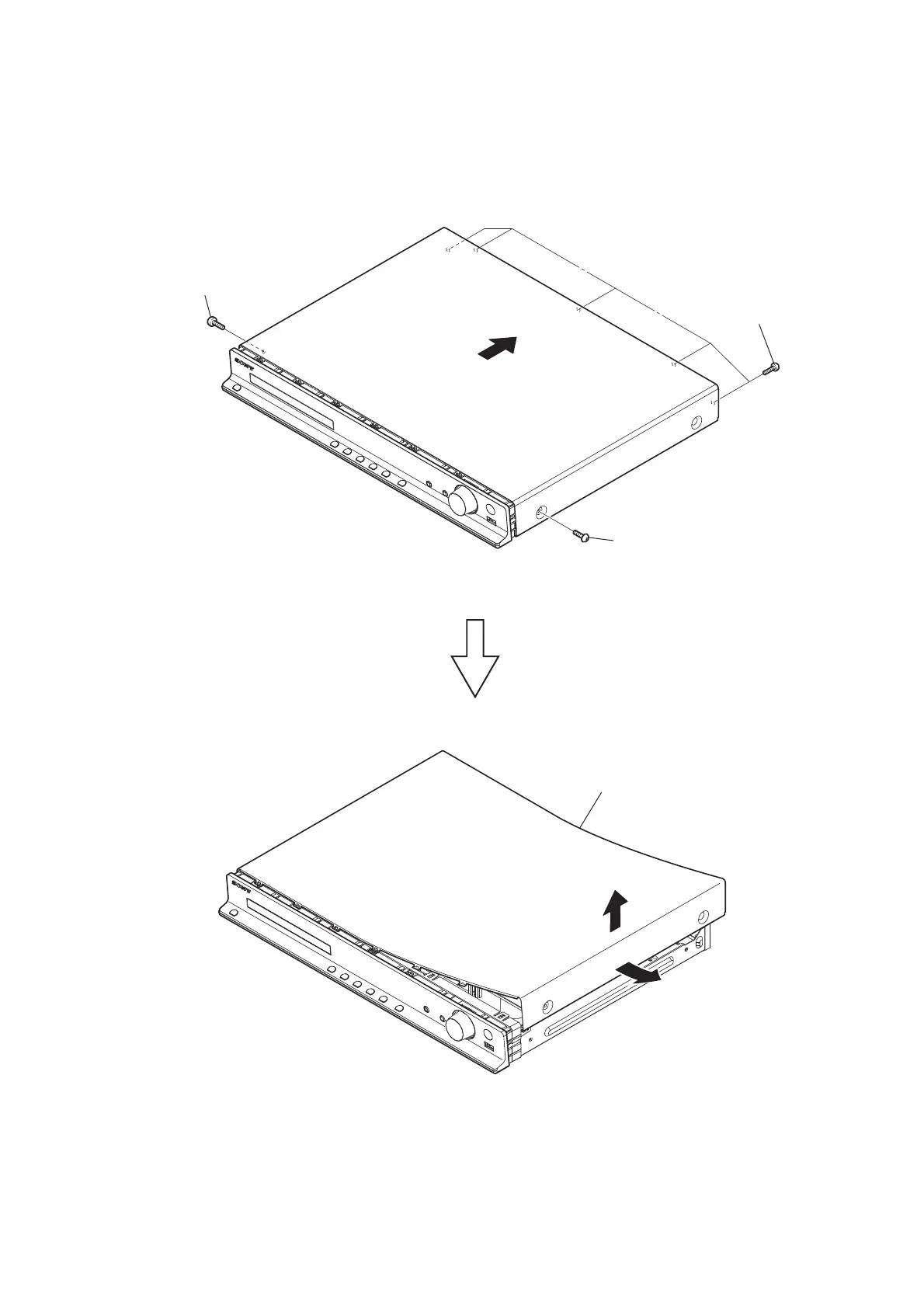

2-1. CASE
7 case (DH)
5 Raise one side of the case.
1 screw
(case 3 TP2)
2 screw
(case 3 TP2)
3 five screws
(+BV3 (3-CR))
4
6
