HBD-E370/E470/E570/E870/T57
10

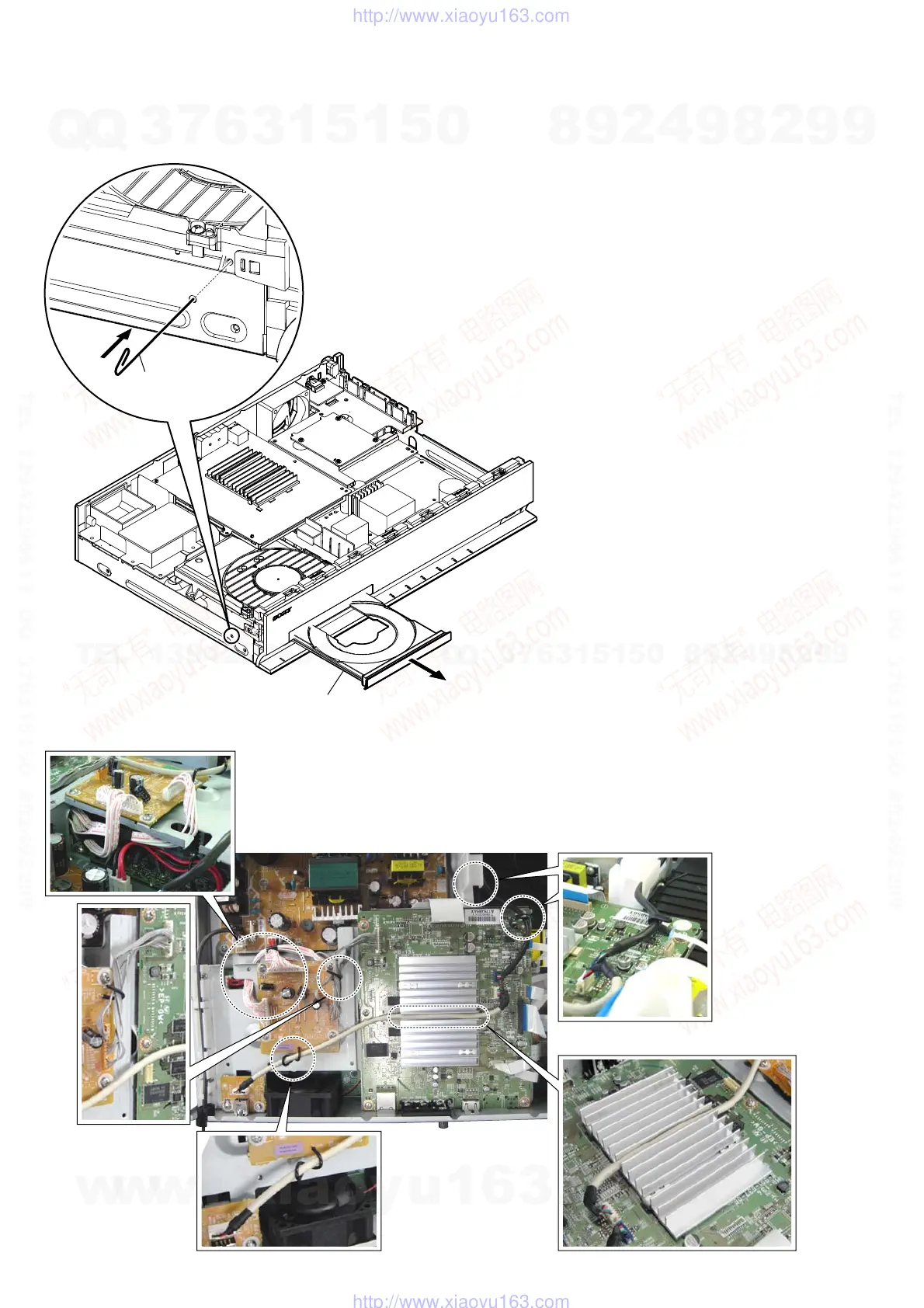

HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF
Note 1: After the case is removed, this mark is done.
Note 2: Please prepare the thin wire (clip etc.).
3
tray
1 Remove the case.
(Illustration of disassembly is omitted.)
2
clip etc.
PROCESSING OF HARNESS (USB)
– Top view –
