Sony HBD-E570 - DRIVE AND BACK PANEL DISASSEMBLY; BD Drive (BPX-5) Removal; Back Panel Block Removal

HBD-E370/E470/E570/E870/T57
15

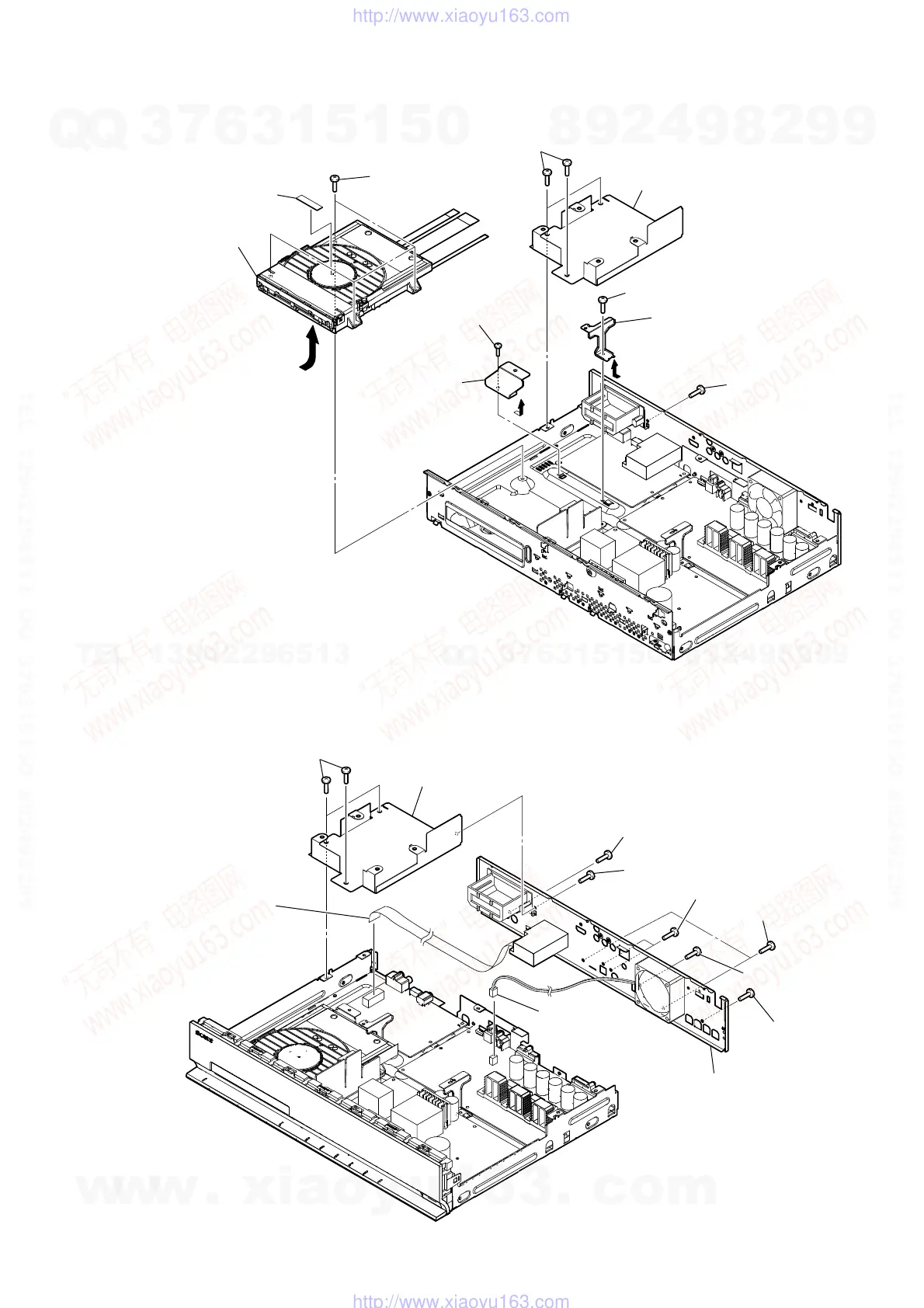

2-8. BD DRIVE (BPX-5)
2-9. BACK PANEL BLOCK
3 bracket L (MB foot)
9 bracket
(S-AIR foot)
qs sound sheet
qd BD drive (BPX-5)
0 four screws (BV3)
5 three screws (BV3)
1 screw (BV3)
7 screw (BV3)
2
8
qa
6 bracket (S-AIR UME)
4 screw (BV3)
4 wire (flat type) (9 core)
(CN10) (US, Canadian)
wire (flat type) (11 core)
(CN11) (AEP, UK)
7 screw (BV3)
1 screw (BV3)
7 screw (BV3)
8 back panel block
7 screw (BV3)
7 two screws (BV3)
6 two screws (BV3)
5 fan connector
(CN3000)
2 three screws (BV3)
3 bracket (S-AIR UME)
