Sony HCD-BC250 - DVD MECHANISM DECK SECTION-2 (CDM81 C-DVBU100)

74
HCD-BC150/BC250
201 4-251-870-01 BELT (BU)
202 4-251-869-01 BELT (MAIN TRAY)
203 4-251-841-01 GEAR (SUB TRAY 1)
204 4-251-873-01 SPRING (MODE), COMPRESSION
205 4-239-618-02 SCREW (+PWH, 2X6), STEP TAPPING
206 4-251-872-01 SPRING (LEVER), TORSION
207 4-251-868-01 BELT (SUB TRAY)
208 4-251-853-01 PULLEY (BU)
209 4-251-834-01 LEVER (MAIN TRAY)
210 4-251-852-01 GEAR (MAIN TRAY 3)
211 4-251-854-01 GEAR (BU1)
212 4-251-850-01 GEAR (MAIN TRAY 1)
213 4-251-856-01 GEAR (BU2)
214 4-251-842-01 GEAR (SUB TRAY 2)
215 4-251-851-01 GEAR (MAIN TRAY 2)
M761 A-4713-174-A MOTOR (81) ASSY (LD/ST MOTOR)
M762 A-4713-174-A MOTOR (81) ASSY (BU U/D MOTOR)
S771 1-478-552-11 ENCODER, ROTARY (MD)
#5 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
#6 7-685-902-21 SCREW +PTPWH 2.6X8 (TYPE2)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

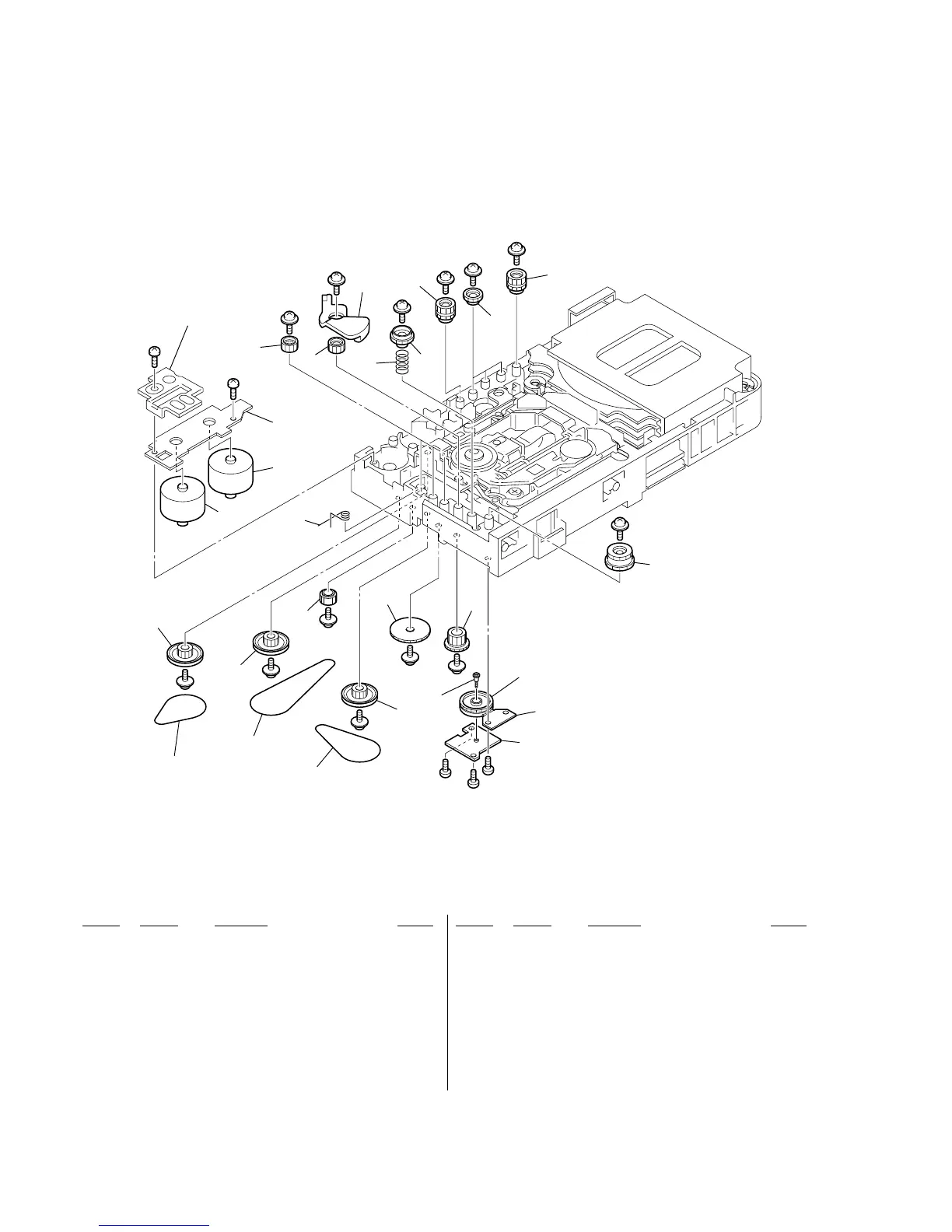

6-5. DVD MECHANISM DECK SECTION-2
(CDM81C-DVBU100)
not supplied
not supplied
not supplied
not supplied
201
202
203
203
204
209
214
215
203
214
210
206
207
208
208
208
212
213
211
205
#5
#5
#5
#6
#6
#6
#6
#6
#6
#6
M761
M762
#5
#5
#6
#6
#6
#6
#6
#6
S771
