Sony HCD-BC250 - Base Unit (DVBU27); RF Board

Sony HCD-BC250
218 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
14
HCD-BC150/BC250

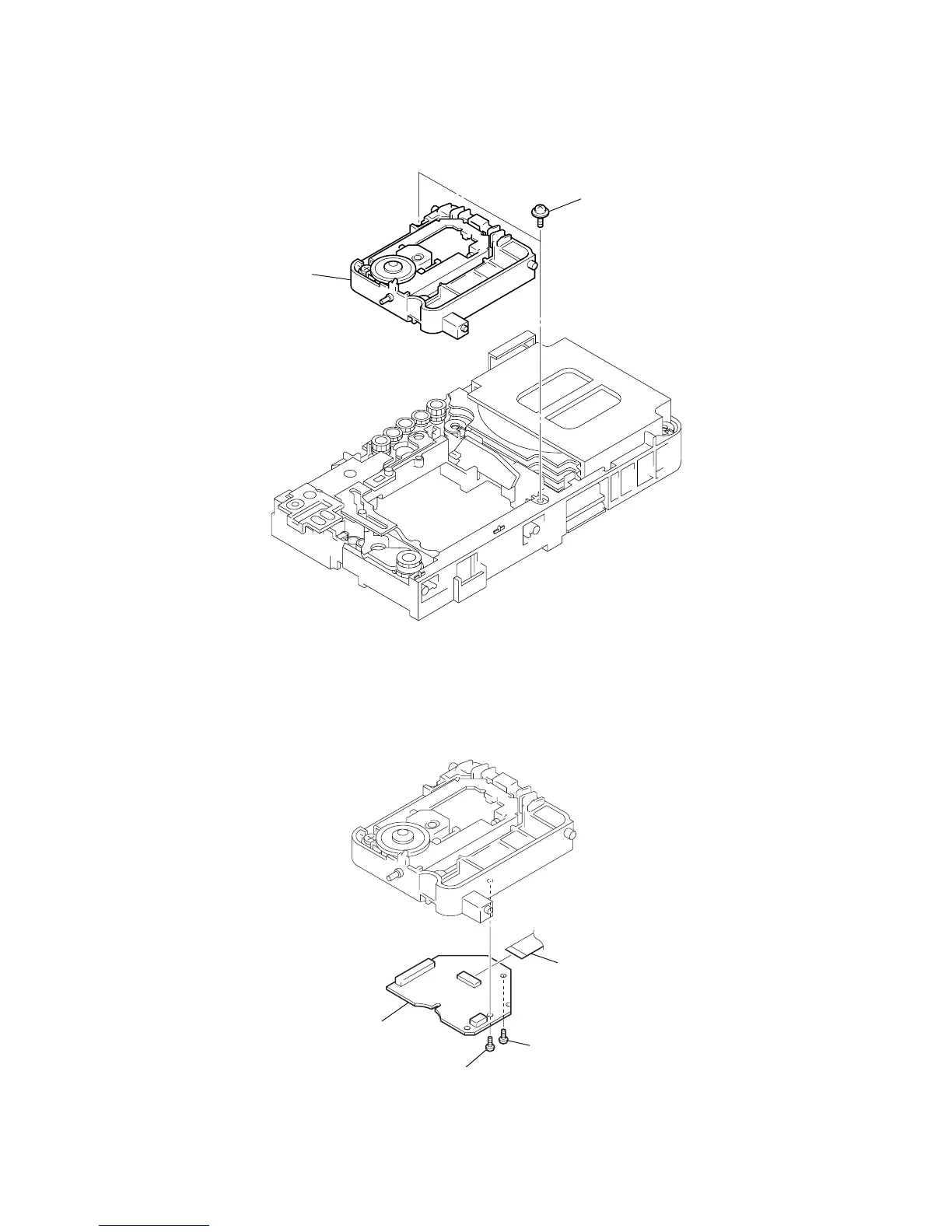

2-14. BASE UNIT (DVBU27)
2-15. RF BOARD
1
two floating
screw
s
(+PTPWH2.6)
2
base unit (DVBU27)
1
screw
(+BTP 2.6
×
6
)
2
screw
(+BTP 2.6
×
6
)
4
CNP101
3
RF board
