Sony HCD-BC250 - Waveforms; RF Board; DMB07 Board

37
HCD-BC150/BC250

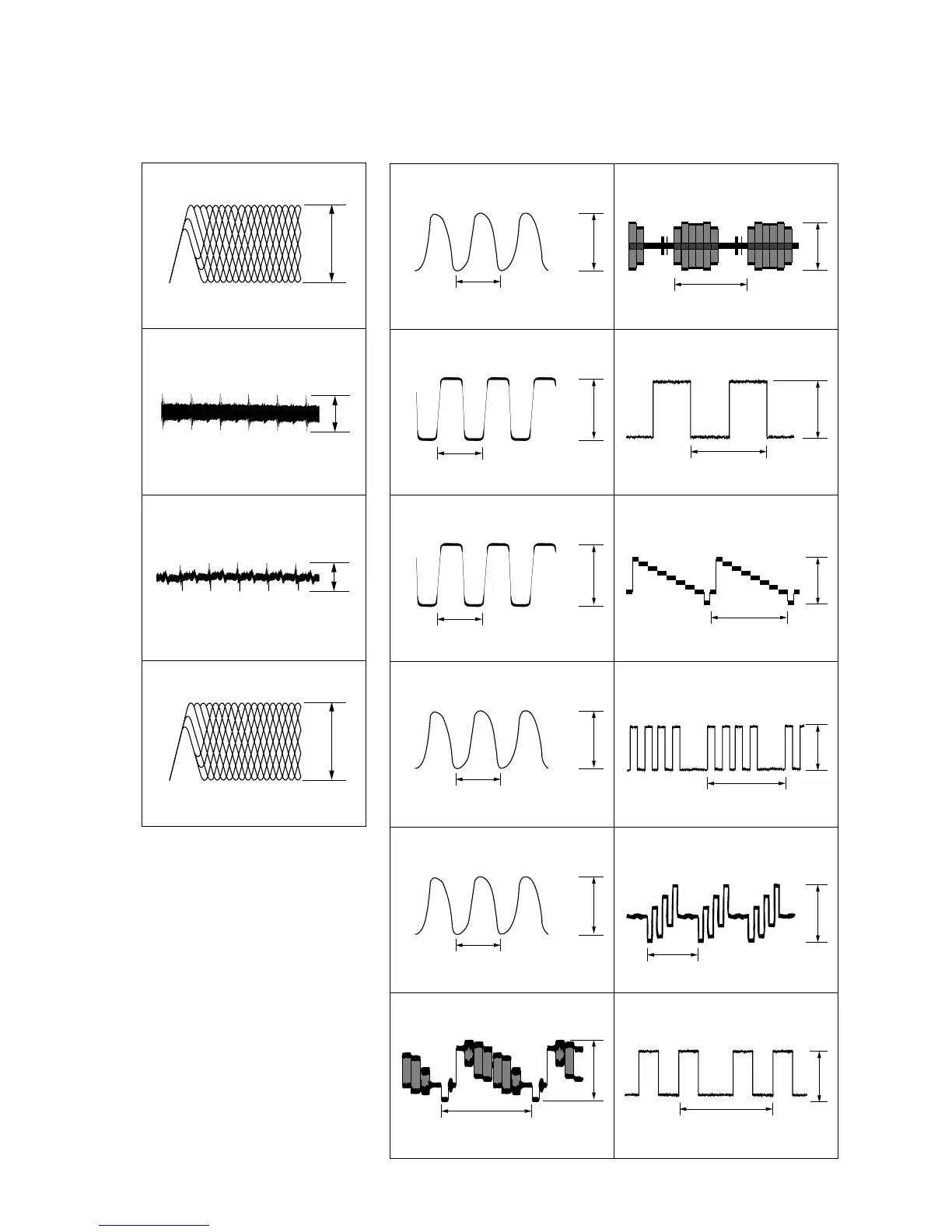

•Waveforms
– RF Board –
– DMB07 Board –
1 IC001 1 (DVDRFP)
800 mVp-p
200 mV/DIV, 100 ns/DIV
2 IC001 el (TE)
0.5 Vp-p
500 mV/DIV, 1 ms/DIV
3 IC001 r; (FE)
0.3 Vp-p
100 mV/DIV, 1 ms/DIV
4 IC001 tj (RFAC)
1.3 Vp-p
500 mV/DIV, 100 ns/DIV
5 IC906 8 (XTO)
37 ns
4.5 Vp-p
1 V/DIV, 10 ns/DIV
7 IC906 0 (SO2)
29.5 ns
4.6 Vp-p
8 IC906 qd (SO3)
29.5 ns
4.6 Vp-p
1 V/DIV, 10 ns/DIV
1 V/DIV, 10 ns/DIV
9 IC906 3 (MO1)
37 ns
5.6 Vp-p
1 V/DIV, 10 ns/DIV
0 IC901 r; (XTAL)
50 ns
3.8 Vp-p
1 V/DIV, 20 ns/DIV
qa IC207 <zcz (VDAC_0)
H
1.5 Vp-p
500 mV/DIV, 20
µ s/DIV
qs IC207 <zx, (VDAC_1)
H
1.2 Vp-p
500 mV/DIV, 20
µ s/DIV
qd IC207 <zxb (VDAC_2)
(AEP,UK)
H
1.1 Vp-p
500 mV/DIV, 20 µ s/DIV
qd IC207 <zxb (VDAC_2)
(EXCEPT AEP,UK)
H
1.3 Vp-p
500 mV/DIV, 20 µ s/DIV
qf IC207 <zxx (VDAC_3)
(AEP,UK)
H
1.1 Vp-p
500 mV/DIV, 20 µ s/DIV
qf IC207 <zxx (VDAC_3)
(EXCEPT AEP,UK)
H
950 mVp-p
200 mV/DIV, 20 µ s/DIV
qg IC207 <zz. (VDAC_4)
(AEP,UK)
H
1.2 Vp-p
500 mV/DIV, 20 µ s/DIV
Ver 1.3
