Sony HCD-BX6AV - Page 37

37

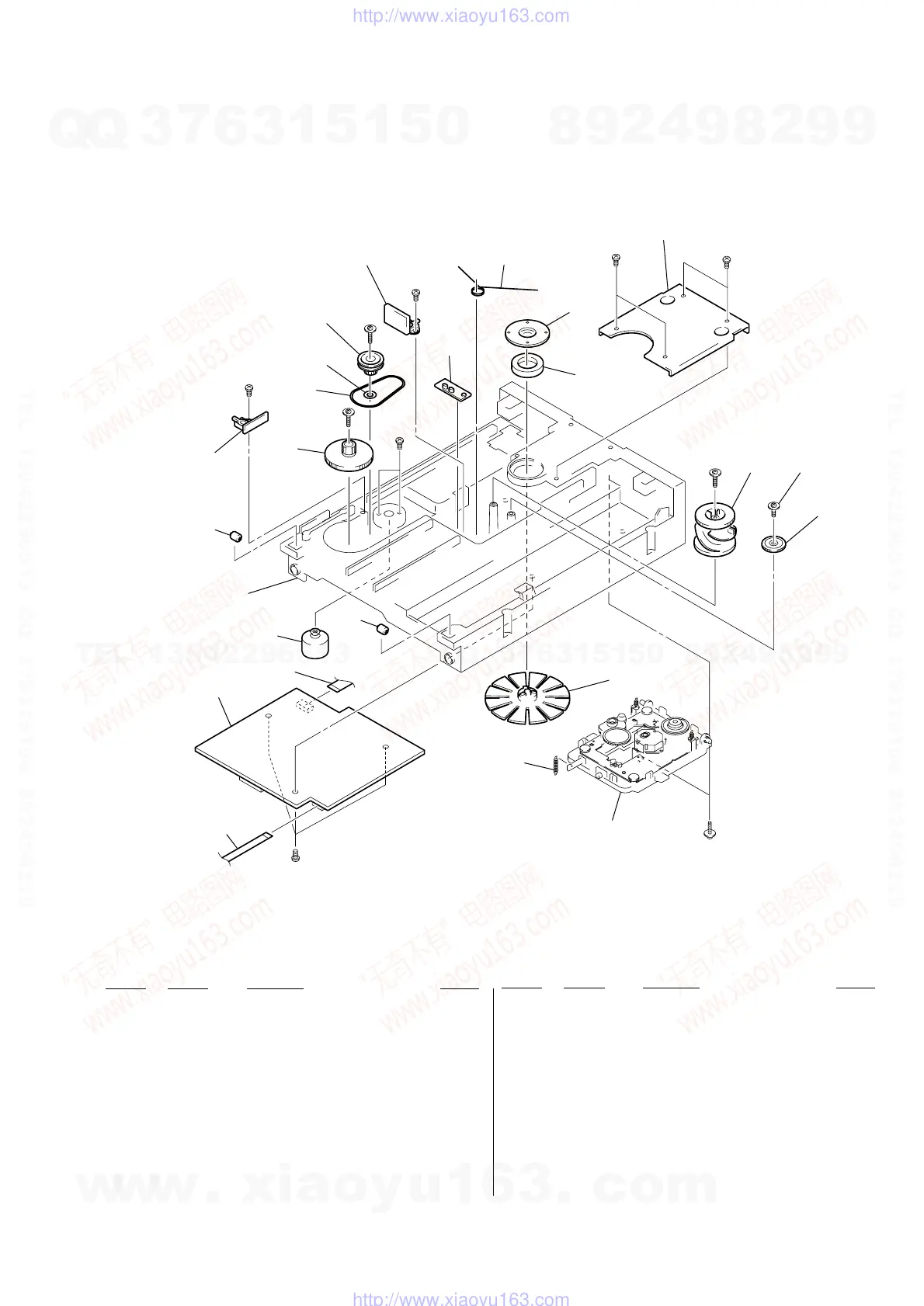

(5) CD MECHANISM DECK SECTION-2
(EXL-M7)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251 1-769-856-11 WIRE (FLAT TYPE) (5 CORE)
252 4-221-897-01 CAM, UD
253 4-992-191-01 UD-GEAR
254 4-992-195-01 MAGNET
255 1-775-133-11 WIRE (FLAT TYPE) (15 CORE)
256 4-992-197-01 BELT, LOADING GEAR
257 4-992-198-01 PULLEY (B), GEAR
258 4-992-199-01 GEAR, SLIDE
259 4-992-200-01 ROLLER
261 4-992-192-01 SPRING, BRAKE CAM
262 4-992-193-01 LEVER, SW
263 1-674-791-11 SW D BOARD
264 1-674-790-11 SW C BOARD
265 4-229-512-01 SCREW, FLANGE
266 4-229-509-01 HOLDER, MAGNET
267 4-229-511-01 WASHER, POLYETHYLENE
268 A-4473-611-A DECORD BOARD, COMPLETE
269 4-221-900-01 COVER, MAGNET
270 4-221-903-01 SPRING, MECHANICAL BASE
271 4-229-510-01 CHASSIS, MAIN
M104 X-4948-766-1 MOTOR ASSY (A) (DISC TRAY SLIDE)
259
264
263
257
267
256
258
262
261
254
269
266
252
253
265
251
270
268
255
271
259
#15
#15
#9
#20
#10
#11
#13
not supplied
#13
#3
Base unit block
#8
M104
