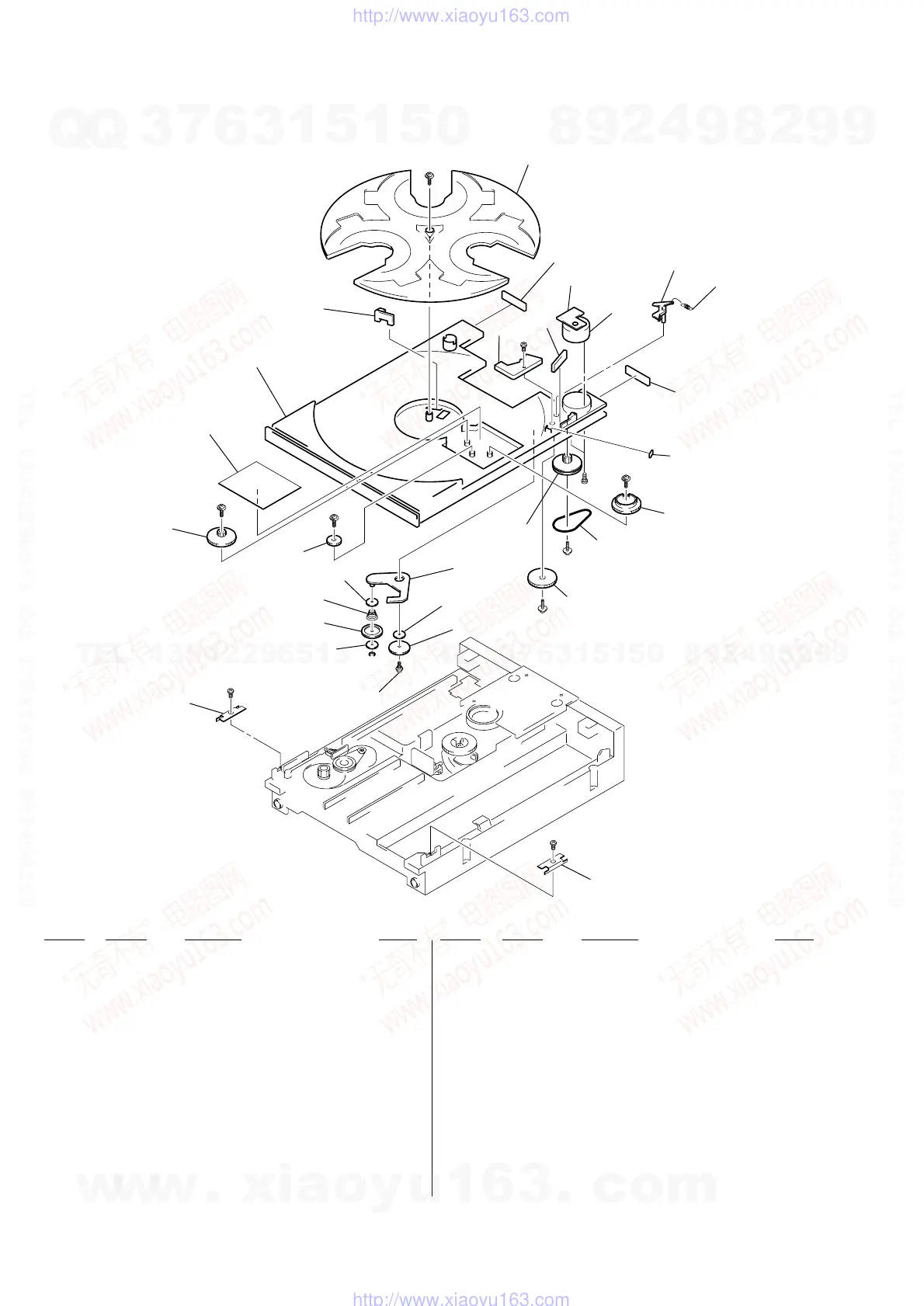

(4) CD MECHANISM DECK SECTION-1
(EXL-M7)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 1-674-792-11 MOTOR BOARD
202 4-229-502-01 PLATE (A), CHANGER
203 4-229-503-01 BASE, CHANGER
204 4-221-895-01 SHEET, BLIND
205 4-221-896-01 LEVER, SENSOR SW
206 4-992-182-01 SPRING, SENSOR (SW) LEVER
207 4-992-170-01 BELT, LOADING
208 4-992-171-01 PULLEY, GEAR
209 4-221-894-01 GEAR, TR
210 4-229-504-01 GEAR, TR LOCK
211 4-221-893-01 GEAR (C), RELAY
212 4-992-187-01 CUSHION
213 4-992-186-01 CUSHION, SW LEVER
214 4-992-173-01 GEAR (B), RELAY
215 4-992-183-01 SCREW, RELAY GEAR (B)
216 4-992-174-01 GEAR, CHANGE
217 4-992-184-01 WASHER, CHANGE GEAR
218 4-229-505-01 SPRING, CHANGE GEAR
219 4-992-185-01 WASHER, CHANGE PLATE
220 4-992-172-01 GEAR (A), RELAY
221 4-221-902-01 PLATE, T/T
223 1-674-789-11 SW B BOARD
224 1-674-788-11 SW A BOARD
225 4-229-499-01 GUIDE, RAIL
226 4-229-529-01 TABLE, TURN
227 4-229-500-01 PROTECTOR, TURN TABLE
M103 X-4948-765-1 MOTOR ASSY (DISC TABLE TURN)
