Sony HCD-BX6AV - 3 Disassembly

6

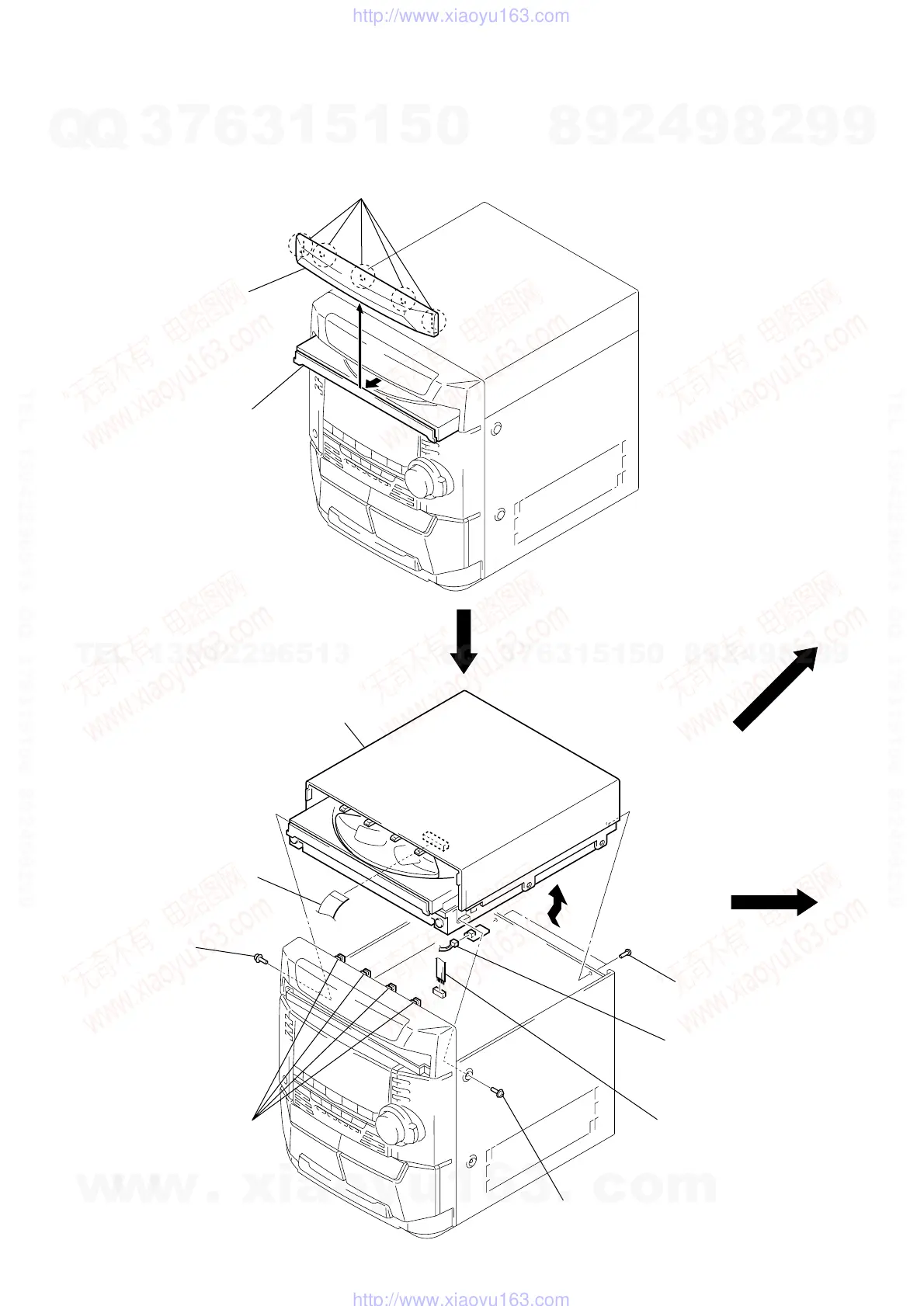

CD DOOR
CD ASS’Y
Note: Follow the disassembly procedure in the numerical order given.
SECTION 3
DISASSEMBLY
1 Pull out the CD tray.
4 Push the CD tray.
2 five claws
3 CD door
4 four claws
6 wire (flat type) (22core)
(CN705)
1 screw
(M3 ×12)
1 screw
(M3 ×12)
2 two screws
(BVTP3 × 12)
3
8 CD ass'y
7 harness (6core)
(CN304)
5 connector
(CN703)
CD TRAY (page 9)
