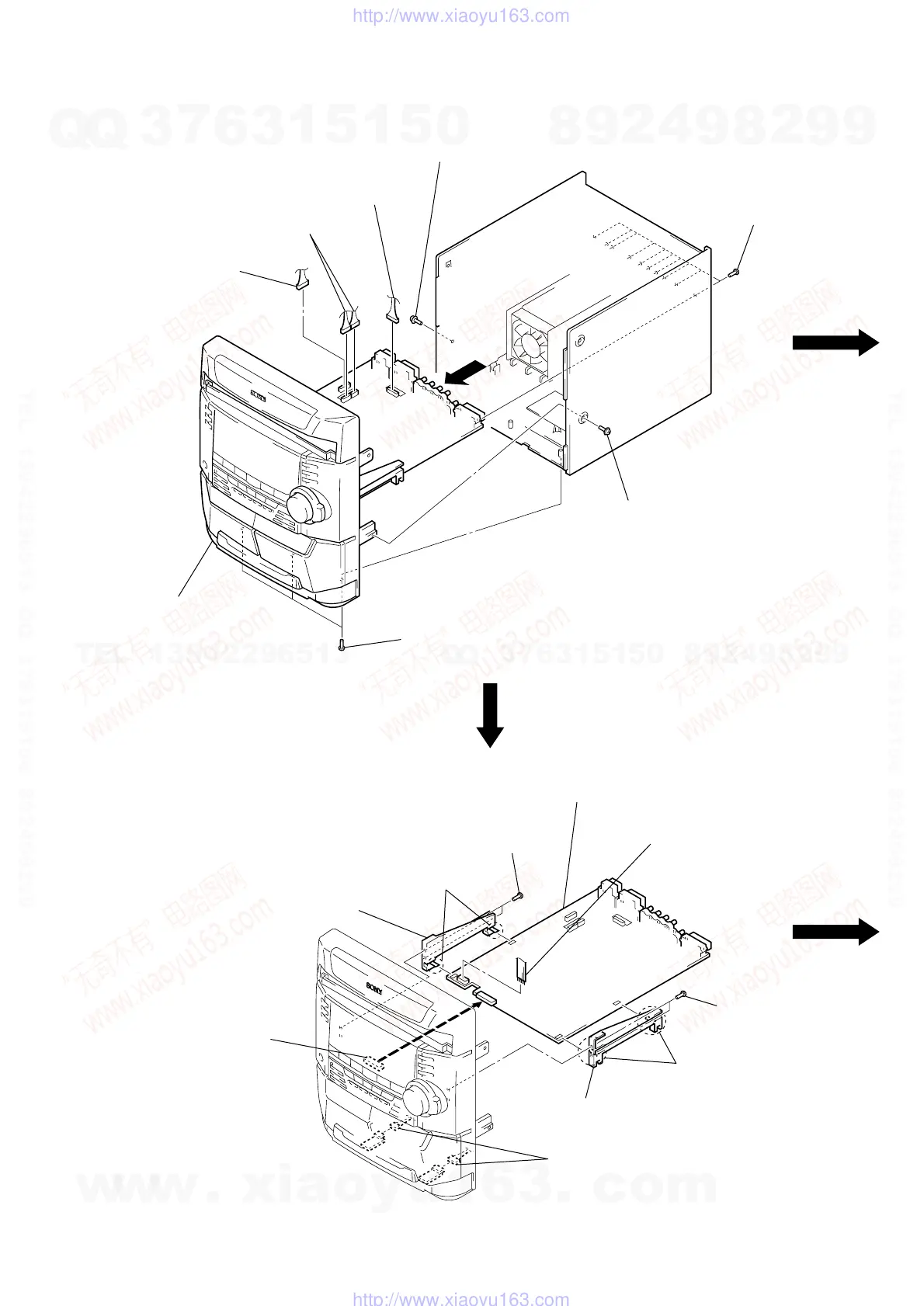

FRONT PANEL SECTION
MAIN BOARD
1 connector
(CN301)
1 connector
(CN502)
3 ten screws
(BVTP3 × 10
)
1 two connectors
(CN302, 305)
4 screw (M3 × 12)
2 three screws
(BVTP3 × 12)
5 front panel section
4 screw (M3 × 12)
4 connector
(CN101)
6 main PC holder (L)
5 two claws
3 two screws
(BVTP3 × 12)
3 two screws
(BVTP3 × 12)
7 two claws
1 two connectors
8 main PC holder (R)
9 MAIN board
2 harness (5core)
(CN303)
