Sony HCD-BX6AV - Page 8

8

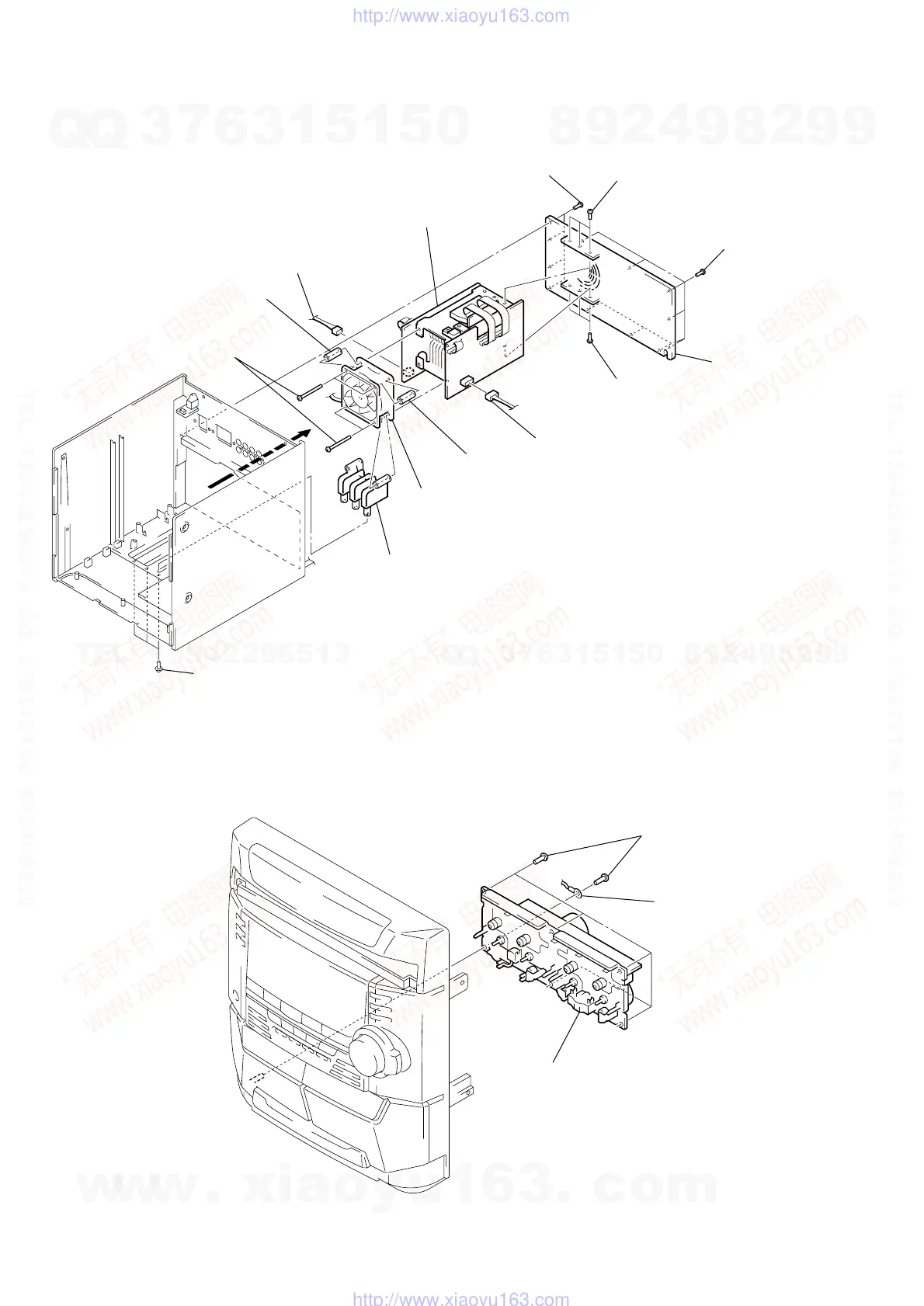

FRONT BOARD AND CENTER/REAR BOARD SECTION, DC FAN (M505)
8 four screws
(3 × 30)
3 four screws
(BVTP3 × 10)
3 eight screws
(BVTP3 × 10
)
5 three screws
(BVTP3 × 6)
5 three screws
(BVTP3 × 6)
qs FRONT board and
CENTER/REAR board
section
7 connector
(CN505)
9 holder
4
6 rear cover
2 three screws
(PTPWH4 × 10)
1 connector
(CN501)
9 holder
qa DC fan
(M505)
0 main chassis holder
MECH DECK (CWL-44-RR)
1 six screws
(BVTP3 ×8)
2 harness
3 mech deck (CWL-44-RR)
