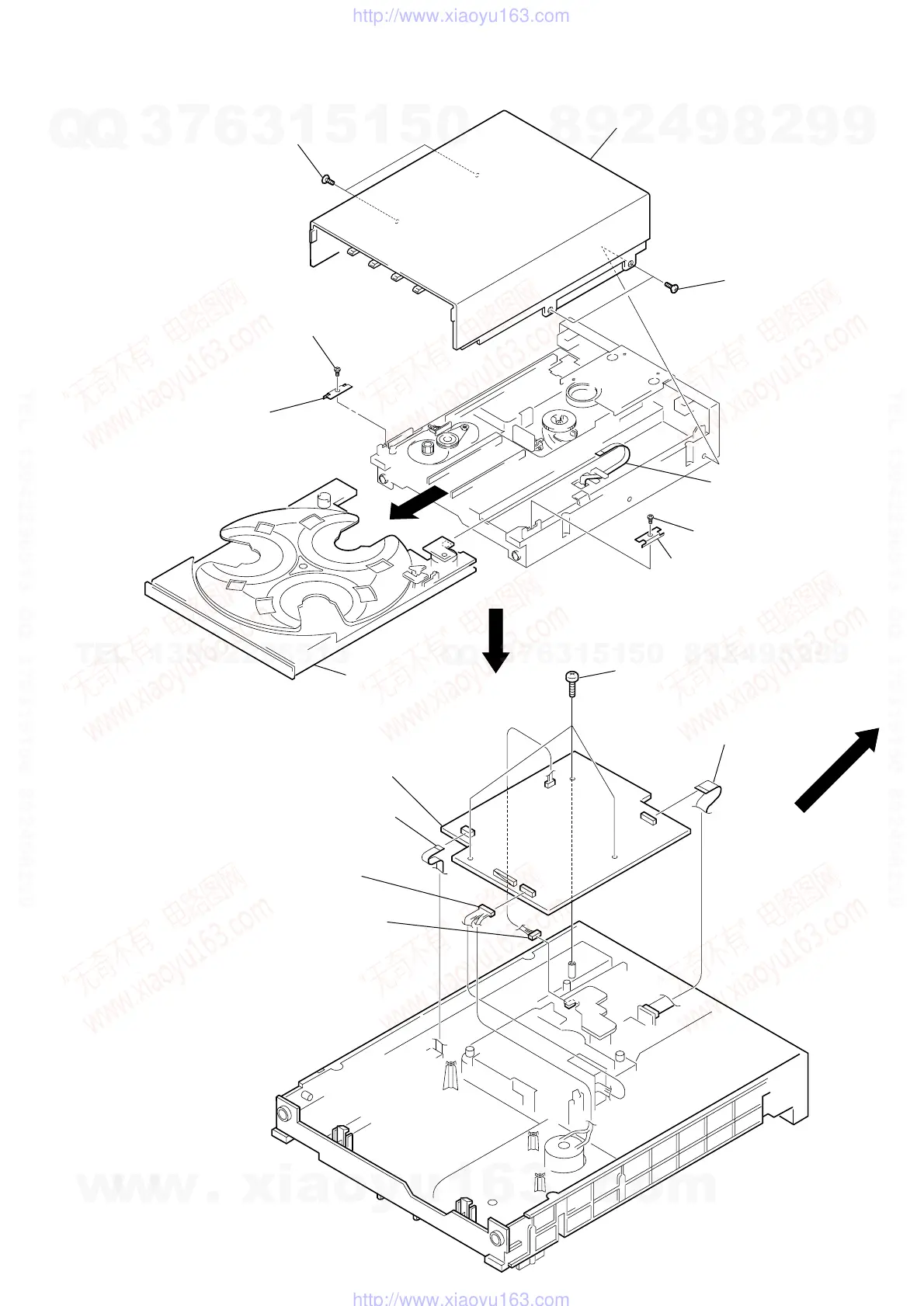

CD TRAY
1 two screws
(KTP3 × 8)
2 top cabinet
1 two screws
(KTP3 × 8)
4 screw
(BTP3 × 10)
6 screw (BTP3 × 10)
7 bracket
5 bracket
8 CD tray
3 wire (flat type) (5core
)
(CN06)
DECORD BOARD
4 three screws
(BTP2.6 × 6)
6 DECORD board
1 wire (flat type) (5core)
(CN706)
2 wire (flat type) (15core
)
(CN701)
3 connector
(CN707)
5 connector
(CN702)
