Sony HCD-C900 - Page 26

8
HCD-C700/C900

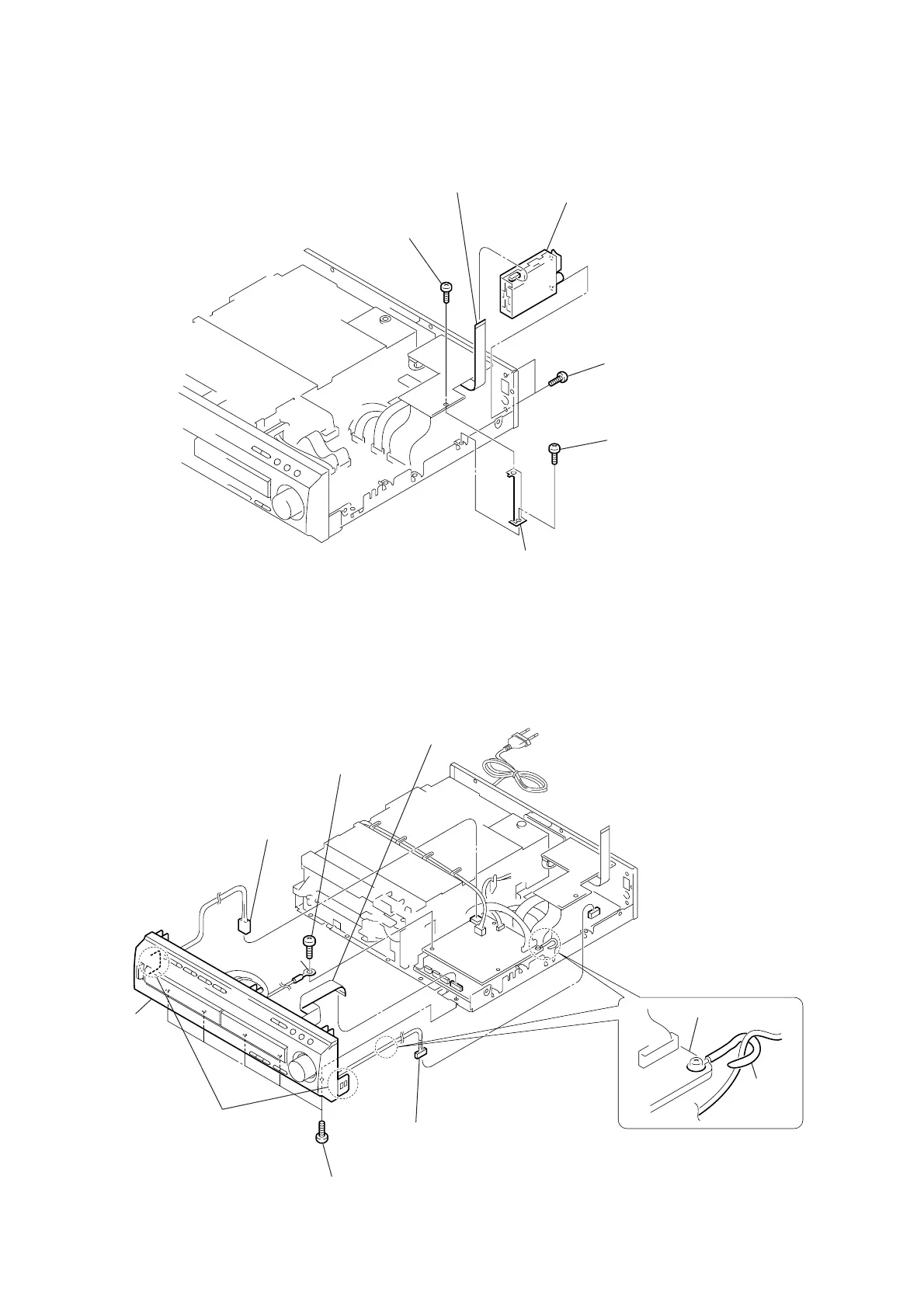

2-2. TUNER UNIT
2-3. FRONT PANEL SECTION
1 Screw,
+BVTP
(3
× 8)
2 Screw,
+BVTP
(3 × 8)
3 Chassis
5 Two screws,
+BVTP
(3 × 8)
6 Tuner unit
4 Flexible flat cable
(13core) (Tuner unit)
3 Screw,
+BVTP
(3 × 8)
5 Five Screws,
+BVTP
(3
× 8)
Wiring
stopper
4 Wire
Power board
2 Connector
(CN902)
8 Front panel
section
1 Connector
(CN309)
7 Flexible flat cable (17core)
(CN005)
6 Two claws
HARNESS
PROCESSING
