12
HCD-C700/C900

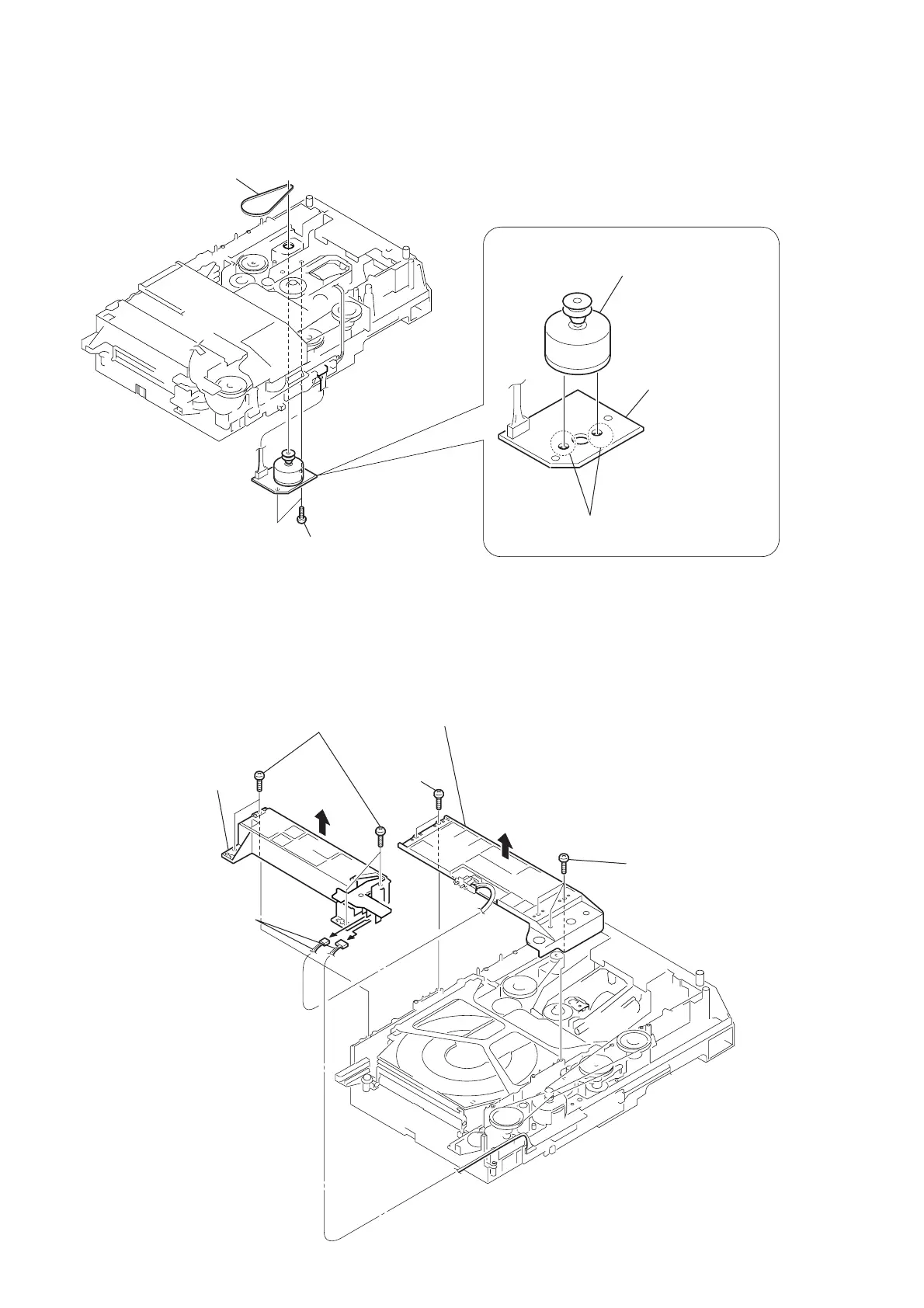

2-10. CLAMP MOTOR BOARD, MOTOR (CLAMP) ASSEMBLY
2-11. FITTING BASE (GUIDE) ASSEMBLY, BRACKET (CHASSIS)
2 Two screws
+BVTP
(2.6 × 8)
1 Belt (mode)
3 Remove the two solderings
5 Motor (clamp)
assembly (M701)
4 CLAMP MOTOR
board
1 Two connectors
(CN709, 715)
4 Two screws
+BVTP
(2.6
× 8)
6 Bracket
(chassis)
5 Three screws
+BVTP
(2.6
× 8)
3 Fitting base
(guide) assembly
2 Four screws
+BVTP
(2.6 × 8)
