Sony HCD-C900 - Page 31

13
HCD-C700/C900

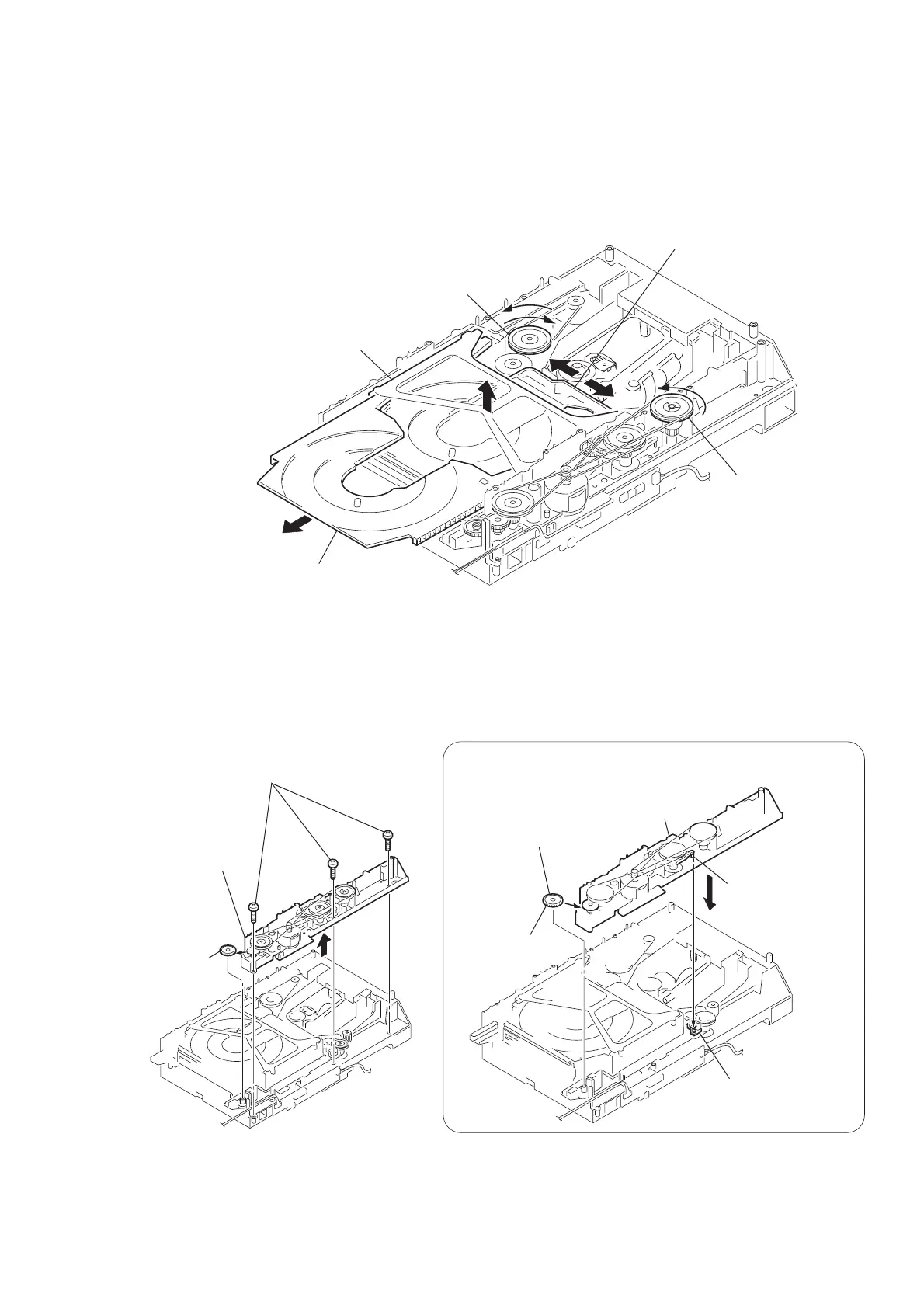

2-12. TRAY (240)
2-13. CHASSIS (MOLD B) SECTION
1 Three screws
+BVTP
(2.6 × 8)
2 Insert the gear (eject)
under the gear (LD
deceleration).
1 Insert the portion A of
chassis (mold B) section
into the portion B of
slider (selection).
Gear (eject)
Portion A
Portion B of
slider (selection)
3 Gear (eject)
2 C hassis (mold B)
section
C hassis (mold B)
section
PRECAUTION DURING CHASSIS (MOLD B)
SECTION INSTALLATION
A
B
Pulley (LD)
Stocker section
Tray (240)
Slider (selection)
Pulley (mode)
1 Rotating the pulley (LD), shift the slider (selection) in the arrow A direction.
2 Rotating the pulley (mode) in the arrow direction, adjust the tray (240) to be removed.
3 Rotating the pulley (LD), shift the slider (selection) in the arrow B direction.
4 Rotating the pulley (mode) in the arrow direction, remove the tray (240) to be removed.
