Sony HCD-C900 - Page 32

14
HCD-C700/C900

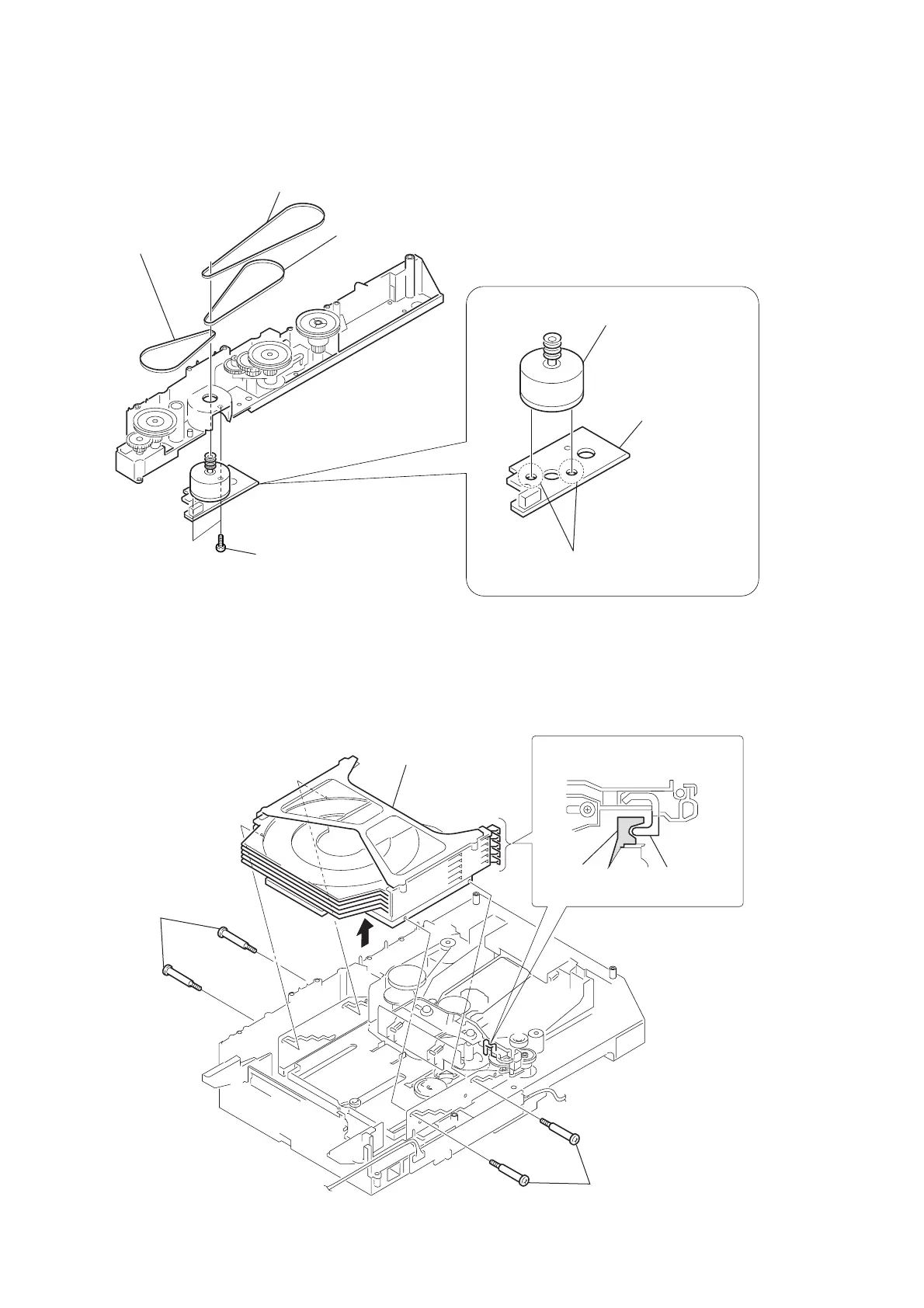

2-15. STOCKER SECTION
3 Stocker section
2 Two step screws (J)
1 Two step screws (J)
Hook the portion A of tray (240)
to the slider (selection).
Portion A
of tray (240)
Sticking of
slider (selection)
PRECAUTION DURING STOCKER
SECTION INSTALLATION
2-14. LOAD MOTOR BOARD, MOTOR (LOADING) ASSEMBLY
4 Two screws
+BVTP
(2.6 × 8)
7 Motor (loading)
assembly (M702)
6 LOAD MOTOR
board
1 Belt (communication)
3 Belt (loading)
2 Belt (loading)
5 Remove the two solderings
