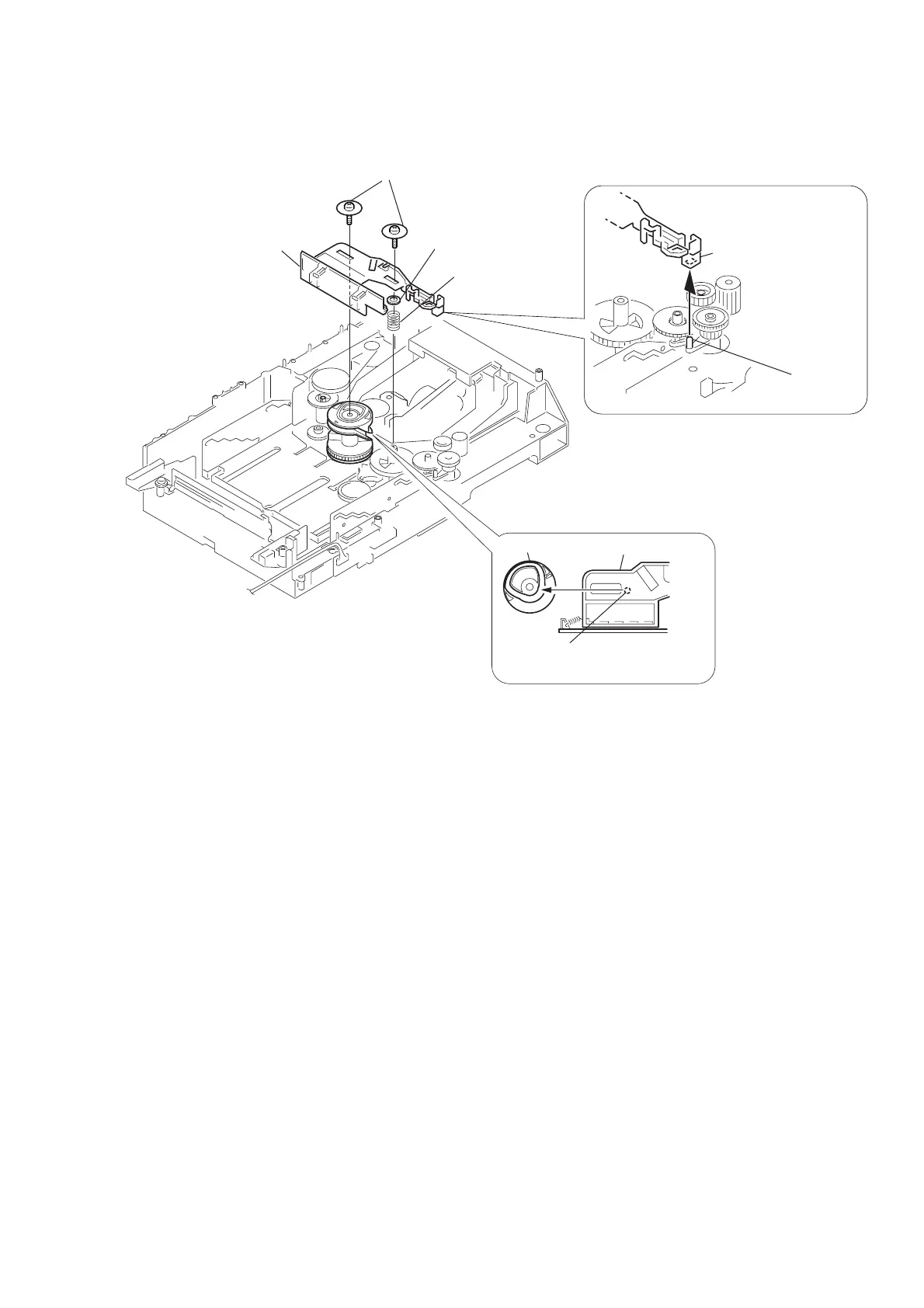

2-16. SLIDER (SELECTION), TENSION SPRING (SHUTTER), SLIDER (SHUTTER)
PRECAUTION DURING SLIDER
(SELECTION) INSTALLATION (1)
PRECAUTION DURING SLIDER
(SELECTION) INSTALLATION (2)
1 Two floating screws
+PTPWHM,
(2.6 x 6)
2 Washer, 8
3 Compression
spring (gear A)
4 Slider (selection),
Tension spring (shutter),
Slider (shutter)
Slider (selection)
Gear (choking)
Insert a convex portion into
the groove of gear (chucking).
Insert the slider (selection)
into the portion A.
Portion A
