16
HCD-C700/C900

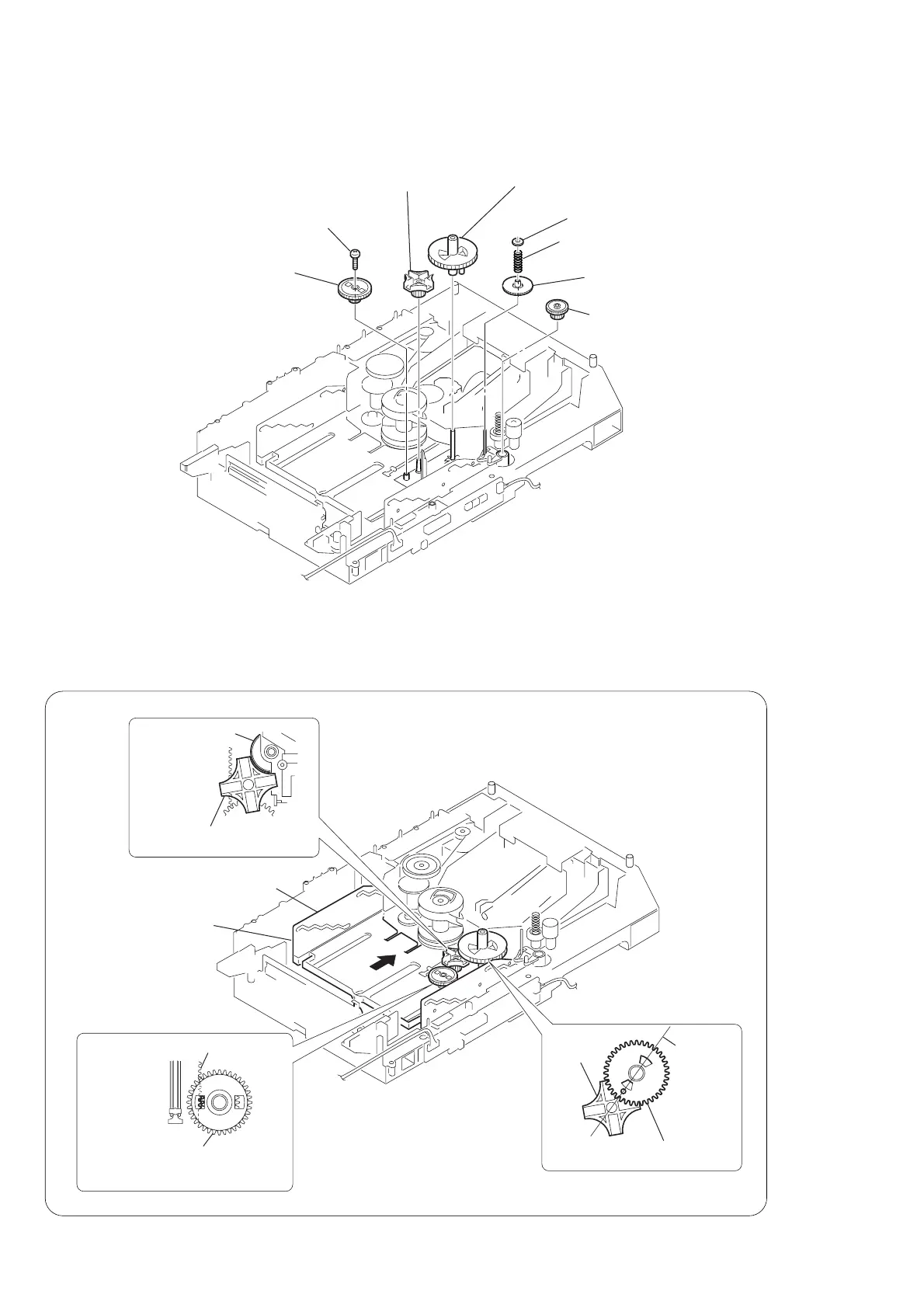

PRECAUTION DURING GEAR (GEAR U/D SLIDER), GEAR (GEAR B), GEAR (GEAR A) INSTALLATION
1 Slide the slider (U/D)
fully in the arrow
direction.
Slider (U/D)
3 Gear (gear B)
2 Gear (U/D slider)
4 Gear (gear A)
Portion A
Adjust the gear (gear B) with the
portion A as shown.
Slider (U/D) gear
Adjust the gear so that it meshes with
the bottom tooth of slider (U/D) gear,
as shown.
Gear
(gear B)
linearly
Adjust so as to be aligned with
gear B linearly, as shown.
7 Screw
+BVTP
(2.6 × 8)
6 Gear (gear B)
8 Gear (U/D slider)
5 Gear (gear A)
2 Washer
3 Compression spring
4 Gear (selection
)
1 Gear (relay)
2-17. GEAR (GEAR A), GEAR (GEAR B), GEAR (U/D SLIDER)
