Sony HCD-D290 - Page 28

– 28 –

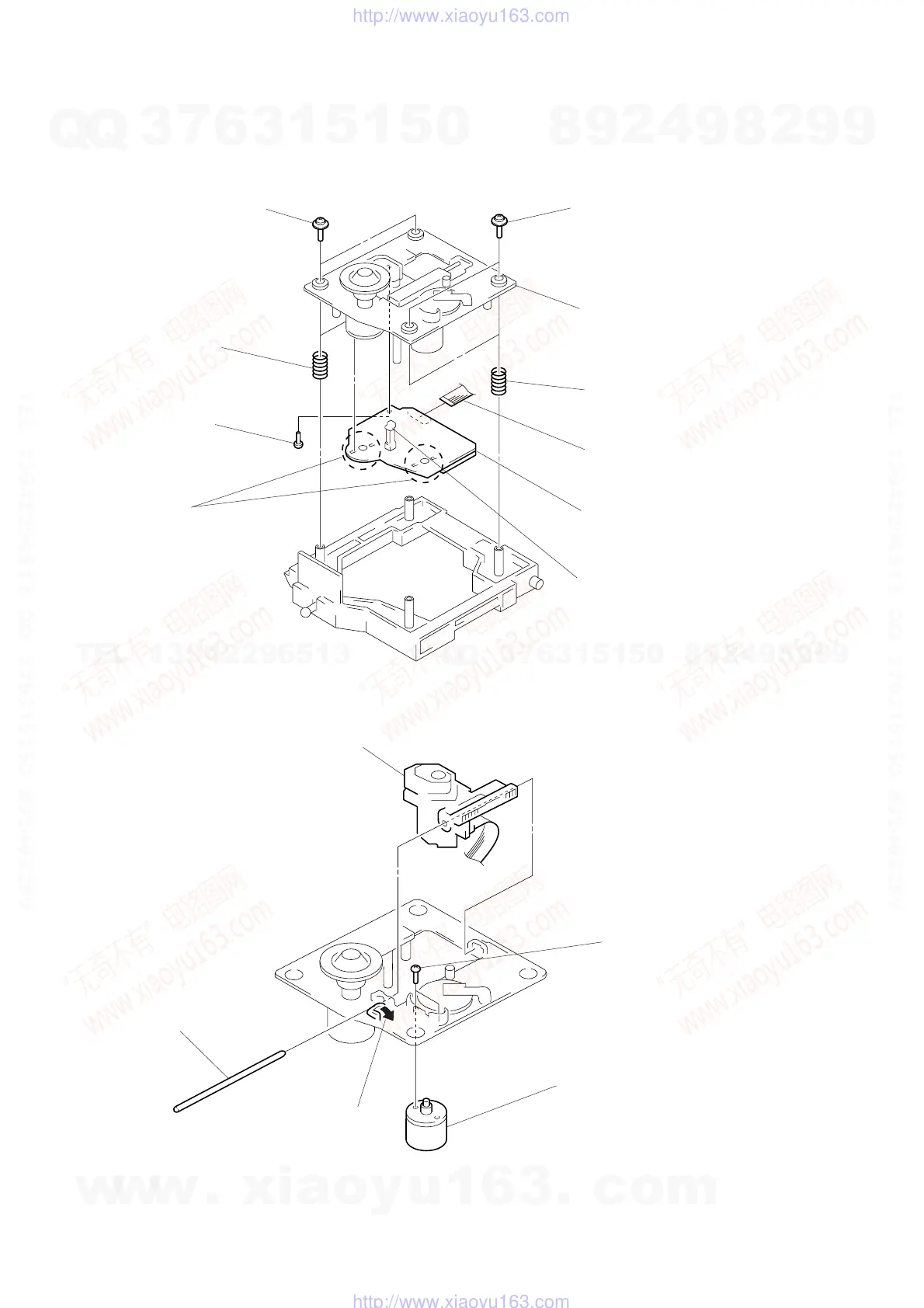

BD BOARD
OPTICAL PICK-UP, SLED MOTOR
6 Removal
the four solders.
1 two screws
(PTPWH M2.6
× 6)
1 claw
2 sled shaft
3 optical pick-up
3 two springs
5 screw
(BVTP 2.6
× 8)
1 two screws
(PTPWH M2.6
× 6)
2 optical pick-up
section
3 two springs
4 flat wire
(CN101)
7 BD board
limit switch
4 two screws
(P2
× 3)
5 sled motor
