– 92 –
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearrance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
SECTION 7
EXPLODED VIEWS
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
• Abbreviation
AR: Aurzenchin EE: East European
AUS: Australian MX: Mexican
CND: Canadian
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 3 4-987-134-21 PANEL, BACK (XB3: PX)
* 3 4-987-134-31 PANEL, BACK (XB3: MX)
4 4-956-370-12 BAND, PLUG FIXED (UK, AUS)
* 5 A-4303-510-A TCB BOARD, COMPLETE (US, CND)
* 5 A-4303-512-A TCB BOARD, COMPLETE (E, AR, MX, AUS, PX)
* 5 A-4303-570-A TCB BOARD, COMPLETE (EE)
* 5 A-4303-576-A TCB BOARD, COMPLETE (AEP, UK)
6 1-769-974-11 WIRE (FLAT TYPE) (13 CORE)
(EXCEPT AEP, EE, UK)
6 1-773-006-11 WIRE (FLAT TYPE) (15 CORE) (AEP, EE, UK)
1 4-929-973-01 SCREW (CASE, 3 POINT)
* 2 4-987-052-11 CASE (D290/ XB3)
* 2 4-987-052-51 CASE (G3300)
* 3 4-987-043-01 PANEL, BACK (D290: US)
* 3 4-987-043-11 PANEL, BACK (D290: CND)
* 3 4-987-043-21 PANEL, BACK (G3300: US)
* 3 4-987-043-31 PANEL, BACK (G3300: CND)
* 3 4-987-043-41 PANEL, BACK (XB3: AEP, UK)
* 3 4-987-043-61 PANEL, BACK (XB3: EE)
* 3 4-987-134-01 PANEL, BACK (XB3: E, AR)
* 3 4-987-134-11 PANEL, BACK (XB3: AUS)

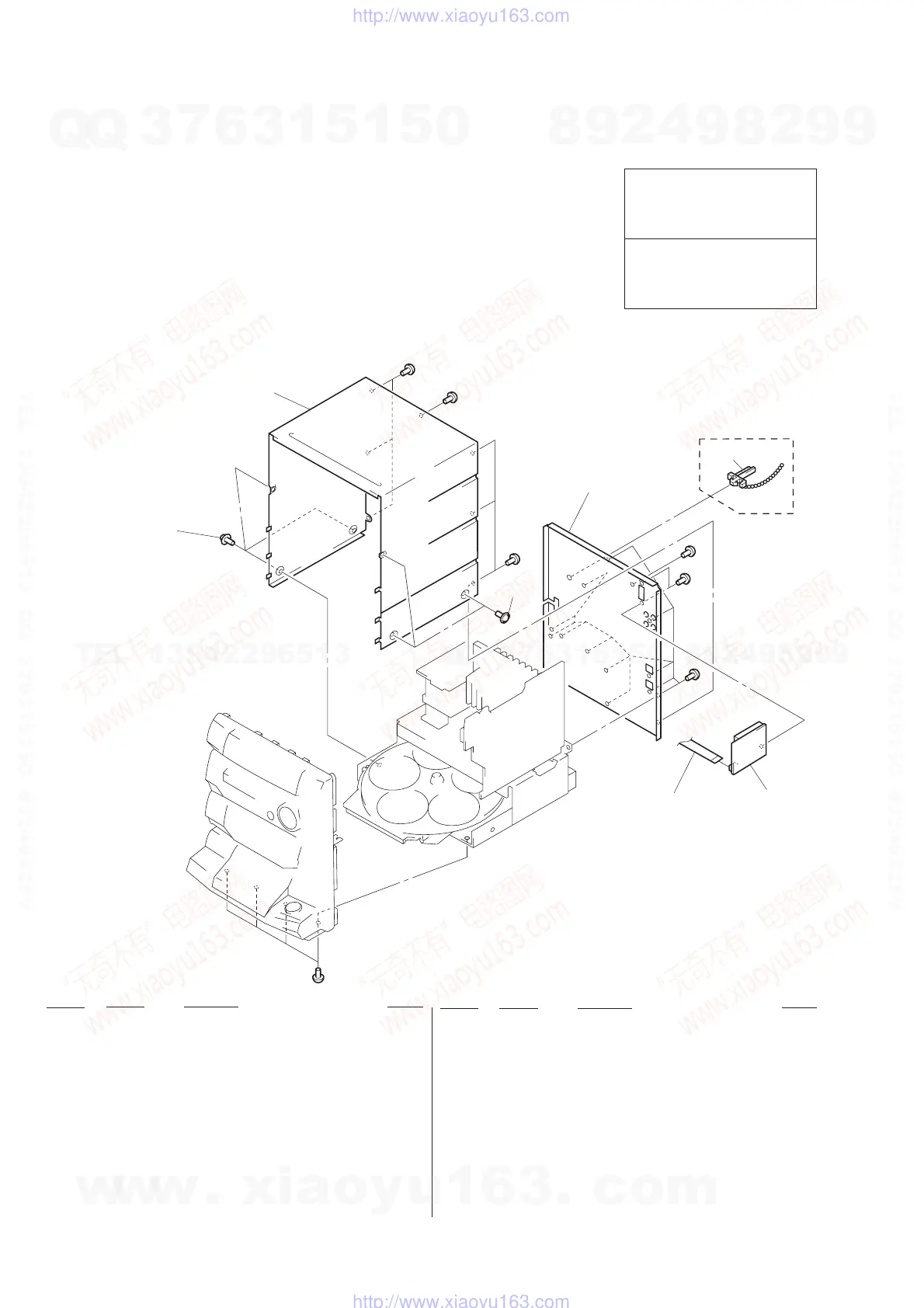

(1) CASE, REAR PANEL SECTION
2
1
3
1
6
5
4
#3
#1
#1
#2
#2
#2
#1
UK, AUS
