– 93 –

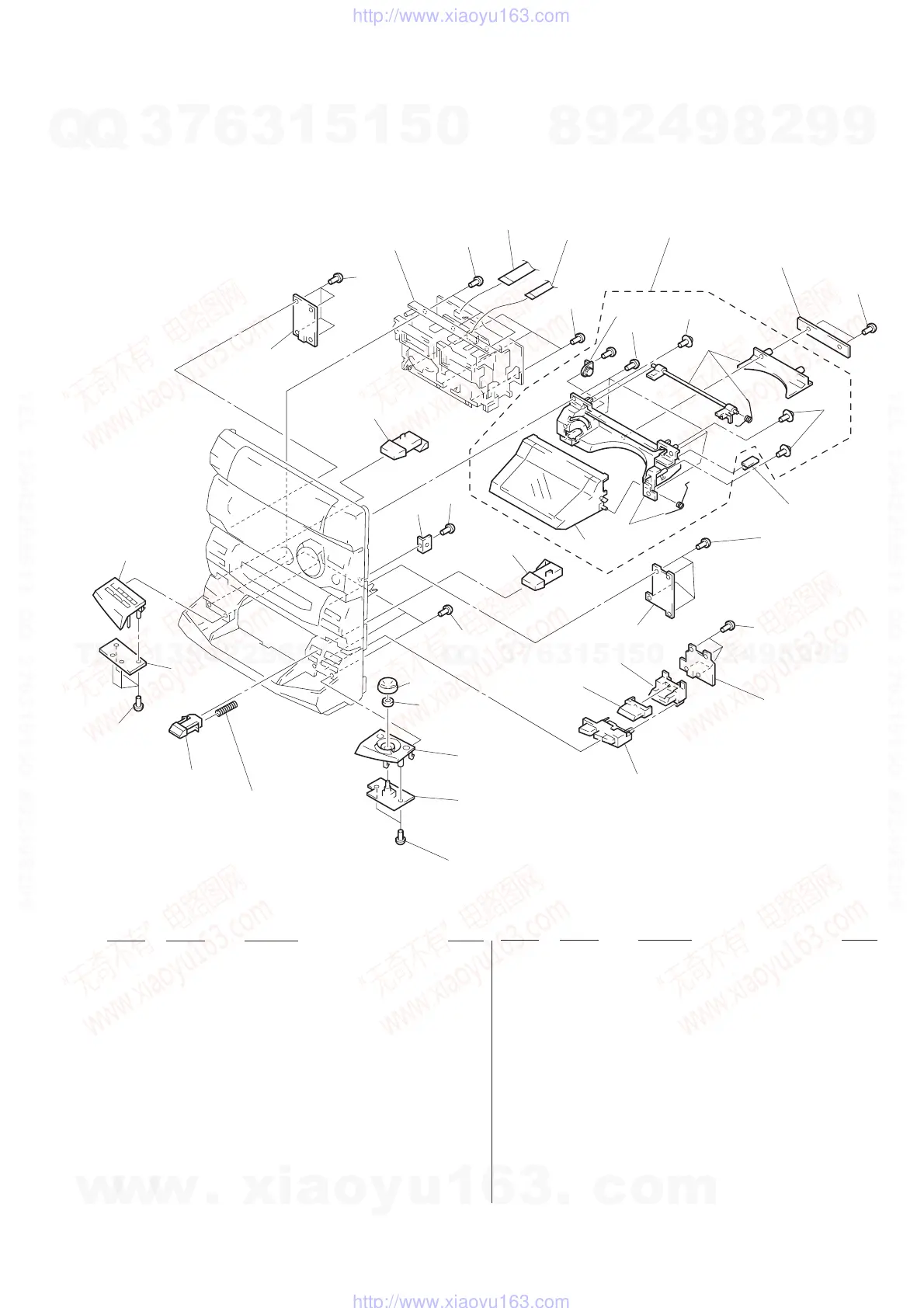

(2) FRONT PANEL SECTION-1
TCM-220WR2
57
57
58
59
57
73
61
57
55
56
54
53
57
52
51
57
72
71
supplied
with S711
70
57
57
65
66
57
67
57
68
69
64
not
supplied
not
supplied
62
57
60
62
63
74
75
#1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 4-987-995-01 SPRING (CD EJECT), COMPRESSION
52 4-987-001-01 BUTTON (EJECT CD)
* 53 1-664-009-11 CD-A SW BOARD
54 X-4948-295-1 PANEL (A) SUB ASSY (D290)
54 X-4948-297-1 PANEL (A) SUB ASSY (G3300)
54 X-4948-348-1 PANEL (A) SUB ASSY (XB3)
* 55 1-664-012-11 TC-A SW BOARD
56 4-986-999-01 BUTTON (EJECT A)
57 4-951-620-01 SCREW (2.6X8), +BVTP
58 1-773-161-11 WIRE (FLAT TYPE) (21 CORE)
59 1-769-949-11 WIRE (FLAT TYPE) (11 CORE)
60 3-354-963-01 DAMPER
* 61 1-664-017-11 LED BOARD
62 4-957-577-01 SCREW PTP WH (2.6X8) (DIA. 10)
* 63 1-664-016-11 DOOR SW BOARD
64 4-987-038-11 LID, DISC (G3300)
64 4-987-038-01 LID, DISC (D290/ XB3)
* 65 4-987-933-01 BRACKET (TA)
66 4-987-000-01 BUTTON (EJECT B)
* 67 1-664-013-11 TC-B SW BOARD
* 68 1-664-010-11 CD-B1 SW BOARD
69 X-4947-969-1 BUTTON (CD STOP) ASSY
70 4-987-037-01 KNOB (JOG)
71 X-4948-296-1 PANEL (B) SUB ASSY (D290/ XB3)
71 X-4948-298-1 PANEL (B) SUB ASSY (G3300)
* 72 1-664-011-11 CD-B2 SW BOARD
73 A-4384-396-A LID ASSY, CD (D290/ XB3)
73 A-4384-446-A LID ASSY, CD (D3300)
74 4-987-014-01 INDICATOR (CD)
