– 95 –

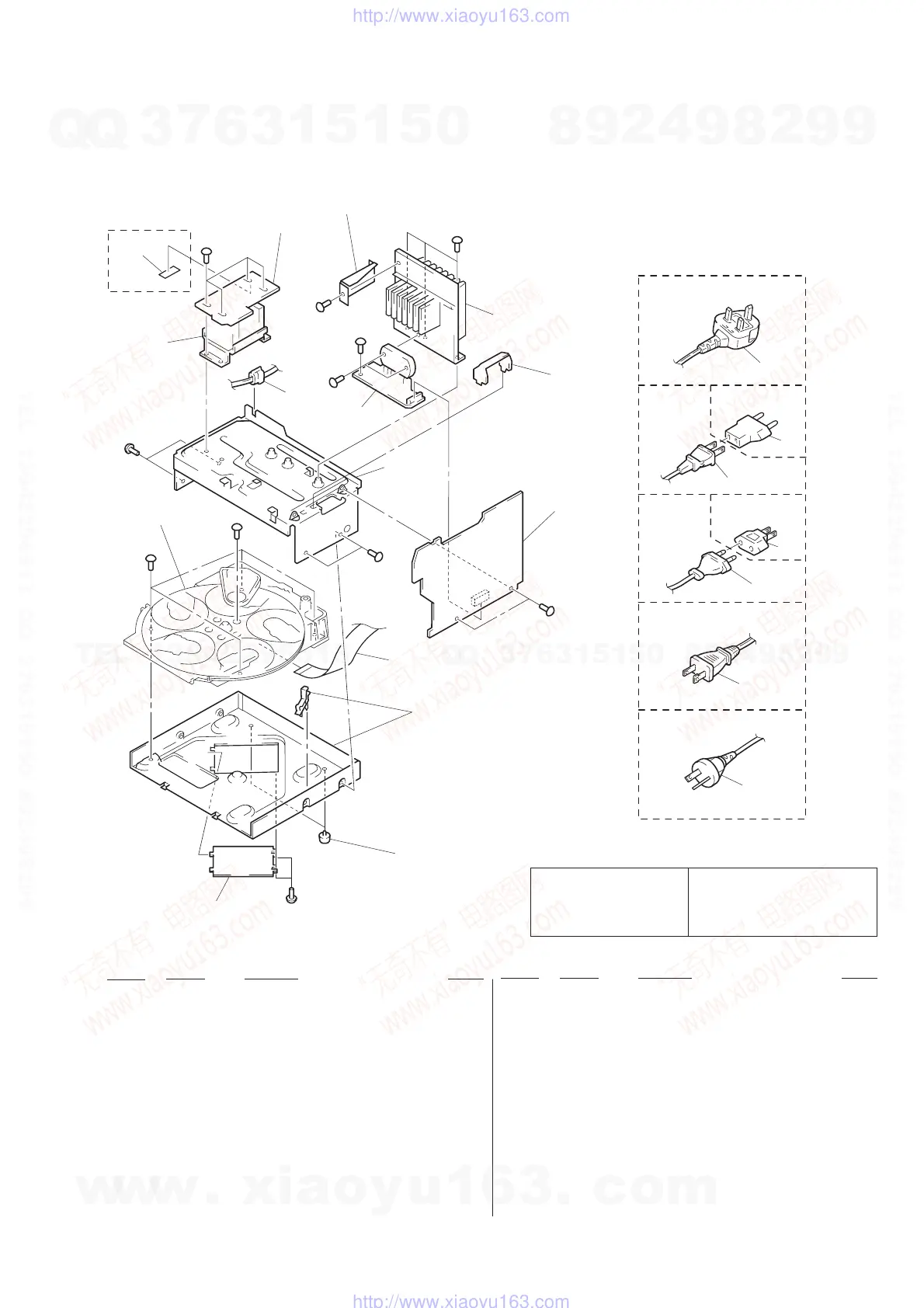

(4) CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
127 4-948-236-01 CUSHION (107)
* 151 1-664-014-11 TRANS BOARD
152 3-701-948-20 LABEL (T4A), FUSE (E, AR, MX, PX)
153 3-703-244-00 BUSHING (FBS001), CORD (EXCEPT XB3:E,MX)
153 4-966-266-01 BUSHING (S) (FBS002), CORD (XB3: E, MX)
* 154 A-4392-442-A POWER AMP BOARD, COMPLETE (US, CND)
* 154 A-4392-460-A POWER AMP BOARD, COMPLETE
(E, AR, MX, AUS, PX)
* 154 A-4392-465-A POWER AMP BOARD, COMPLETE (AEP, EE, UK)
* 155 A-4392-438-A MAIN BOARD, COMPLETE (US, CND)
* 155 A-4392-457-A MAIN BOARD, COMPLETE (E, AR, MX)
* 155 A-4392-461-A MAIN BOARD, COMPLETE (AEP, UK)
* 155 A-4392-703-A MAIN BOARD, COMPLETE (EE)
* 155 A-4392-706-A MAIN BOARD, COMPLETE (AUS, PX)
156 1-777-868-11 WIRE (FLAT TYPE) (19 CORE)
157 X-4941-228-1 FOOT (F22125H-M)
! 158 1-569-007-11 ADAPTOR, CONVERSION 2P (PX)
! 159 1-569-008-11 ADAPTOR, CONVERSION 2P (AR)
* 160 4-988-533-11 HOLDER, PCB
! CNP901 1-558-943-41 CORD, POWER (E, MX, PX)
! CNP901 1-575-042-21 CORD, POWER (US, CND)
! CNP901 1-575-651-21 CORD, POWER (AEP, EE, AR)
! CNP901 1-696-845-11 CORD, POWER (AUS)
! CNP901 1-751-529-11 CORD, POWER (UK)
! T901 1-431-045-11 TRANSFORMER, POWER (US, CND)
! T901 1-431-047-11 TRANSFORMER, POWER (AEP, EE, UK)
! T901 1-431-048-11 TRANSFORMER, POWER (E, AR, MX, AUS, PX)
