– 97 –
HRPE101
(including
r
B)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
264 3-908-613-01 GEAR (S), REEL
265 3-917-141-01 SPRING, COMPRESSION
266 X-3371-305-1 REEL (T) ASSY
267 3-669-465-01 WASHER (1.5), STOPPER
268 X-3370-173-1 TU ASSY
269 3-911-116-21 RIVET, PUSH
* 271 A-2007-131-A AUDIO BOARD, COMPLETE
272 3-930-972-01 DETENT, HALF
273 3-917-142-01 SPRING, COMPRESSION
274 3-911-116-11 RIVET, PUSH
HP101 1-500-093-11 HEAD, MAGNETIC (PLAYBACK) (DECK A)
HRPE1011-500-094-11 HEAD, MAGNETIC (REC/PB/ERASE) (DECK B)
251 3-908-560-01 SPRING, AZIMUTH ADJUSTMENT
252 3-919-684-01 SCREW, AZIMUTH ADJUSTMENT
253 X-3373-113-1 SLIDER (HEAD) ASSY
254 3-908-556-01 SPRING, HEAD TOGGLE
255 3-908-558-02 FITTING BLOCK, HEAD
256 3-908-557-02 ROTARY BLOCK, HEAD
* 257 3-908-559-01 STOPPER, AZIMUTH
258 3-908-555-01 SLIDER (REV SLIDER)
259 3-917-143-11 SPRING, TENSION
260 3-388-848-01 SCREW (P2X6) (B TIGHT)
261 3-939-371-01 SPRING (1), TENSION
262 X-3369-909-1 PINCH LEVER (REV) ASSY
263 X-3369-908-1 PINCH LEVER (FWD) ASSY

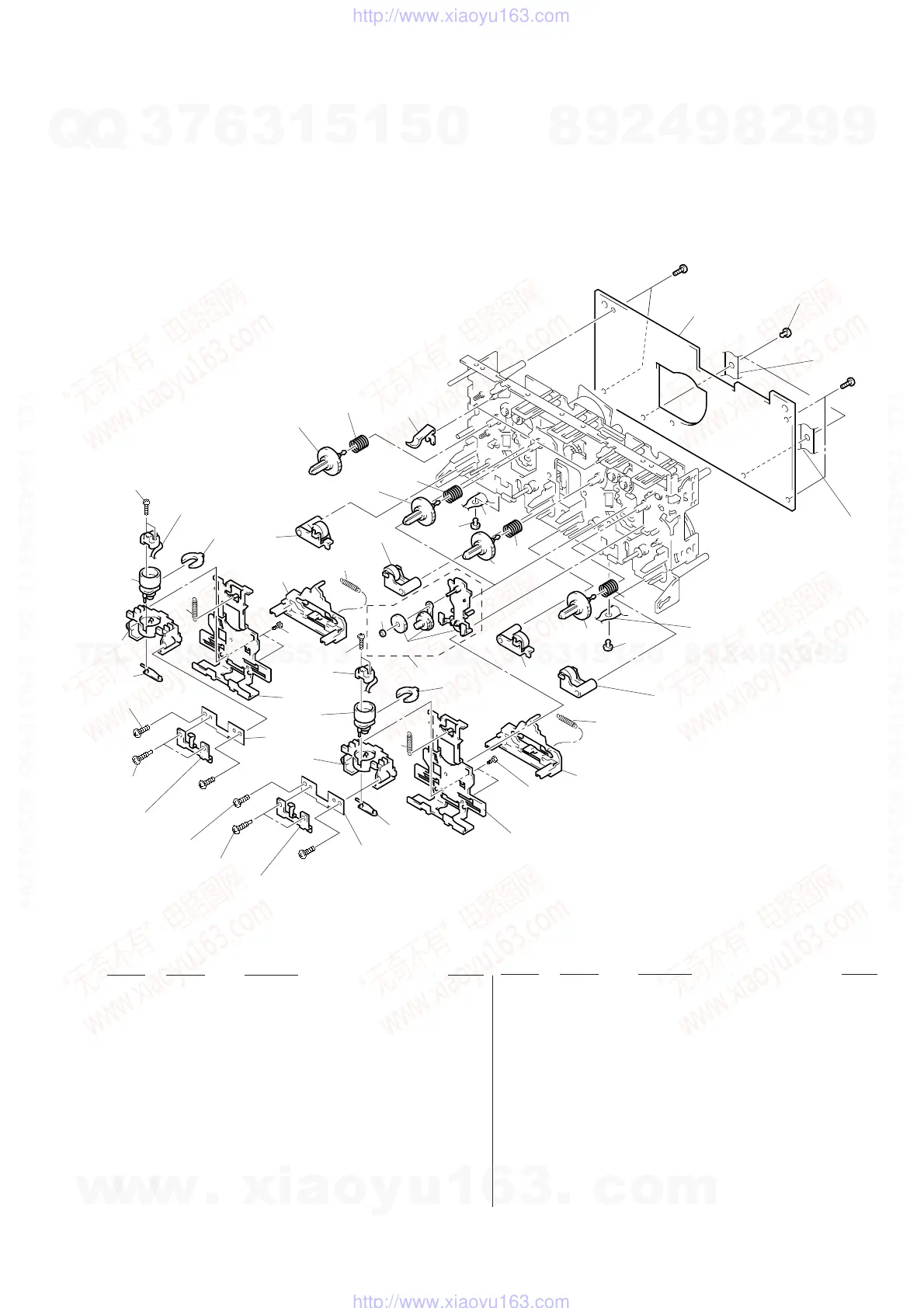

(6) TAPE MECHANISM DECK SECTION-2
(TCM-220WR2)
not supplied
252
251
#7
not supplied
251
252
#7
not supplied
254
not supplied
255
256
254
255
256
not supplied
257
253
HP101
(including
r
A)
262
258
260
261
268
257
259
253
260
258
263
261
262
266
r
B
269
273
265
269
266
273
264
265
272
#6
#6
274
271
(including
r
C)
r
A
r
B
263
259
not supplied
r
A
264
not supplied
267
