4-986-866-01 PANEL, SUB (BLACK) (D60/RX70: US, CND)
4-986-866-61 PANEL, SUB (METALLIC) (GR7: EA3/GR7J)
4-986-866-21 PANEL, SUB (METALLIC) (EXCEPT GR7: EA3/GR7J)
4-986-866-51 PANEL, SUB (BLACK) (EXCEPT D60/RX70: US, CND)
4-986-856-01 PANEL, FRONT (BLACK)
4-962-708-11 EMBLEM (4-A), SONY
4-986-859-01 WINDOW (CD) (D60/RX70: US, CND)
4-986-859-31 WINDOW (CD) (EXCEPT D60/RX70: US, CND)
X-4948-104-1 PANEL ASSY, FRONT (METALLIC)
(EXCEPT GR7: EA3/GR7J)
X-4948-312-1 PANEL ASSY, FRONT (METALLIC) (GR7: EA3/GR7J)
Ref. No. INCORRECT CORRECT
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
NOTE:
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
CND : Canadian
EA3 : Saudi Arabia

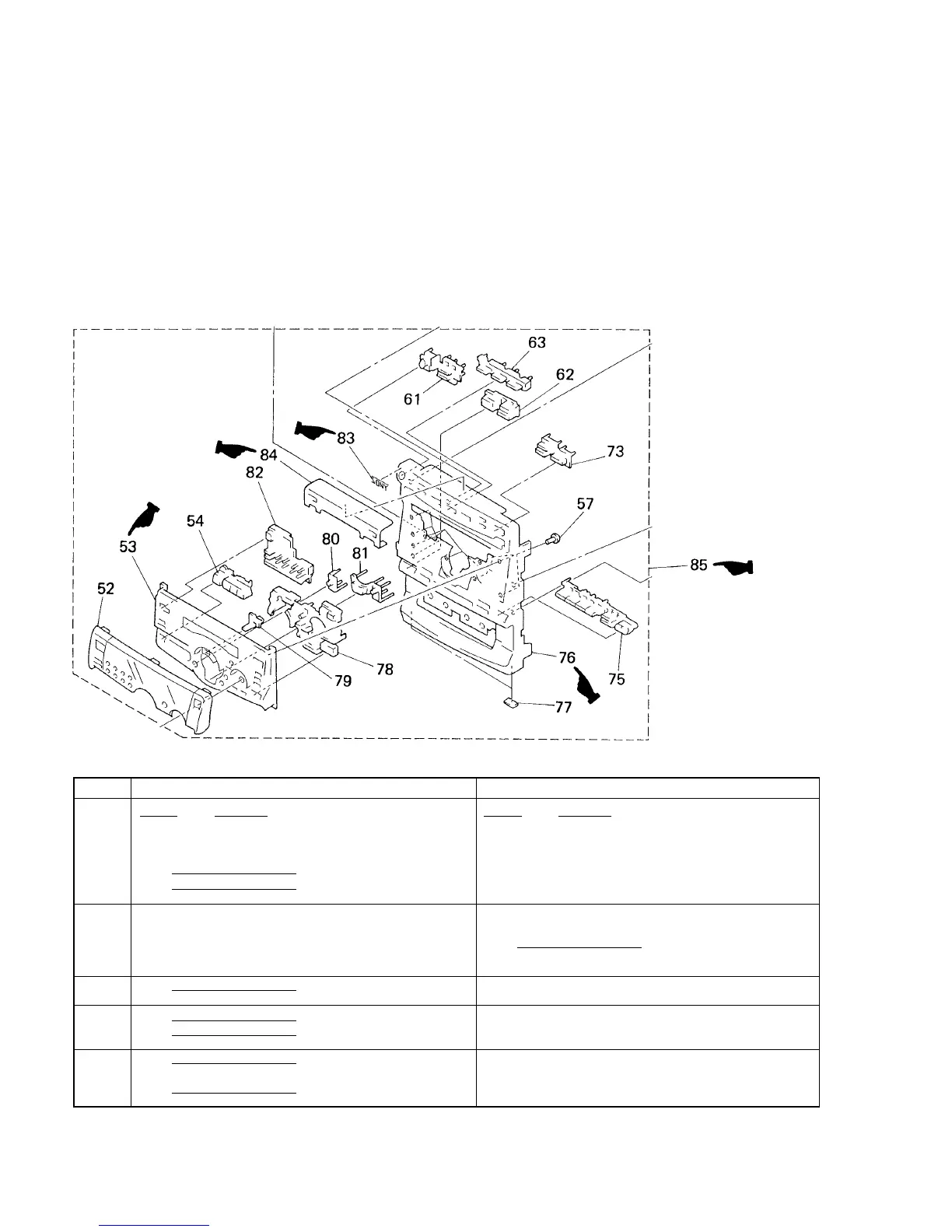

(2) FRONT PANEL SECTION (Service manual page 84, 85)
! : Indicates corrected portion.
Part No. Description
4-986-866-01 PANEL, SUB (BLACK) (D60/GR7: E2, MX, AUS/RX70)
4-986-866-21 PANEL, SUB (METALLIC)
(GR7: E3, EA3, EA4, HK, MY, SAF, SP, TH, TW/GR7J)
4-986-856-01 PANEL, FRONT (BLACK)
(D60/GR7: E2, MX, AUS/RX70)
X-4948-104-1 PANEL ASSY, FRONT (METALLIC)
(GR7: E3, EA3, EA4, HK, MY, SAF, SP, TH, TW/GR7J)
Part No. Description
53
76
83
84
85
