Sony HCD-D60 - 7 Exploded Views

– 83 –
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearrance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
SECTION 7
EXPLODED VIEWS
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-987-937-01 SPRING (B DECK)
2 X-4947-914-1 LID (B) ASSY, CASSETTE (BLACK)
(D60/GR7: E2, MX, AUS/RX70)
2 X-4948-117-1 LID (B) ASSY, CASSETTE (METALLIC)
(GR7: E3, EA3, EA4, HK, MY, SAF, SP, TH, TW/GR7J)
3 X-4947-913-1 LID (A) ASSY, CASSETTE (BLACK)
(D60/GR7: E2, MX, AUS/RX70)
3 X-4948-116-1 LID (A) ASSY, CASSETTE (METALLIC)
(GR7: E3, EA3, EA4, HK, MY, SAF, SP, TH, TW/GR7J)
4 4-987-936-01 SPRING (A DECK)
5 4-986-858-01 PANEL, LOADING (BLACK) (RX70)
5 4-986-858-11 PANEL, LOADING (BLACK) (GR7: E2, MX, AUS)
5 4-986-858-71 PANEL, LOADING (METALLIC)
(GR7: E3, EA3, EA4, HK, MY, SAF, SP, TH, TW/GR7J)
5 4-986-858-91 PANEL, LOADING (BLACK) (D60)
6 4-986-859-01 WINDOW (CD)
7 4-962-708-11 EMBLEM (4-A), SONY
8 4-986-843-01 BUTTON (EJECT) (BLACK)
(D60/GR7: E2, MX, AUS/RX70)
8 4-986-843-21 BUTTON (EJECT) (METALLIC)
(GR7: E3, EA3, EA4, HK, MY, SAF, SP, TH, TW/GR7J)
9 4-987-938-01 SPRING (OPEN A)
10 4-951-620-01 SCREW (2.6X8), +BVTP
11 3-363-099-01 SCREW (CASE 3 TP2) (3X8)
12 3-363-099-41 SCREW (CASE 3 TP2) (3X10)
* 13 4-986-851-11 CASE (BLACK) (D60/GR7: E2, MX, AUS/RX70)
* 13 4-988-767-11 CASE (METALLIC)
(GR7: E3, EA3, EA4, HK, MY, SAF, SP, TH, TW/GR7J)
14 1-773-160-11 WIRE (FLAT TYPE) (21 CORE)
15 1-769-947-11 WIRE (FLAT TYPE) (11 CORE)
16 4-987-939-01 SPRING (OPEN B)
17 3-354-957-01 JOINT (LOCK LEVER)
* 18 3-354-954-01 LEVER (LOCK LEVER R)
* 19 3-354-953-01 LEVER (LOCK LEVER L)
• Abbreviation
AED : Norhern European model
AUS : Australian
CND : Canadian
EA3 : Saudi Arabia
EA4 : Israeli
EE : East European
E2 : 120V AC Area in E model
E3 : 240V AC Area in E model
G : German
HK : Hong Kong
MX : Mexican
MY : Malaysia
SAF : South African
SP : Singapore
TH : Thailand
TW : Taiwan

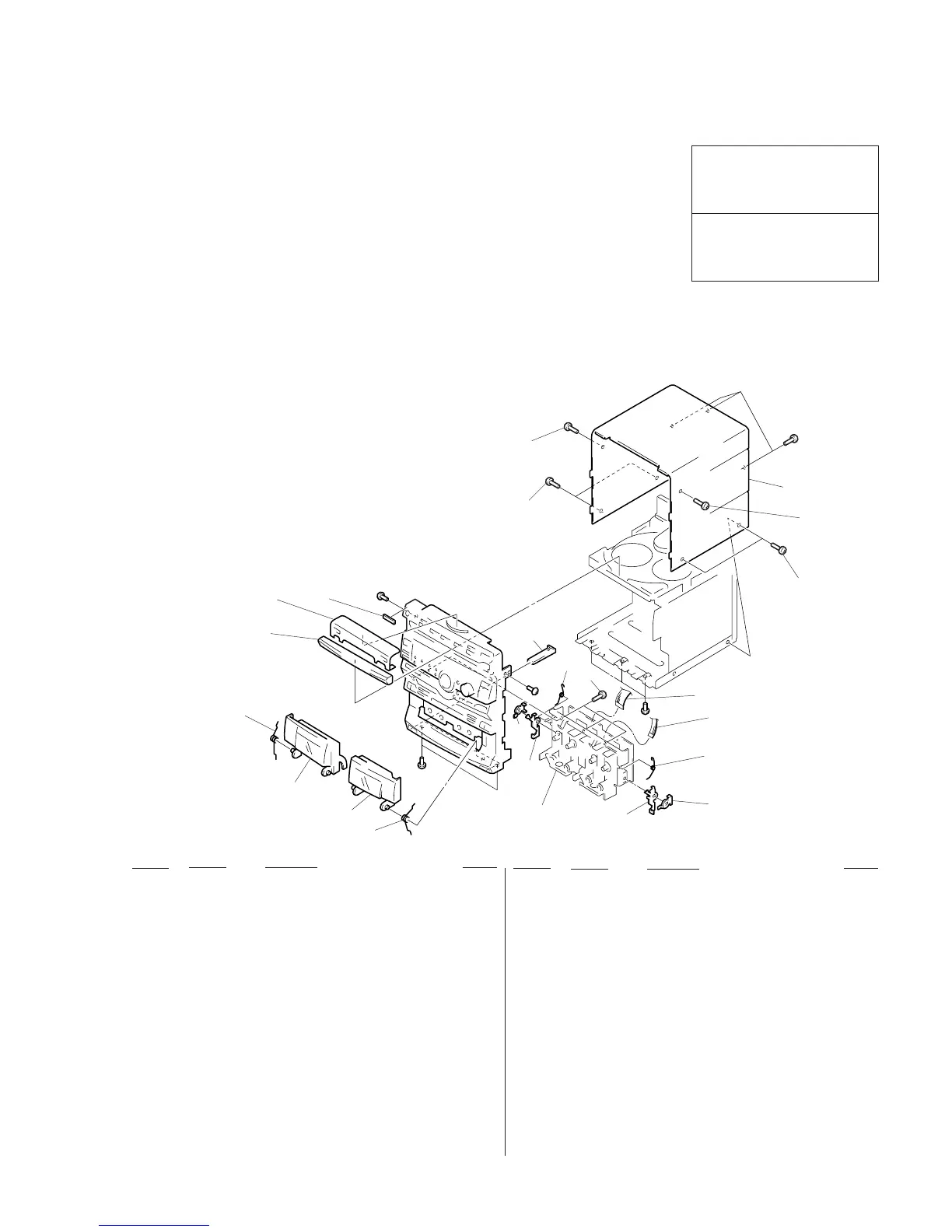

(1) CASE, MD ASS'Y SECTION
#1
#1
#2
#1
#2
12
13
11
11
16
15
14
10
7
2
3
4
6
17
18
19
17
TCM-220WR2
8
9
12
5
1
