Sony HCD-DP1000D - Page 10

10
HCD-DP1000D

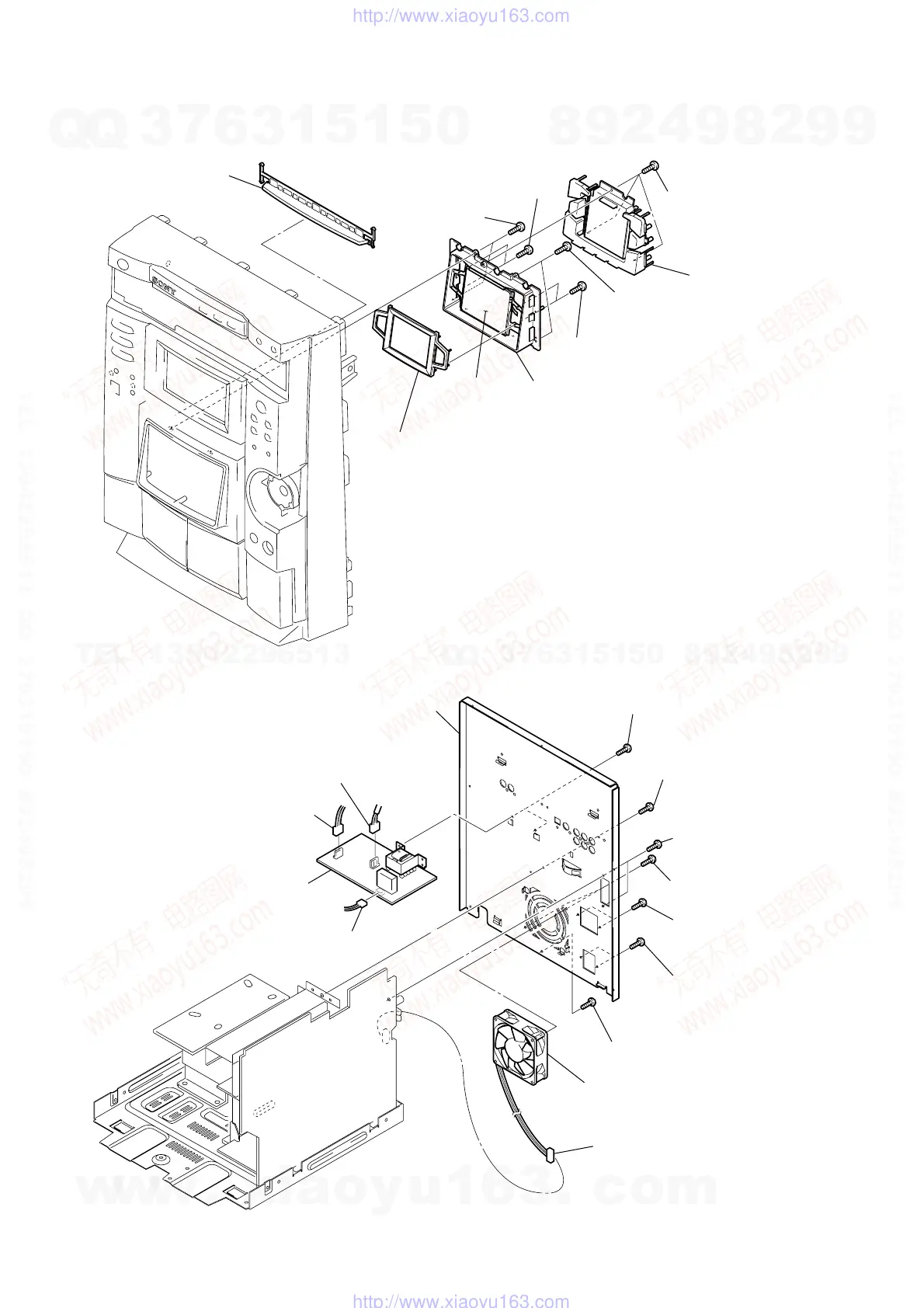

2-6. ESCUTCHEON PAD (WITH TOUCH PAD)
2-7. SUB TRANS BOARD, BACK PANEL, FAN
1 button (edit)
5 two screws
(TPG +P 2
× 8)
6 two screws
(TPG +P 2
× 8)
3 two screws
(+BVTP 2.6
× 8)
2 two screws
(+BVTP 2.6
× 8)
8 three screws
(+BVTP 2.6
× 8)
9 button (DSP
)
7 holder (pad)
4 escutcheon (pad)
touch pad
1 connector (CN901)
0 two screws
(+BVTP 3
× 8)
5 SUB trans board
qa back panel
qd two screws
(+BVTP 3
× 10 )
qs connector (CN104)
qf fan
3 connector
(CN903)
6 two screws
(+BVTP 3
× 8
)
9 rew (+BVTP 3 × 8)
7 two screws
(+BVTP 3
× 8)
8 two screws
(+BVTP 3
× 8)
4 two screws
(+BVTP 3
× 8)
2 connector (CN902)
