Sony HCD-DP1000D - Page 9

9
HCD-DP1000D

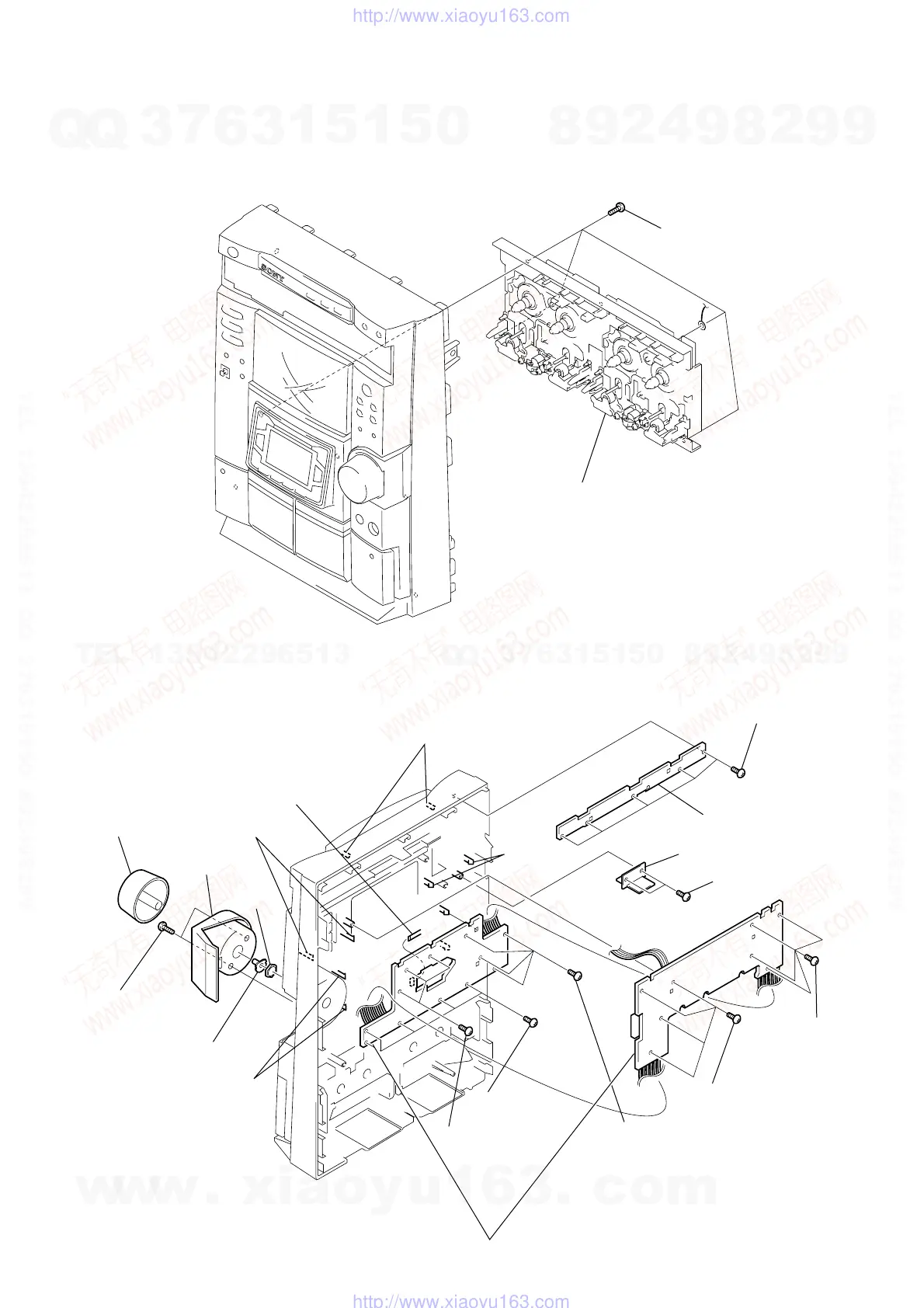

2-4. TAPE MECHANISM DECK (TCM-230AWR41/MWR41)
2-5. CD PANEL BOARD, PANEL BOARD, OPT IN BOARD
1 five screws
(+BVTP 2.6 × 8)
8 four screws
(+BVTP 2.6 × 8
)
9 five screws
(+BVTP 2.6 × 8)
0 three screws
(+BVTP 2.6
× 8)
qd PANEL board
qa five screws
(+BVTP 2.6 × 8)
4 two screws
(+BVTP 2.6
× 8)
qs four screws
(+BVTP 2.6 × 8)
two claws
two claws
qg two screws
(+BVTP 2.6
× 8)
two claws
two claws
2 CD panel board
qh OPT IN board
3 knob (vol)
5 ring (vol)
7 nut
6 cover(vol)
qf flat type wire (CN108)
2 tape mechanism deck
(TCM-230AWR41/MWR41)
1 four screws (+BVTP 2.6 × 8
)
