Sony HCD-DR5 - Front Panel Section 2

– 107 –

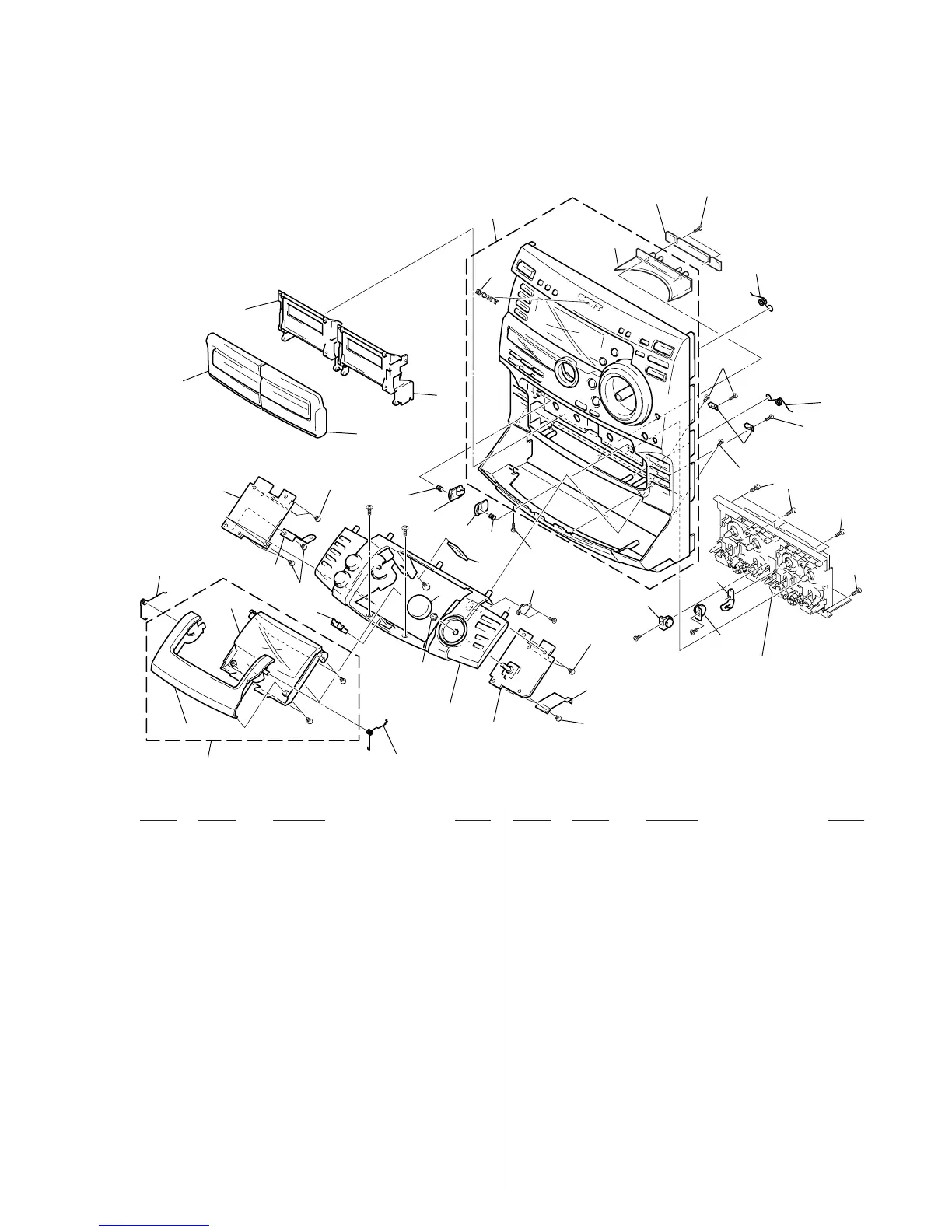

8-3. FRONT PANEL SECTION 2
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
112 X-4950-654-1 LID (A) ASSY, CASSETTE (XB500)
112 X-4950-656-1 LID (A) ASSY, CASSETTE (W5000)
112 X-4950-657-1 LID (A) ASSY, CASSETTE (DR4)
112 X-4950-658-1 LID (A) ASSY, CASSETTE (DR5)
112 X-4950-662-1 LID (A) ASSY, CASSETTE (DR6)
112 X-4950-879-1 LID (A) ASSY, CASSETTE (DR440)
113 X-4950-639-1 LID (B) ASSY, CASSETTE
(DR4/DR5/DR6/W300/W5000/XB500)
113 X-4950-664-1 LID ASSY, CASSETTE (DR440)
114 X-4950-641-1 HOLDER (A) ASSY, CASSETTE
115 X-4950-642-1 HOLDER (B) ASSY, CASSETTE
116 4-210-045-02 DAMPER
* 117 1-672-195-11 LED (PANEL) BOARD
118 4-214-755-01 HOLDER (FULCRUM)
119 4-214-775-01 SPRING, PUSH CATCHER RETURN
120 4-214-760-01 CATCHER (A), PUSH
121 4-214-761-01 CATCHER (B), PUSH
122 4-214-769-01 SPRING (TC-B), TORSION
123 4-214-768-01 SPRING (TC-A), TORSION
124 4-214-759-01 EMBLEM (NO.6), SONY
125 4-951-620-01 SCREW (2.6X8), +BVTP
101 X-4950-635-1 LID ASSY, CD
(DR4/DR5/DR6/W300/W5000/XB500)
101 X-4950-878-1 LID ASSY, CD (DR440)
102 4-214-773-01 SPRING (CD-L), TORSION
103 4-214-774-01 SPRING (CD-R), TORSION
104 4-040-472-01 LATCH, D.C.
* 105 1-672-186-11 CD-L BOARD
* 106 1-672-187-11 CD-R BOARD
* 107 1-672-191-11 DOOR SWITCH BOARD
108 4-214-718-01 KNOB (CD)
(DR4/DR5/DR6/W300/W5000/XB500)
108 4-214-718-11 KNOB (CD)(DR440)
109 X-4950-617-1 PANEL ASSY, FRONT (DR4)
109 X-4950-618-1 PANEL ASSY, FRONT (W300/W5000)
109 X-4950-619-1 PANEL ASSY, FRONT (XB500)
109 X-4950-620-1 PANEL ASSY, FRONT (DR5/DR6)
109 X-4950-876-1 PANEL ASSY, FRONT (DR440)
* 110 3-973-975-21 DAMPER, OIL
111 X-4950-633-1 PANEL ASSY, SUB
(DR4/DR5/DR6/W300/W5000/XB500)
111 X-4950-877-1 PANEL ASSY, SUB (DR440)
112 X-4950-653-1 LID (A) ASSY, CASSETTE (W300)
Supplied with
S701
#5
#4
#4
#6
#5
not supplied
not supplied
not supplied
not supplied
not supplied
101
103
106
111
108
110
112
113
120
107
121
119
119
102
104
125
125
105
not supplied
117
125
122
125
125
125
123
109
114
115
124
125
125
125
118
116
116
#9
#9
#9
125
125
TCM230AWR1
TCM230PWR1
125
