Sony HCD-DR5 - Chassis Section

– 108 –

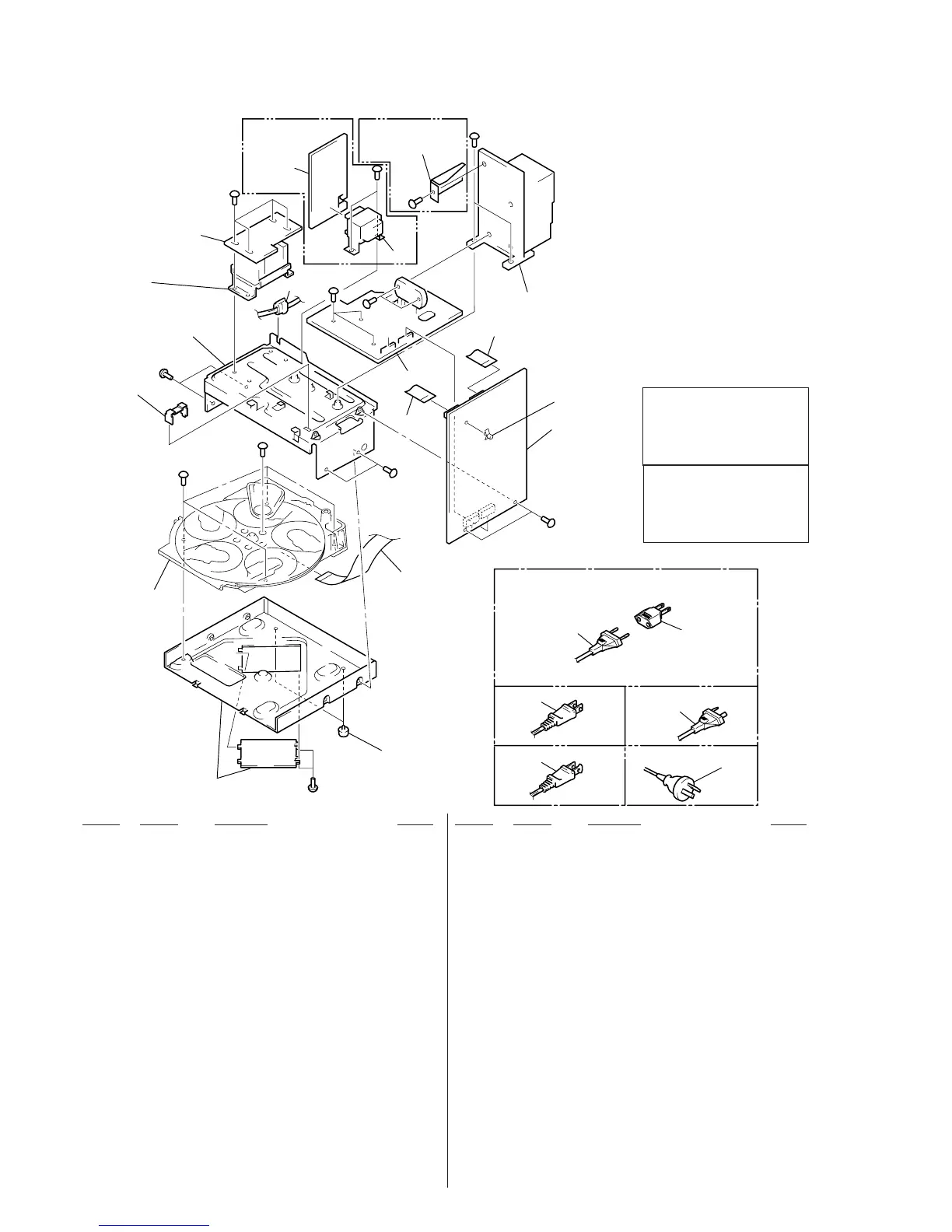

8-4. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 155 A-4417-982-A MAIN BOARD, COMPLETE (DR4:EA)
156 1-790-287-11 WIRE (FLAT TYPE) (19 CORE)
157 X-4941-228-1 FOOT (F22125H-M)
* 158 1-672-432-11 SUB TRANS BOARD (W300/W5000/XB500)
* 159 4-988-533-01 HOLDER, PWB
160 1-773-006-11 WIRE (FLAT TYPE) (15 CORE)
161 1-773-056-11 WIRE (FLAT TYPE) (17 CORE)
!CNP901 1-558-943-41 CORD, POWER (E,MX,TH)
!CNP901 1-575-042-21 CORD, POWER (CND)
!CNP901 1-575-651-21 CORD, POWER (AEP,UK,EA,SP,MY)
!CNP901 1-696-845-31 CORD, POWER (AUS)
!CNP901 1-783-531-31 CORD, POWER (US)
!CNP901 1-783-941-31 CORD, POWER (AR)
!T901 1-433-615-11 TRANSFORMER, POWER (W300/W5000)
!T901 1-433-616-11 TRANSFORMER, POWER (XB500)
!T951 1-433-602-11 TRANSFORMER, POWER (W300/W5000)
!T951 1-433-603-11 TRANSFORMER, POWER (XB500)
!T951 1-433-604-11 TRANSFORMER, POWER (DR4/DR440)
!T951 1-433-606-11 TRANSFORMER, POWER (DR5)
!T951 1-433-611-11 TRANSFORMER, POWER (DR6)
* 151 1-672-430-11 TRANS BOARD (WA300/W5000/XB500)
* 151 1-672-431-11 TRANS BOARD (DR4/DR5/DR6/DR440)
152 1-569-008-21 ADAPTOR, CONVERSION 2P (EA,SP,MY)
153 3-703-244-00 BUSHING (FBS001), CORD (EXCEPT E,TH,MX)
153 4-966-266-01 BUSHING (S) (FBS002), CORD (E,TH,MX)
* 154 A-4417-503-A PA BOARD, COMPLETE (W300)
* 154 A-4417-512-A PA BOARD, COMPLETE (XB500)
* 154 A-4417-537-A PA BOARD, COMPLETE (DR4/DR440)
* 154 A-4417-565-A PA BOARD, COMPLETE (DR6)
* 154 A-4417-572-A PA BOARD, COMPLETE (DR5)
* 154 A-4419-648-A PA BOARD, COMPLETE (W5000)
* 155 A-4417-496-A MAIN BOARD, COMPLETE (W300/W5000)
* 155 A-4417-507-A MAIN BOARD, COMPLETE (XB500)
* 155 A-4417-516-A MAIN BOARD, COMPLETE
(DR4:E,TH,AR,MX/DR440)
* 155 A-4417-562-A MAIN BOARD, COMPLETE (DR6:E,AR,MX)
* 155 A-4417-567-A MAIN BOARD, COMPLETE (DR5:E,AR,MX)
* 155 A-4417-970-A MAIN BOARD, COMPLETE (DR6:SP,MY)
* 155 A-4417-974-A MAIN BOARD, COMPLETE (DR5:SP)
* 155 A-4417-988-A MAIN BOARD, COMPLETE (DR4:SP,AUS)
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
(EA,SP,MY)
(AEP,UK,EA,SP,MY)
(AUS)
(AR)(E,MX,TH)
(US,CND)
151
159
157
156
155
160
154
161
153
158
#8
#3
#3
#3
#3
#7
#3
CNP901
CNP901
CNP901
CNP901
#3
#3
T951
not supplied
not supplied
not supplied
not supplied
XB500
W300/W5000XB500
not supplied
CDM37M-5BD32L
152
CNP901
#3
T901
#2
#3
