Sony HCD-DX375 - I;O Board, Tuner; SPEAKER Board, D.C. Fan

18
HCD-DX375

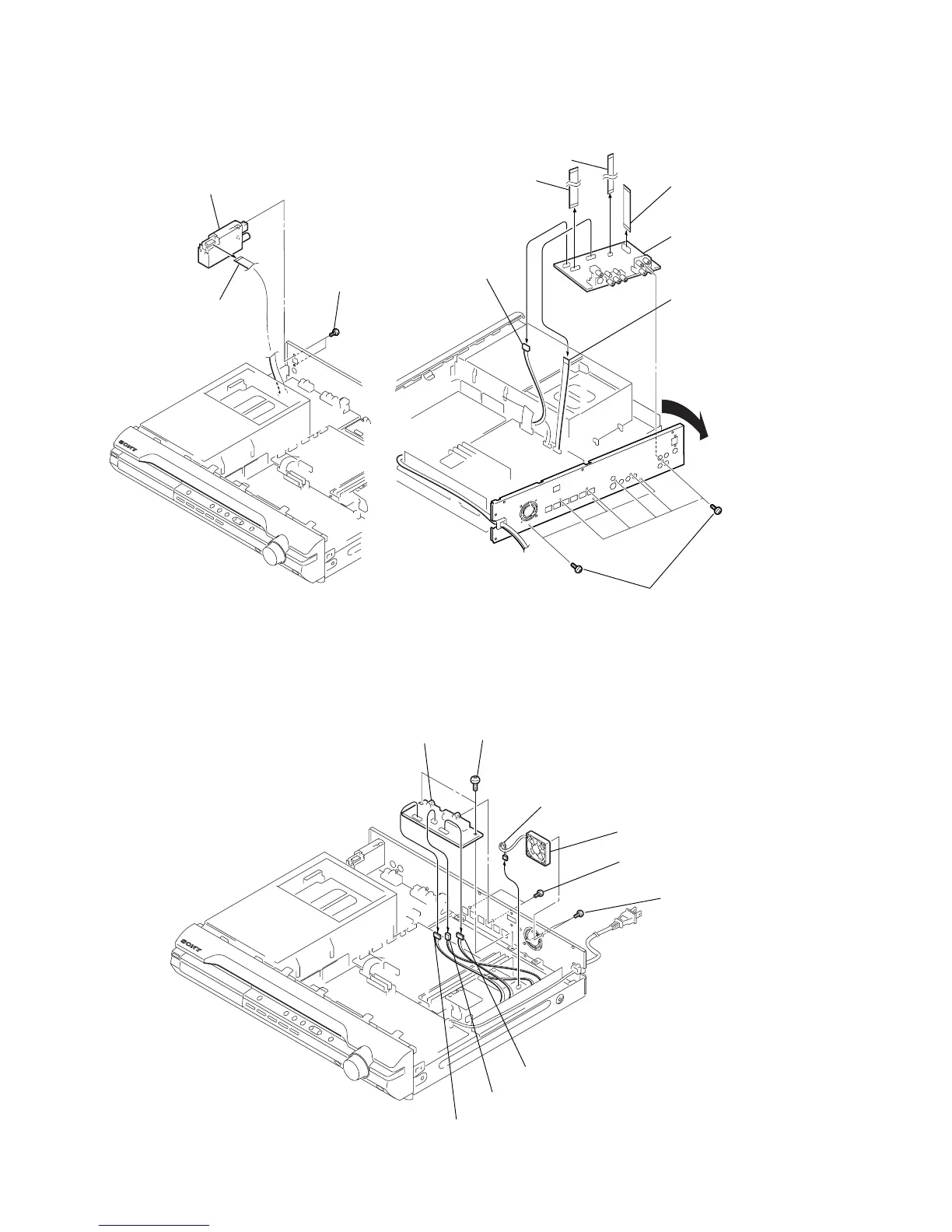

3-6. I/O BOARD, TUNER
3-7. SPEAKER BOARD, D.C. FAN
3 tuner
1 two screws
(+BVTT 3
× 6)
2 wire (flat type)
qa I/O board
8 wire (flat type)11core(CN201)
q; Open the
back panel.
7 wire (flat type) 5core(CN202)
6 wire (flat type)
15core(CN311)
5 wire (flat type)
9core(CN203)
4 connector
(CN312)
9 eight screws
(+BVTP 3
× 8)
3 D.C. fan
2 two screws
(+BVTT 4
× 8
)
8 two screws
(+BVTP 3
× 8)
1 connector
(CN3000)
4 connector
(CN303)
5 connector
(CN302)
6 connector
(CN301)
7 two screws
(+BV3)
9 SPEAKER board
