HCD-DX375
Fix the capacitors with adhesive agent as follows
Fixing the capacitors with adhesive agent is required by the safety regulation.
Be sure to fix the capacitors with adhesive agent when part or circuit board is replaced.

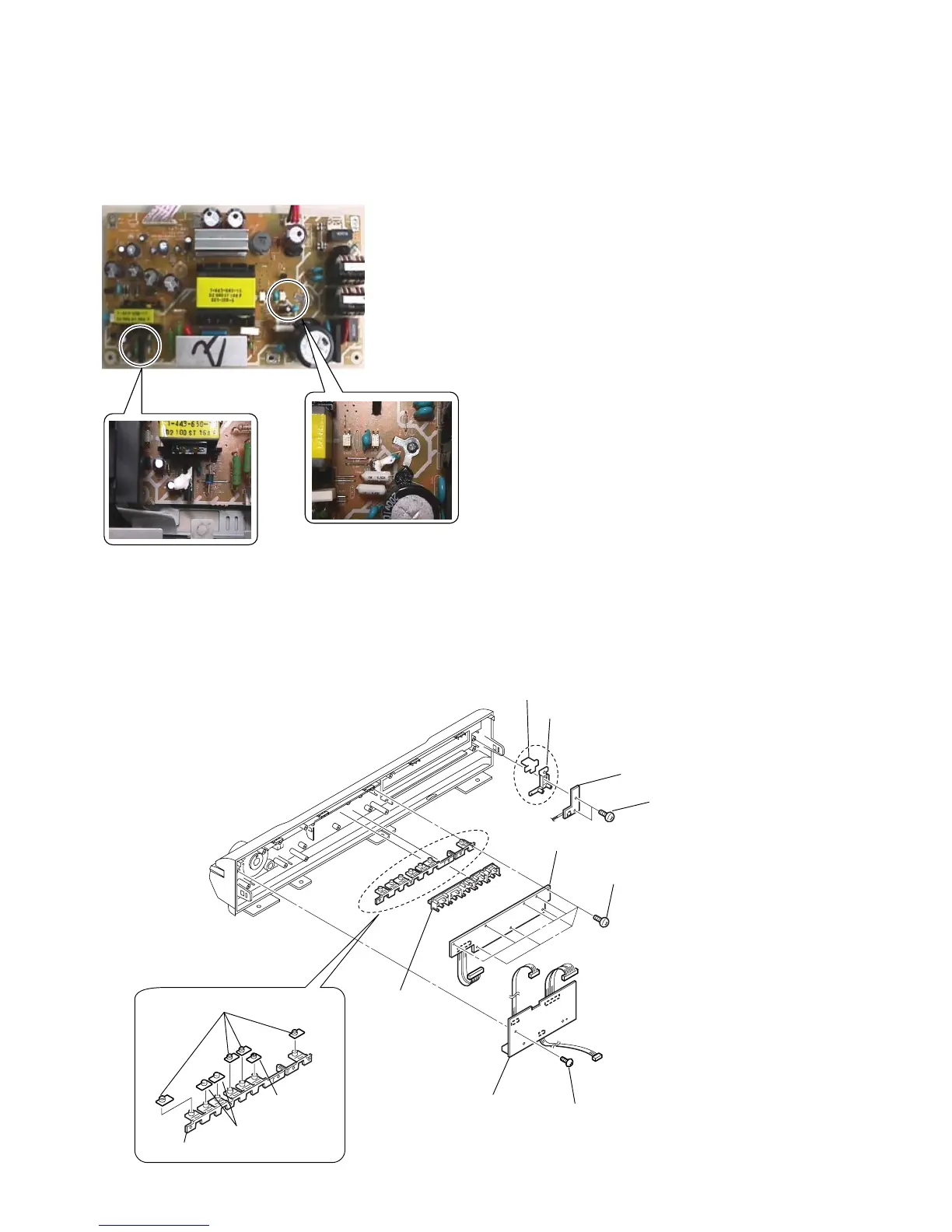

POWER BOARD
JACK board
CAP (FUNK)
CAP (PLAY)
CAP (AMS)
BUTTON BASE (PLAY)
screws (+BVTP 2.6)
LED board
button (disk),
indicator (disk)
screw (+BVTP 2.6)
s crews
(+BVTP 2.6)
SW board
BUTTON BASE (POWER)
CAP (POWER)
Precaution when replacing the CAP
Please apply the adhesive agent to the BUTTON BASE (PLAY) when replacing the CAP (PLAY) or CAP (FUNC) or CAP (AMS).
Please apply the adhesive agent to the BUTTON BASE (POWER) when replacing the CAP (POWER).
