HCD-DZ119/DZ410
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

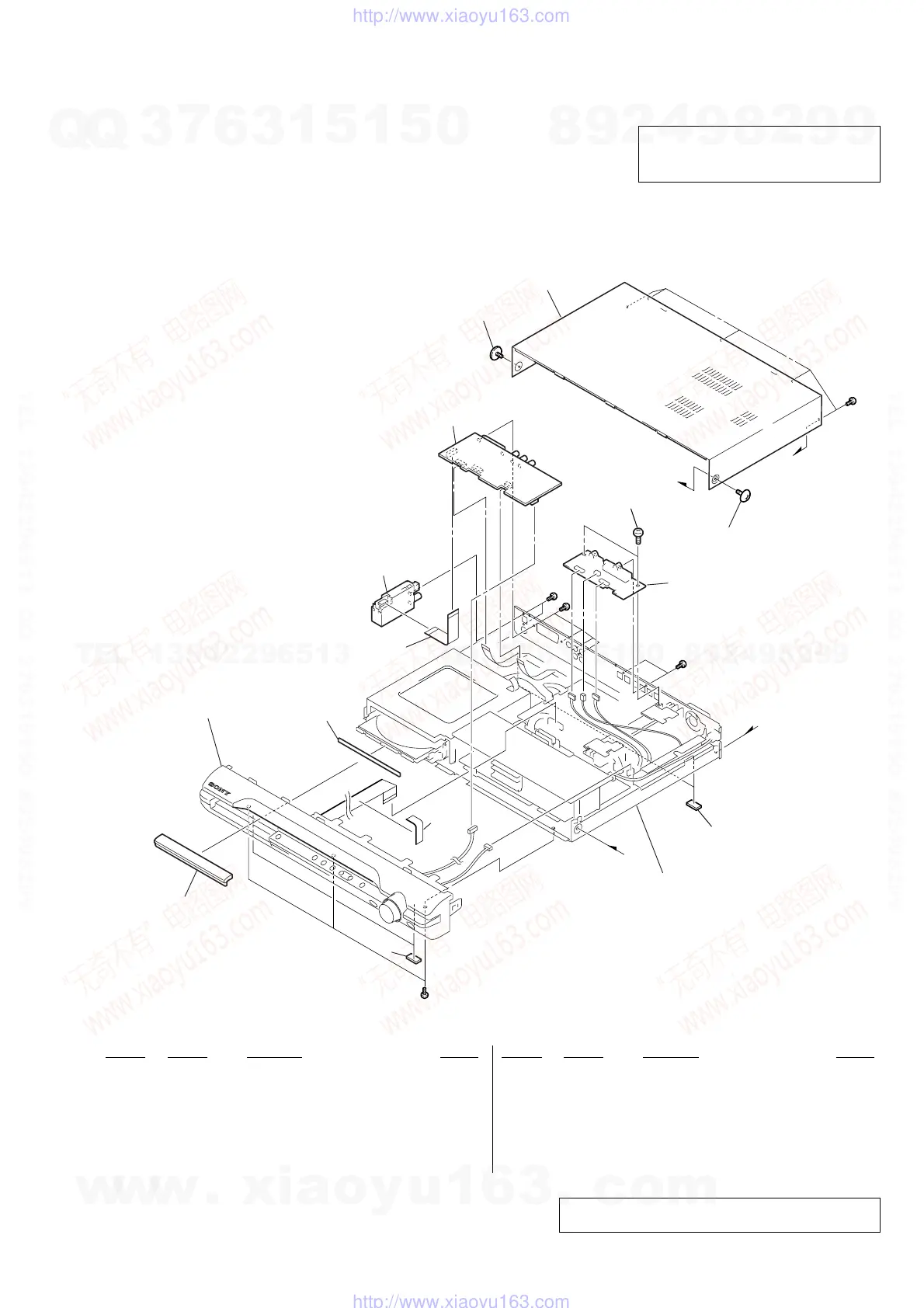

7-1. OVERALL SECTION
1 2-652-972-01 PANEL, LOADING
2 4-232-478-41 FOOT
3 1-693-700-11 TUNER (FM/AM) (TM10SCE)
4 A-1146-119-A I/O SCART BOARD, COMPLETE (DZ410)
4 A-1167-326-A I/O SCART BOARD, COMPLETE (DZ119)
5 3-077-331-21 +BV3 (3-CR)
6 3-363-099-51 SCREW (CASE 3 TP2)
7 2-653-932-01 CASE
8 1-828-962-11 WIRE (FLAT TYPE)(11 CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-871-01 SCREW +BVTT 3X6 (S)
not supplied
not supplied
not
supplied
#1
#1
#3
front panel section
b
b
a
a
6
7
6
1
3
2
5
#1
5
4
chassis section
8
2
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
