HCD-DZ119/DZ410
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 2-652-983-01 KNOB (VOL)
52 2-652-982-01 RING (VOL)
53 2-652-981-01 ORNAMENT (RIGHT)
54 2-652-980-01 ORNAMENT (PLAY)
55 2-652-984-01 WINDOW, INDICATION
56 2-652-979-01 ORNAMENT (POWER)
57 2-661-952-01 SHEET (WINDOW), ADHESIVE
58 3-943-995-31 EMBLEM (NO.5), SONY (DZ410)
59 2-652-977-01 BUTTON BASE (POWER)(DZ410)
59 2-653-929-01 BUTTON (POWER)(DZ119)
60 2-654-345-41 PANEL, FRONT (DZ119)
60 2-661-871-31 PANEL, FRONT (SB)(DZ410)
61 3-087-053-01 +BVTP2.6 (3CR)
62 2-652-978-01 BUTTON BASE (PLAY)(DZ410)
62 2-653-930-01 BUTTON (PLAY)(DZ119)
63 A-1144-767-A JACK BOARD, COMPLETE (DZ410)
63 A-1167-323-A JACK BOARD, COMPLETE (DZ119)
64 A-1144-764-A FL BOARD, COMPLETE (DZ410)
64 A-1167-320-A FL BOARD, COMPLETE (DZ119)
65 1-828-384-11 WIRE (FLAT TYPE)(23 CORE)
66 1-828-325-11 WIRE (FLAT TYPE)(13 CORE)
67 2-652-973-01 CAP (POWER)(DZ410)
68 2-652-974-01 CAP (PLAY)(DZ410)
69 2-652-975-01 CAP (FUNC)(DZ410)
70 2-652-976-01 CAP (AMS)(DZ410)
71 3-531-576-01 RIVET

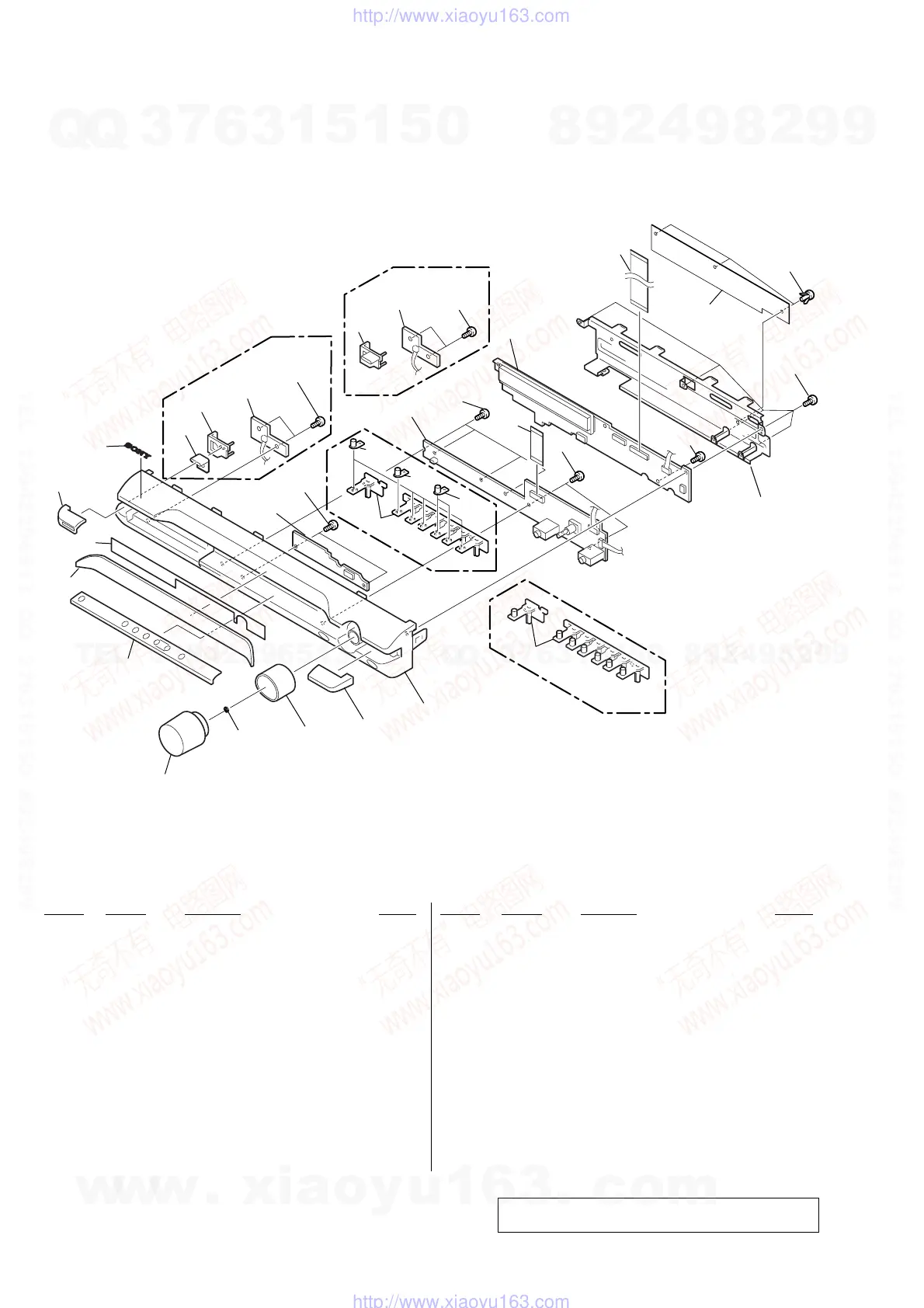

7-2. FRONT PANEL SECTION
61
61
61
64
61
63
51
54
55
52
53
60
not
supplied
not
supplied
including
S800
56
57
59
67
58
not
supplied
61
61
66
65
61
not
supplied
59
DZ119
DZ119
DZ410
DZ410
not
supplied
71
68
70
62
62
69
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
